Fully Automatic Wire Processing Machines

SDFA-C2-2

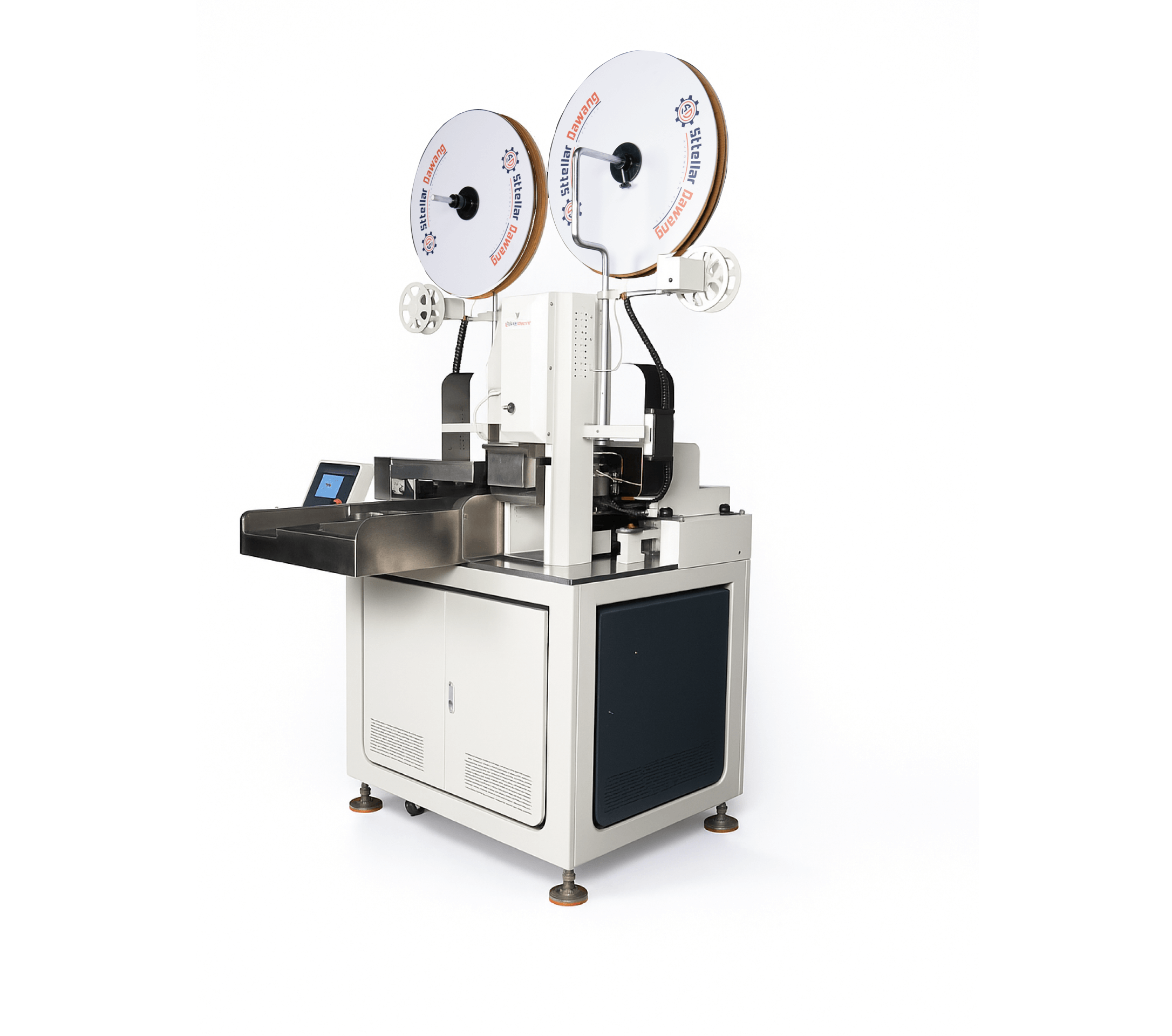

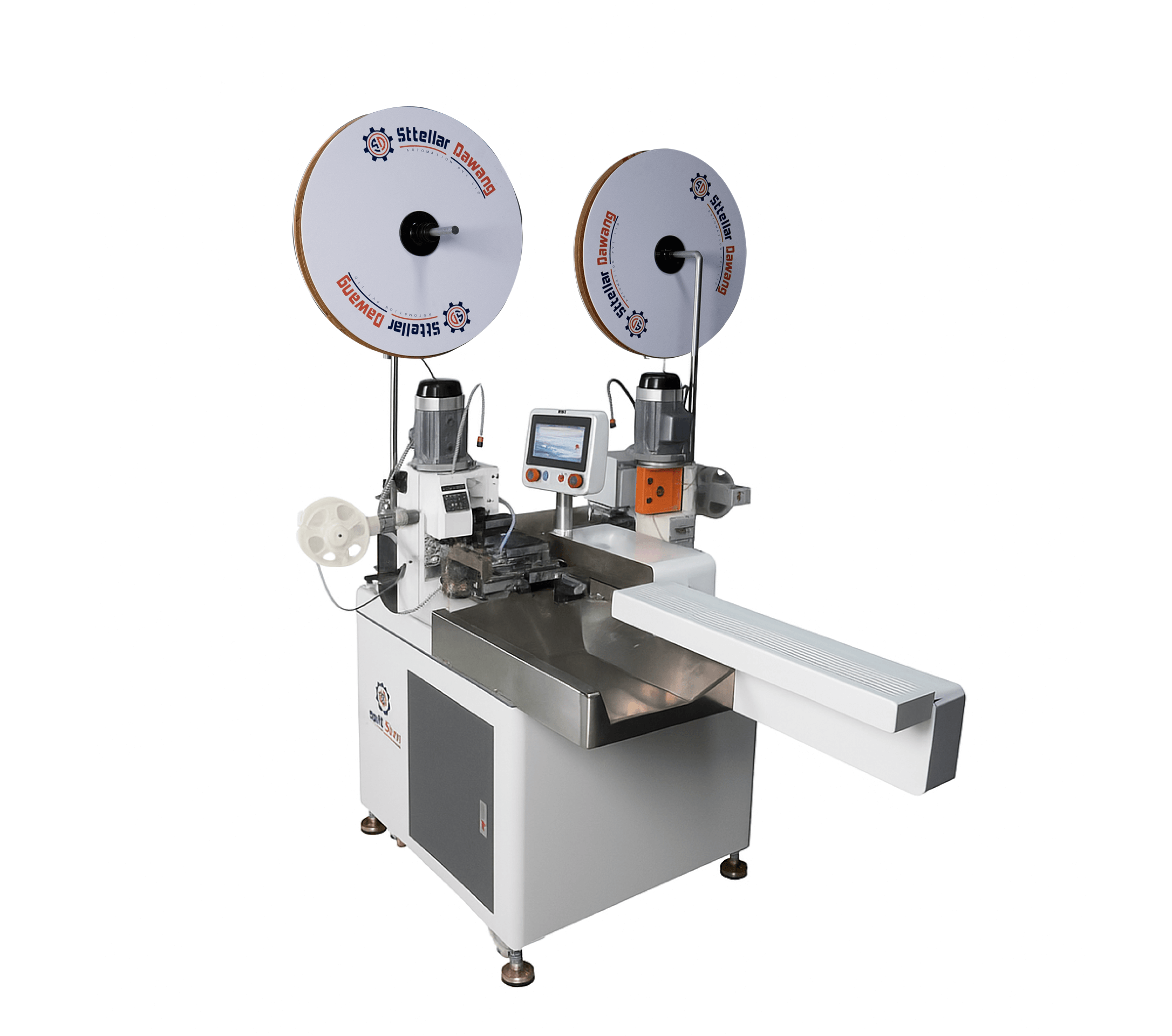

Fully automatic Wire Cutting & Crimping Machine with two side Waterproof Sealing Station, two head stripping seal inserting machine (0.3 to 2.5 sq mm)

Fully automatic Wire Cutting & Crimping Machine with two side Waterproof Sealing Station, two head stripping seal inserting machine (0.3 to 2.5 sq mm)

High-speed fully automatic machine for two-end terminal crimping with Superseal insertion – precise, reliable, and ideal for automotive & industrial use.

  • Fully automatic machine for cutting, stripping, seal insertion, and two-end crimping.

  • High-speed, servo-controlled, multi-terminal compatible, with sensors and durable build.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

All-in-One Processing

All-in-One Processing

Cutting, stripping, seal insertion, and two-end crimping.

High-Speed Output

High-Speed Output

Ensures faster production with consistent quality.

Servo Precision

Servo Precision

Accurate control and multi-terminal compatibility.

Reliable Design

Reliable Design

Equipped with sensors and a durable build for long-term use.

Technical Specifications

  • Model

    SDFA-C2-2

  • Functions

    Cutting, Stripping, Two-End Crimping, Superseal Wire Seal Insertion

  • Available Wire Size

    0.3 – 2.5 mm²

  • Cutting tolerance

    ±0.5mm + L*0.2%

  • Stripping Length

    R<10mm; L<15mm

  • Cutting Length

    45–9999 mm

  • Crimping strength

    2T Ultra-silence

  • Seal Insertion

    Automatic Superseal wire seal feeding & insertion

  • Detection System

    Seal presence detection, Crimp force monitoring, and Missing wire detection

  • Control

    MSP430E micro-controller, 165NA/MIPS woking mode

  • Production Rate

    ~2000–2200 pcs/hour

  • Air Connection

    0.5–0.7 MPa

  • Power Supply

    AC 220V / 50Hz

  • Power Consumption

    3.5KW

  • Weight

    420 kg

  • Dimensions

    1300 × 800 × 1600 mm

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
