Fully Automatic Wire Processing Machines

SDFA-C1STTH

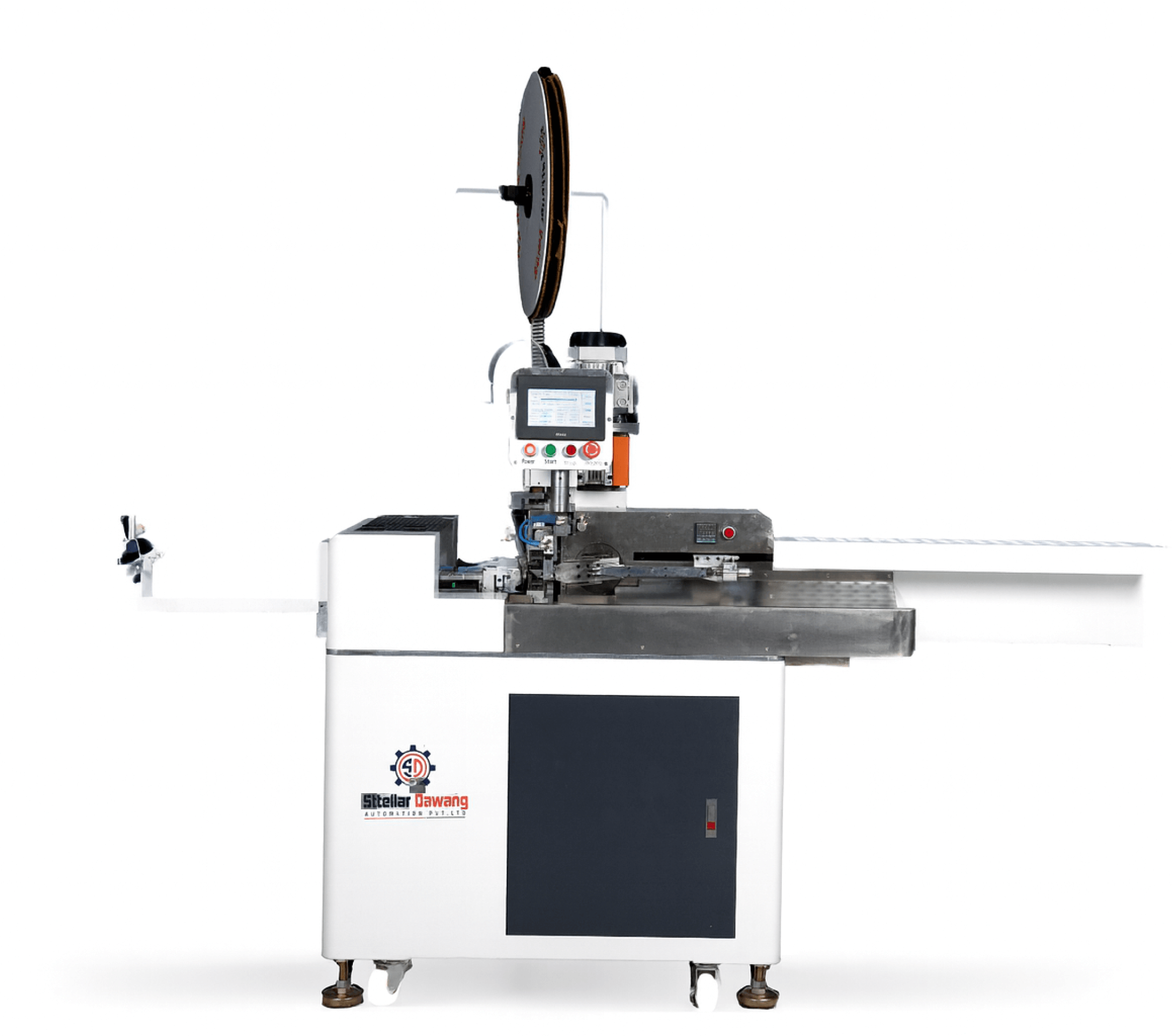

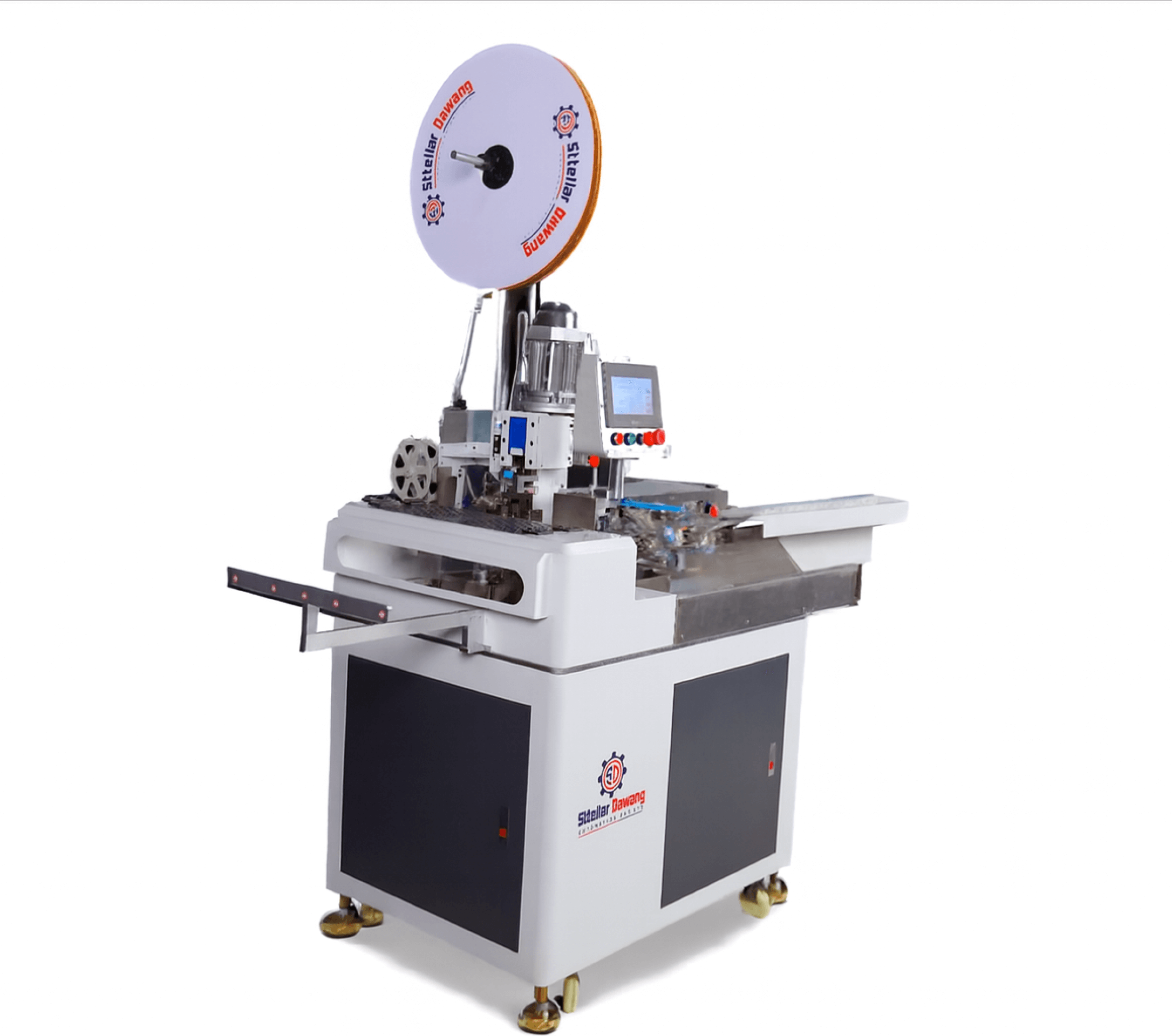

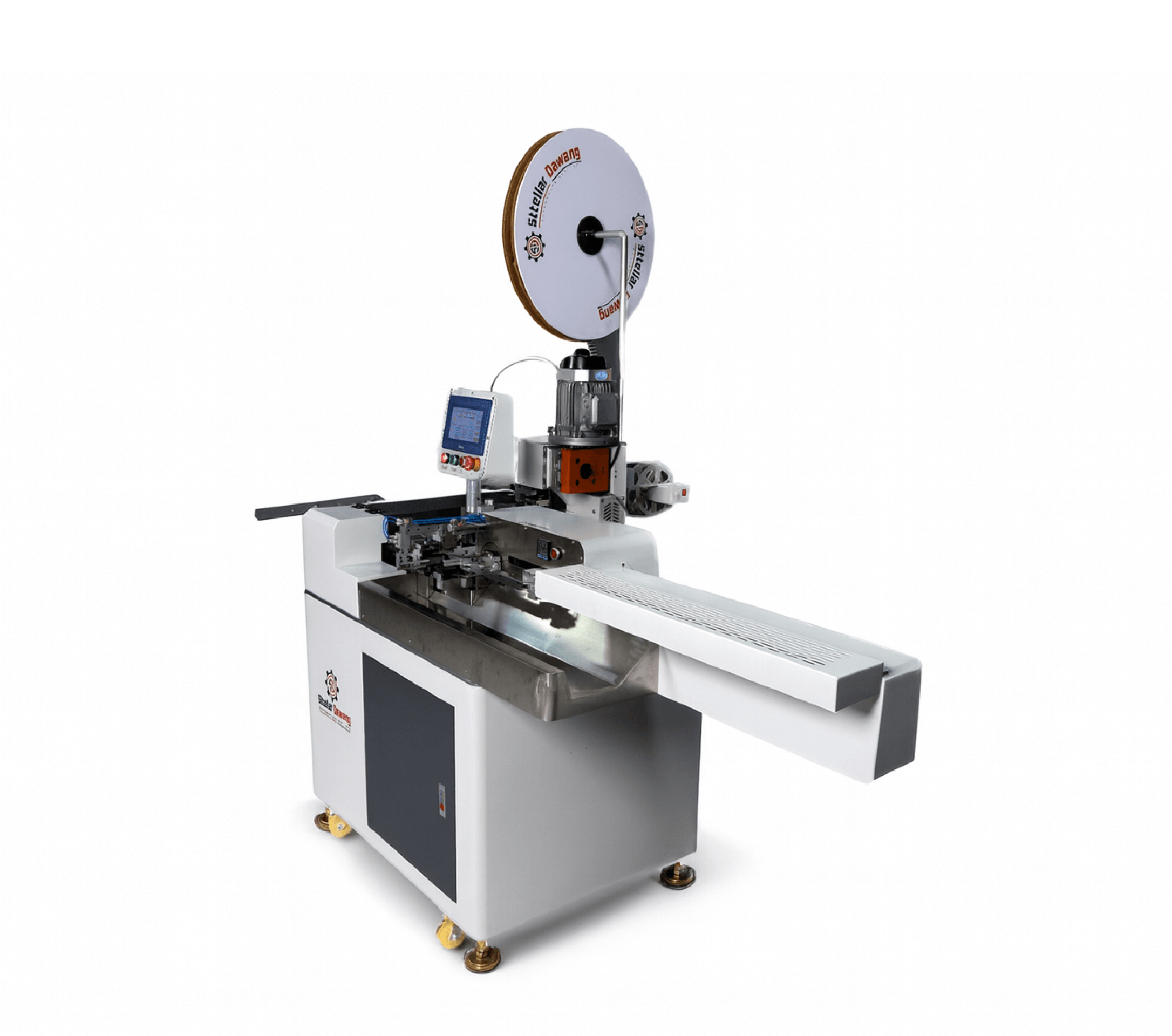

Fully Automatic Cable Cutting, Stripping, One Side Crimping, and Second Side Stripping, Twisting & Tinning Machine (0.3 to 2.5 sq mm)

Fully Automatic Cable Cutting, Stripping, One Side Crimping, and Second Side Stripping, Twisting & Tinning Machine (0.3 to 2.5 sq mm)

Fully automatic one wires cutting single head crimping tinning machine Cutting / stripping / single end crimping / single end twisting & tinning Category: Cut & Strip & Crimp Tags: One core small wire, Terminal crimping machine

  • Fully automatic machine for wire cutting, stripping, twisting, tinning, and crimping – processes 1 wire at once (up to 3000 pcs/hr).

  • Equipped with servo precision, dual twisting modes, touch display, and support for multiple applicators.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

All-in-One Automation

All-in-One Automation

Cutting, stripping, twisting, tinning, and crimping.

Efficient Output

Efficient Output

Processes up to 3000 pcs/hr.

High Accuracy

High Accuracy

Servo precision with dual twisting modes.

Smart & Flexible

Smart & Flexible

Touch display and multiple applicator support.

Technical Specifications

  • Model

    SDFA-C1STTH

  • Available Wire Size

    0.3 – 2.5 mm²

  • Functions

    Cutting / Stripping / Single-End Crimping / Single-End Twisting & Tinning

  • Crimping Force

    2T

  • Cutting Length

    12 – 99,999 mm

  • Stripping Length

    0.1 – 15 mm (customizable)

  • Tinning Length

    0.1 – 10 mm (customizable)

  • Detection System

    Wire absence, terminal presence, crimp force monitoring

  • Reference Efficiency

    3000 – 4000 wires/hour (100 mm length, Single-end stripping & crimping)

  • Drive System

    Servo motors

  • Max. Wire Diameter

    Ø 6.0 mm

  • Power Supply

    AC 220V / 50Hz

  • Air Pressure

    0.5 – 0.6 MPa

  • Dimensions

    1,210 × 770 × 1,370 mm

  • Weight

    450 kg

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
