Fully Automatic Wire Processing Machines

SDFA-5C1SHT

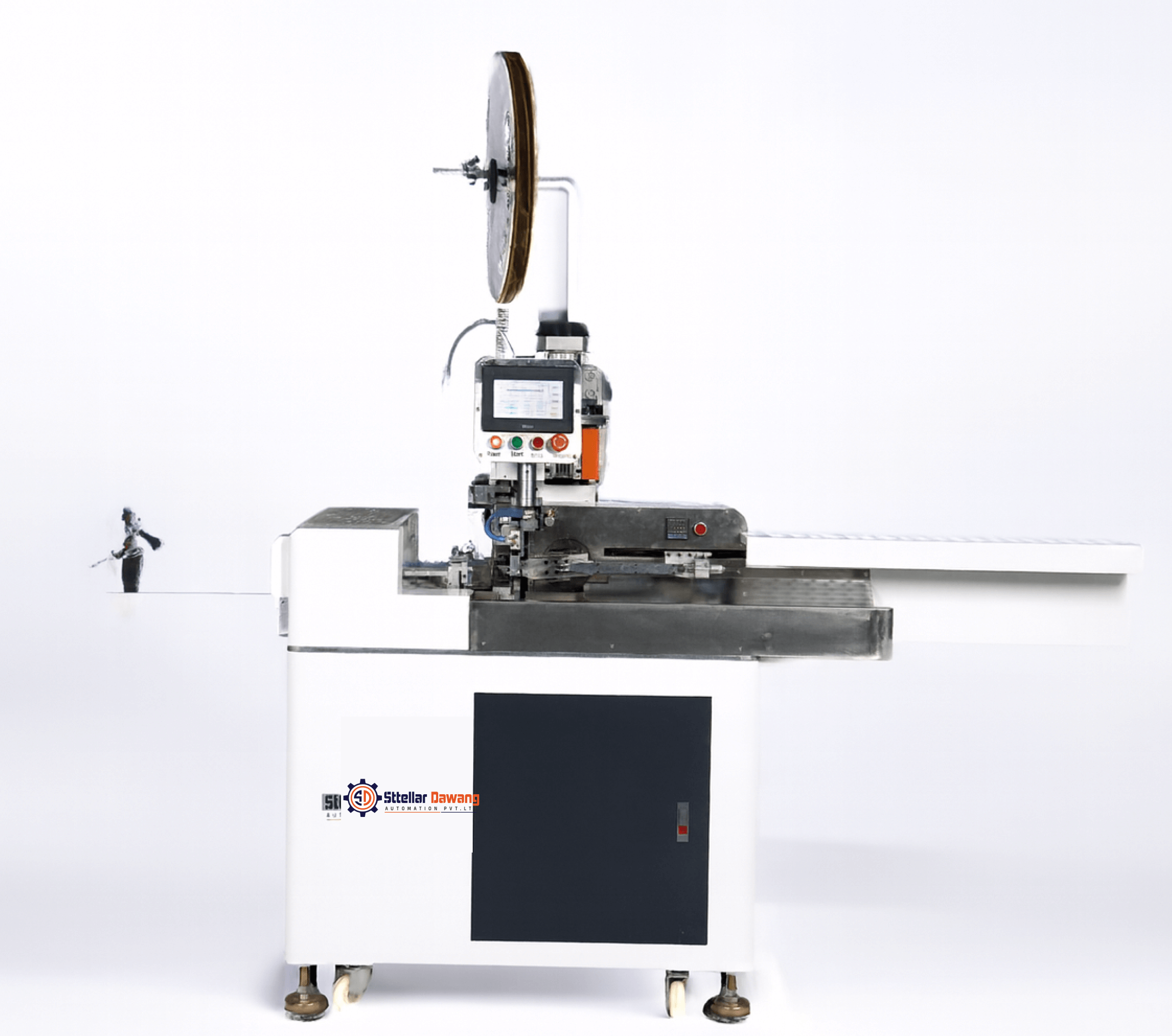

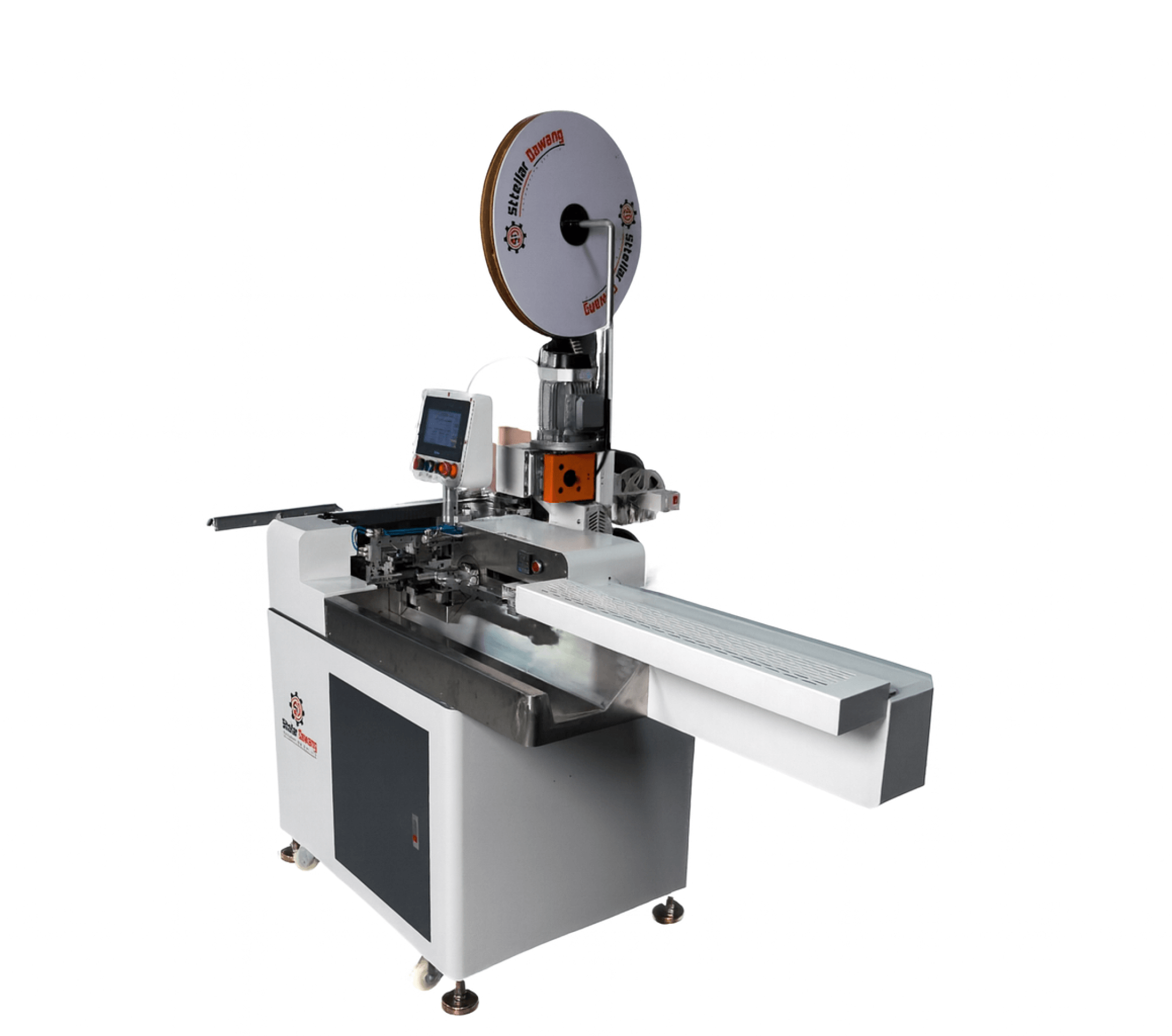

Fully automatic Five Wire cutting and One side Crimping second Side Twisting & Tinning Machine (0.3 to 2.5 sq mm)

Fully automatic Five Wire cutting and One side Crimping second Side Twisting & Tinning Machine (0.3 to 2.5 sq mm)

Fully automatic machine designed for cutting, stripping, single-end crimping, twisting, and tinning of up to five wires simultaneously. It features a stuck-type crimping applicator for quick and easy changes, Mitsubishi servo-driven precision cutting system, and a user-friendly English touch-screen interface. This high-speed solution significantly improves productivity, achieving up to 8,000 pcs/hour, while reducing labor costs and increasing precision.

  • High-speed five-wire processing (up to 8,000 pcs/h) with quick change system, dual twisting options, and precision servo control.

  • Equipped with full-color English touch display, versatile applicator support, and durable low-noise build.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

High-Speed & Flexible

High-Speed & Flexible

Processes five wires simultaneously at up to 8,000 pcs/h with quick change system.

Precision Control

Precision Control

Mitsubishi servo with double guide screw rod for accuracy.

Smart Operation

Smart Operation

Dual twisting modes, adjustable speed, and full-color English touch display.

Durable & Versatile

Durable & Versatile

Supports multiple applicators, built with anti-corrosive materials for long service life.

Technical Specifications

  • Model

    SDFA-5C1SHT

  • Functions

    Cutting / Stripping / Single-end Crimping / Twisting & Tinning

  • Applicable Wire Size

    0.3 – 2.5 mm²

  • Crimping strength

    2T

  • Control System

    Servo Motor + PLC + Touchscreen HMI

  • Cutting Length

    12 – 99,999 mm

  • Stripping Length

    0.1 – 15 mm (customizable)

  • Tinning Length

    0.1 – 10 mm (customizable)

  • Capacity

    6,500 – 8,000 pcs/h (five wires processed at once)

  • Wire Capacity

    Up to 5 wires per cycle

  • Automatic Grade

    Automatic

  • Power Supply

    220V, 50/60 Hz

  • Power Consumption

    3.5 kW

  • Air Connection

    0.5–0.7 MPa

  • Control

    Servo

  • Dimensions

    1210 × 770 × 1370 mm

  • Weight

    450 kg

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
