Fully Automatic Wire Processing Machines

SDFA-5BST

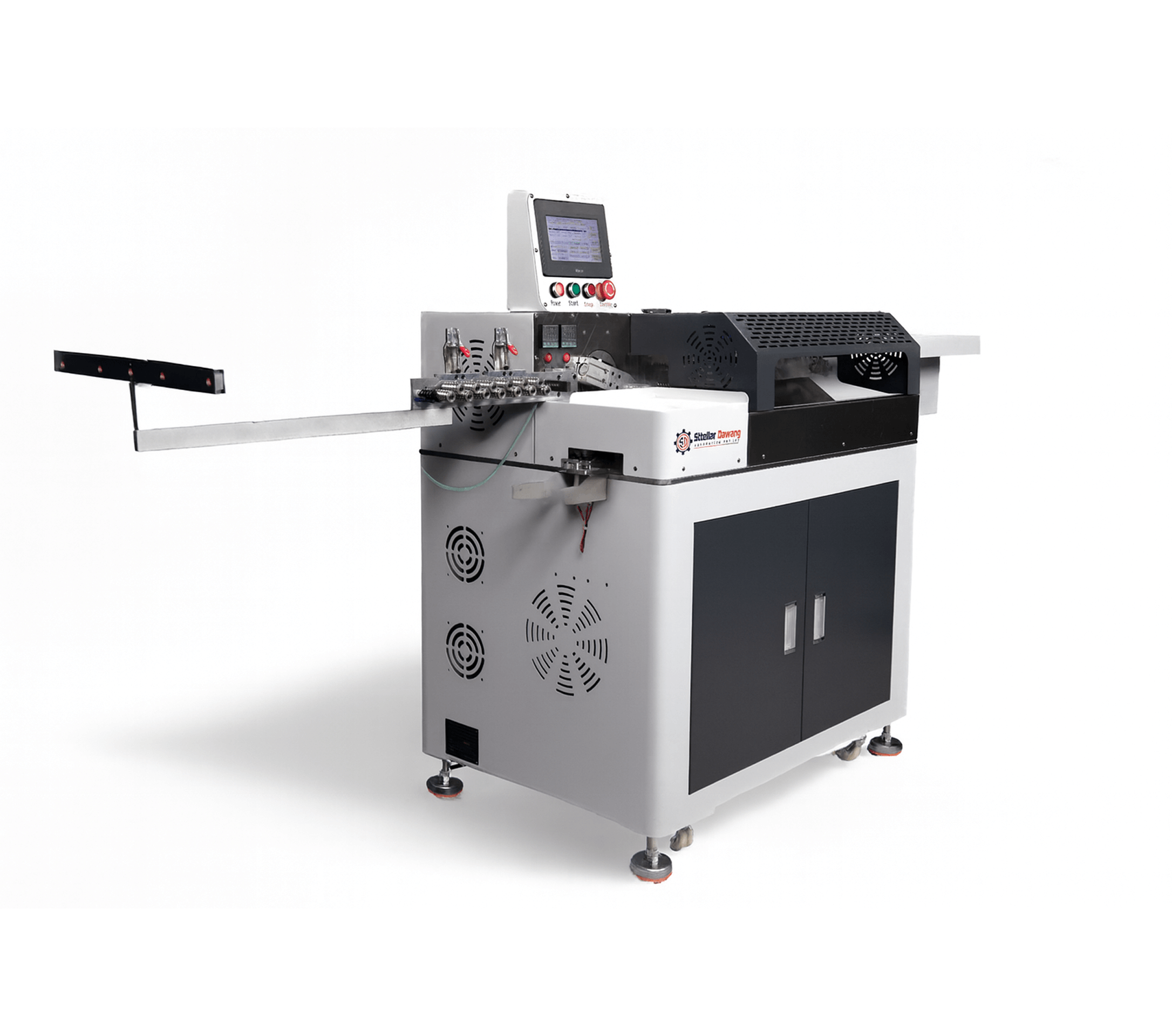

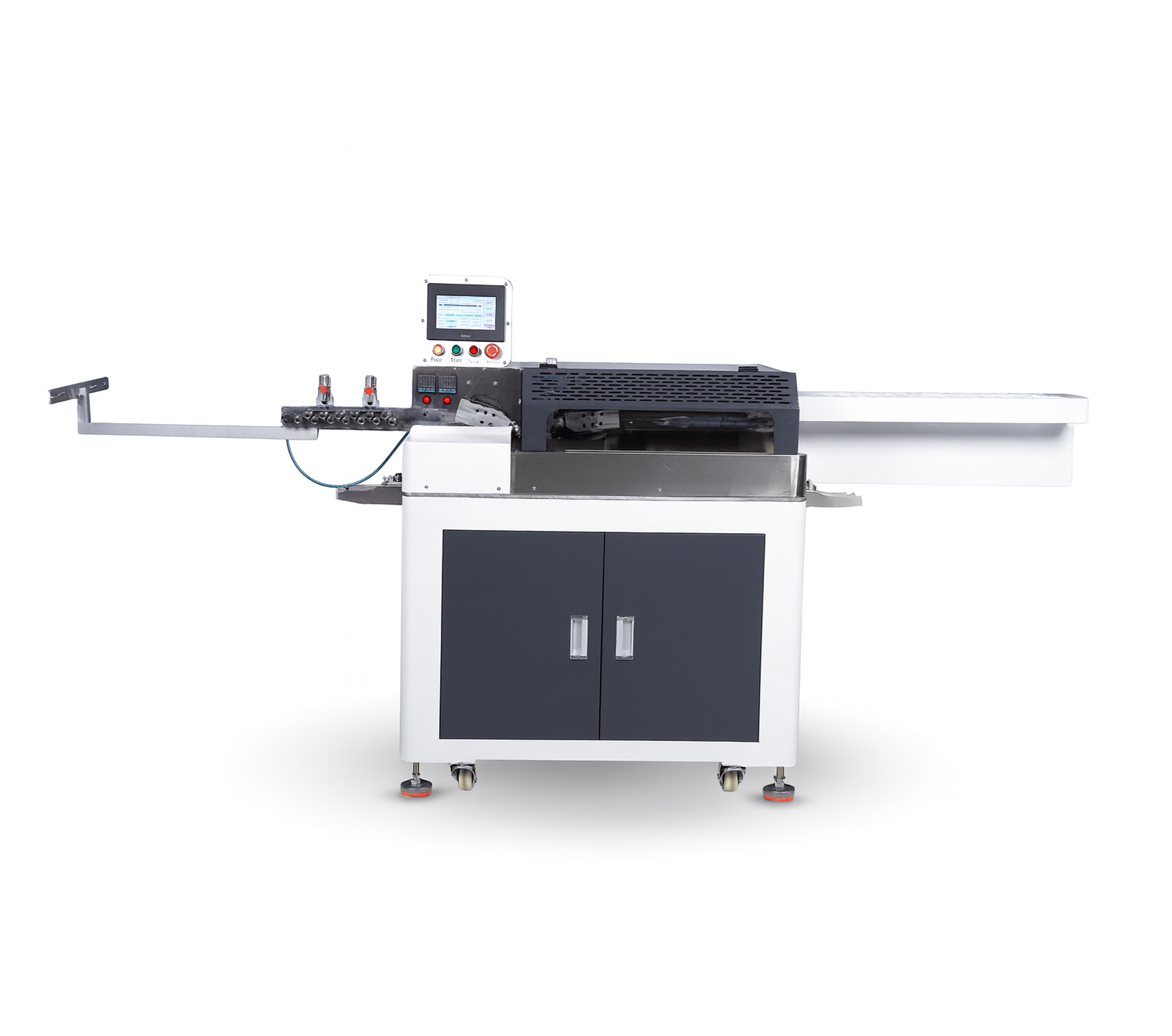

Fully automatic Five Wire cutting and Both Side Twisting & Tinning Machine (0.3 to 2.5 sq mm)

Fully automatic Five Wire cutting and Both Side Twisting & Tinning Machine (0.3 to 2.5 sq mm)

Fully automatic machine for cutting, stripping, twisting & double-head tin soldering – precise, efficient, and ideal for wire harness production.

  • Fully automatic machine for wire cutting, stripping, twisting, and dual-end tinning with high-speed precision.

  • Supports multiple wire sizes, offers reliable soldering, and features easy HMI control.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Complete Automation

Complete Automation

Cutting, stripping, twisting, and dual-end tinning.

High-Speed Precision

High-Speed Precision

Ensures fast and accurate processing.

Flexible Compatibility

Flexible Compatibility

Supports multiple wire sizes with reliable soldering.

User-Friendly Control

User-Friendly Control

Simple and efficient HMI operation.

Technical Specifications

  • Model

    SDFA-5BST

  • Functions

    Automatic wire cutting, stripping, twisting, flux dipping, tin dipping

  • Wire Capacity

    Wire Capacity Up to 5 wires per cycle

  • Automatic Grade

    Automatic

  • Voltage

    AC 220V, 50/60Hz

  • Cutting Length

    30 – 1000 mm (Customizable)

  • Stripping Length

    0 – 9 mm

  • Applicable Wire

    0.3 – 2.5 mm

  • Twisting Length

    3 – 9 mm

  • Power Consumption

    2.5 kW

  • Weight

    400 kg

  • Dimensions

    1210 × 770 × 1370 mm

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
