Fully Automatic Wire Processing Machines

SDFA-3A-2

Fully Automatic High-Speed Cutting & Crimping Machine 0.3 to 5.0 sq mm Both Side Gum Seal Unit

Fully Automatic High-Speed Cutting & Crimping Machine 0.3 to 5.0 sq mm Both Side Gum Seal Unit

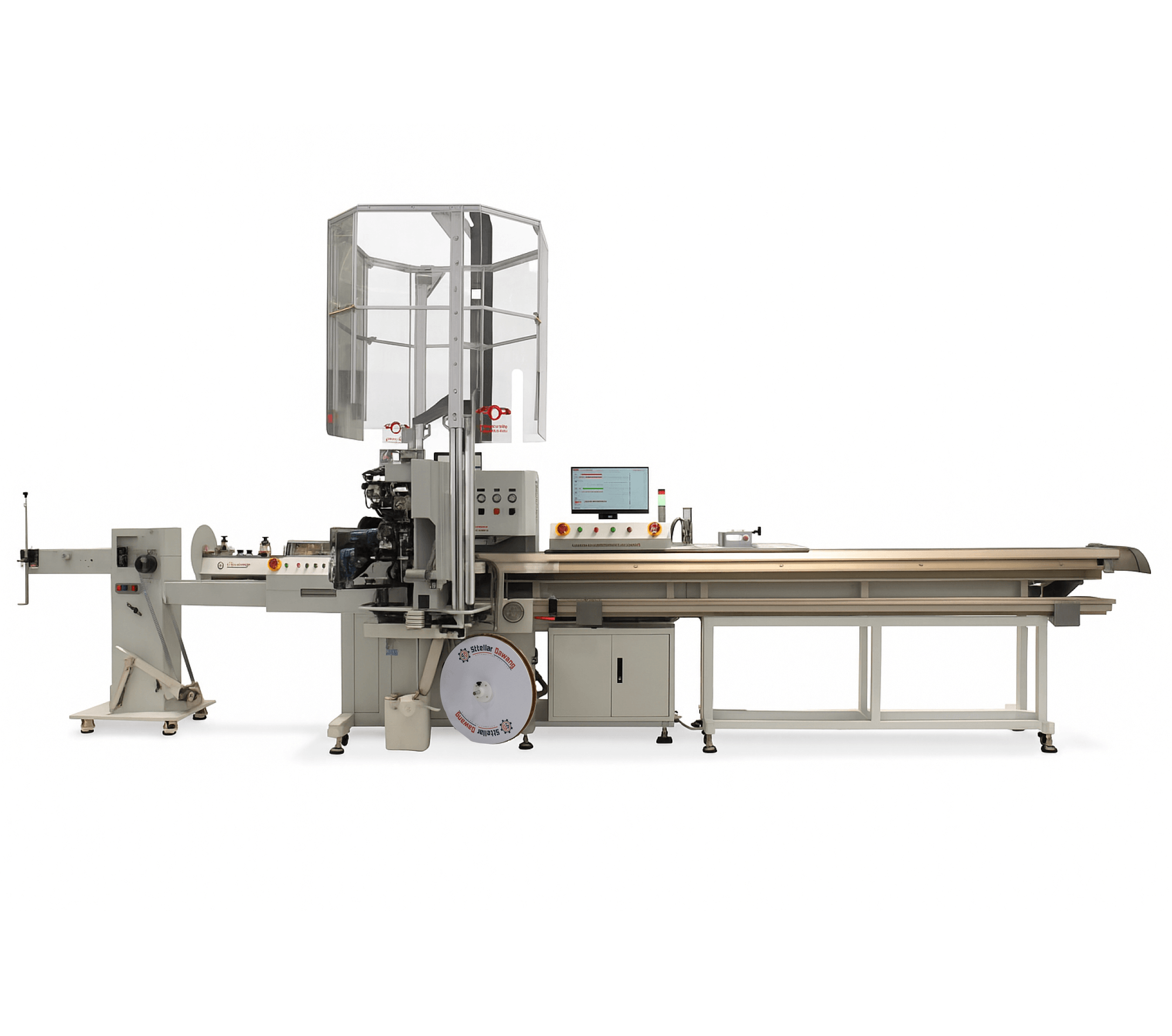

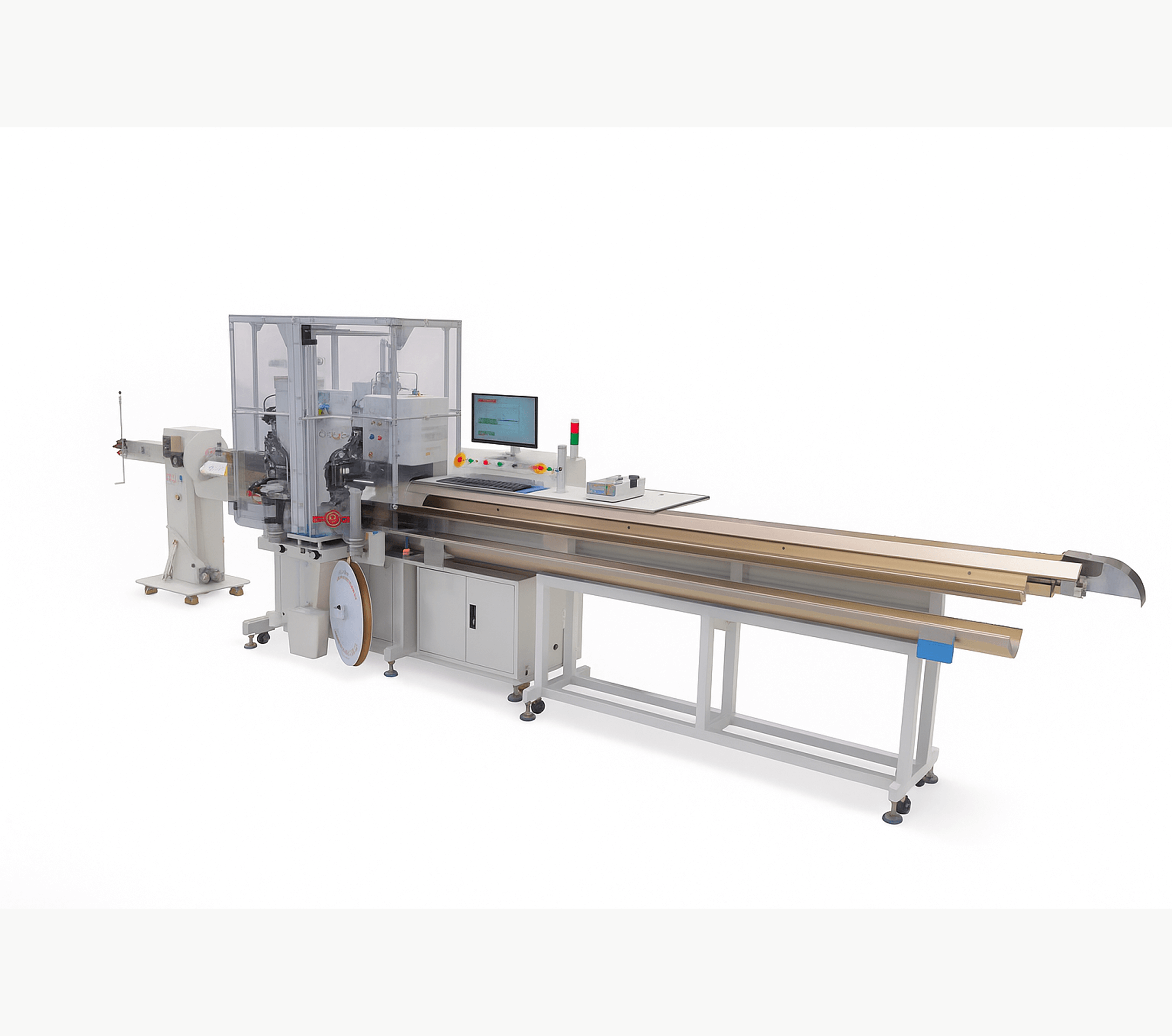

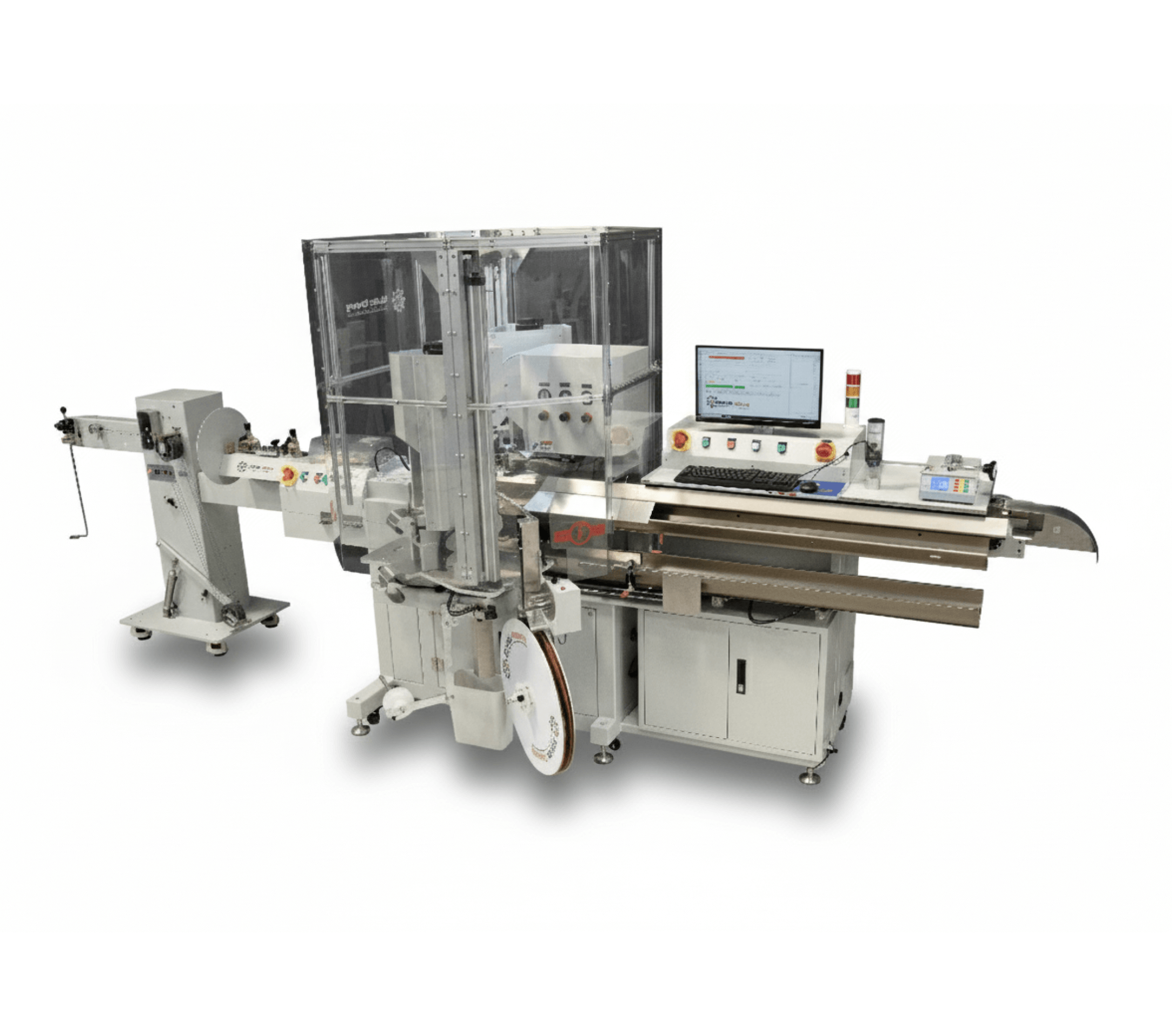

The 3A-2 Fully Automatic Wire Crimping Machine is designed for high-speed, precision processing of multi-core wires. It performs cutting, stripping, and terminal crimping with optional waterproof plug insertion and printing. Equipped with 6 servo motors and an advanced control system, it ensures stable performance and high efficiency. Ideal for automotive, electronics, and industrial wiring application.

  • The 3A-2 Fully Automatic Wire Crimping Machine is designed for processing multi-core wires with a maximum cross-sectional area of up to 5 mm².

  • When operated within the technical specifications, it can perform the following functions:.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

All-electric durable machine structure

All-electric durable machine structure

Designed for long life and efficiency.

Fast, precise multi-material feeding

Fast, precise multi-material feeding

Handles diverse wires smoothly and quickly.

Touch-screen setup and control

Touch-screen setup and control

Ensures easy precision operation adjustments.

Minimal waste, high-volume performance

Minimal waste, high-volume performance

Optimized for quality in bulk production.

Technical Specifications

  • Model

    SDFA-3A-2

  • Power Supply

    AC 220V / 50Hz

  • Power Consumption

    150W (idle) / 5500W (max)

  • Air Pressure

    0.5 – 0.8 MPa

  • Drive System

    6 servo motors

  • Wire Length

    Cutting Only: Unlimited Stripping: 65 mm – 9,999,999 mm

  • Max. Wire Diameter

    Ø 6.0 mm

  • Stripping Length

    Up to 18 mm (both ends)

  • Crimping Force

    2T / 3T

  • Wire Size (Crimping)

    0.3 – 2.5 mm²

  • Wire Size (Cutting)

    0.3 – 5.0 mm²

  • Cutting Accuracy

    < 500 mm: ±1 mm ≥ 500 mm: ±(0.5 + 0.2% × L)

  • Max. Wire Feed Speed

    13 m/s

  • Reference Efficiency

    3000 – 3200 wires/hour (100 mm length, double-end stripping & crimping)

  • Operating Temperature

    0°C – 40°C

  • Relative Humidity

    < 75% RH

  • Weight

    750 kg (main unit)

  • Dimensions (with 2M Take-up)

    6500 mm (L) × 1450 mm (W) × 1450 mm (H)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
