Fully Automatic Wire Processing Machines

SDFA-3A-1

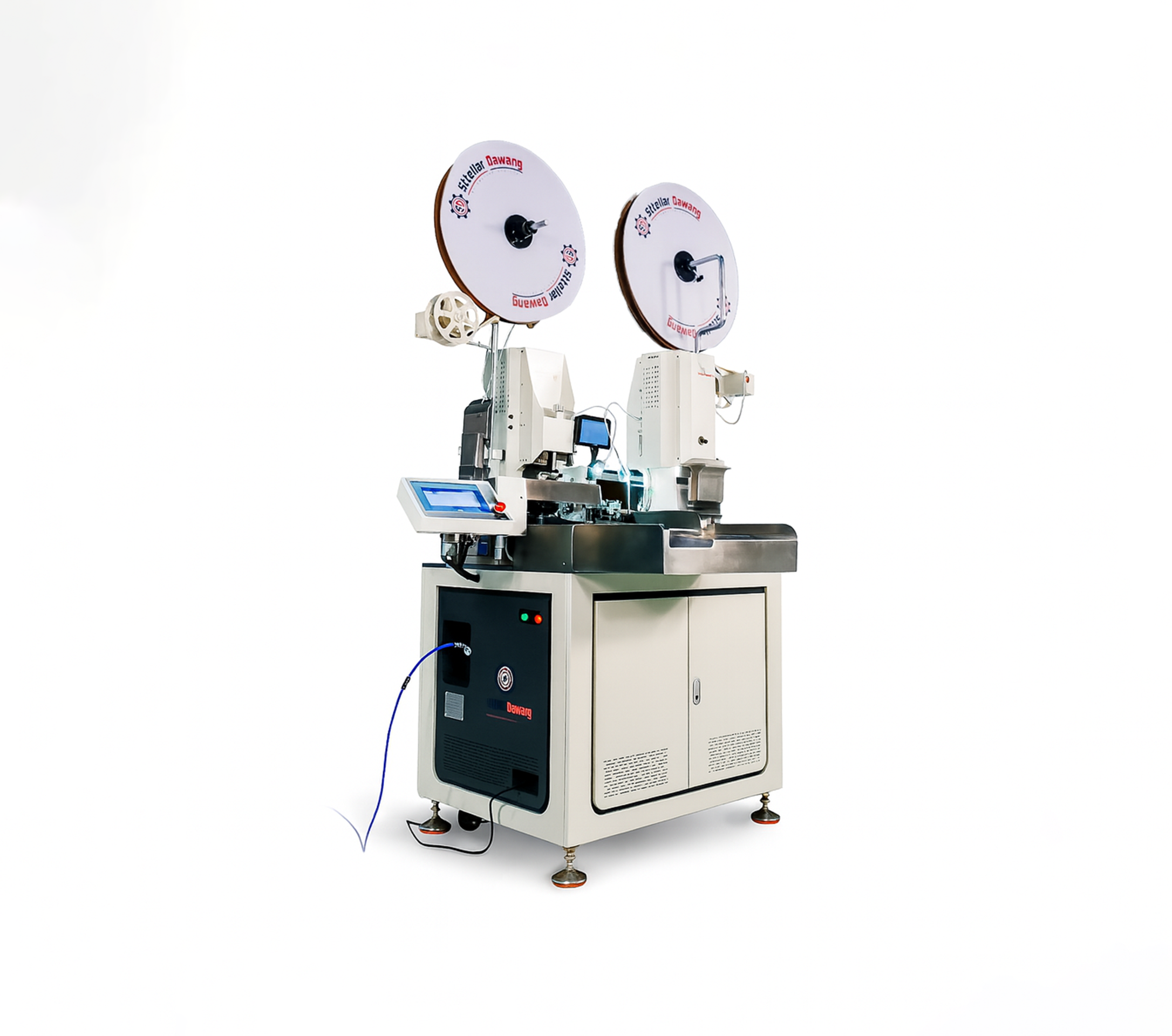

Fully Automatic High-Speed Cutting & Crimping Machine 0.3 to 5.0 sq mm

Fully Automatic High-Speed Cutting & Crimping Machine 0.3 to 5.0 sq mm

The 3A-2 Fully Automatic Wire Crimping Machine is designed for high-speed, precision processing of multi-core wires. It performs cutting, stripping, and terminal crimping with optional waterproof plug insertion and printing. Equipped with 6 servo motors and an advanced control system, it ensures stable performance and high efficiency. Ideal for automotive, electronics, and industrial wiring applications.

  • The 3A-1 Fully Automatic Wire Crimping Machine is designed for processing multi-core wires with a maximum cross-sectional area of up to 5 mm².

  • When operated within the technical specifications, it can perform the following functions:

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Versatile Processing

Versatile Processing

Handles multi-core wires up to 5 mm² with precision.

Comprehensive Functions

Comprehensive Functions

Supports cutting, stripping, crimping, and waterproof plug insertion.

Enhanced Automation

Enhanced Automation

Includes wire take-up, pre-feed, and optional inkjet printing.

Quality Assurance

Quality Assurance

Offers optional crimping analysis for reliable performance.

Technical Specifications

  • Model

    SDFA-3A-1

  • Power Supply

    AC 220V / 50Hz

  • Power Consumption

    150W (idle) / 5500W (max)

  • Maximum terminal Length

    40mm

  • Air Pressure

    0.5 – 0.8 MPa

  • Drive System

    6 servo motors

  • Wire Length

    Cutting Only: Unlimited Stripping: 65 mm –9,999,999 mm

  • Max. Wire Diameter

    Ø 6.0 mm

  • Stripping Length

    Up to 18 mm (both ends)

  • Crimping Force

    2T / 3T

  • Wire Size (Crimping)

    0.3 – 2.5 mm²

  • Wire Size (Cutting)

    0.3 – 5.0 mm²

  • Cutting Accuracy

    < 500 mm: ±1 mm ≥ 500 mm: ±(0.5 + 0.2% × L)

  • Max. Wire Feed Speed

    13 m/s

  • Reference Efficiency

    3000 – 3200 wires/hour (100 mm length, double-end stripping & crimping)

  • Operating Temperature

    0°C – 40°C

  • Relative Humidity

    < 75% RH

  • Weight

    750 kg (main unit)

  • Dimensions (with 2M Take-up)

    6500 mm (L) × 1450 mm (W) × 1450 mm (H)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
