Fully Automatic Wire Processing Machines

SDAFA-5C2

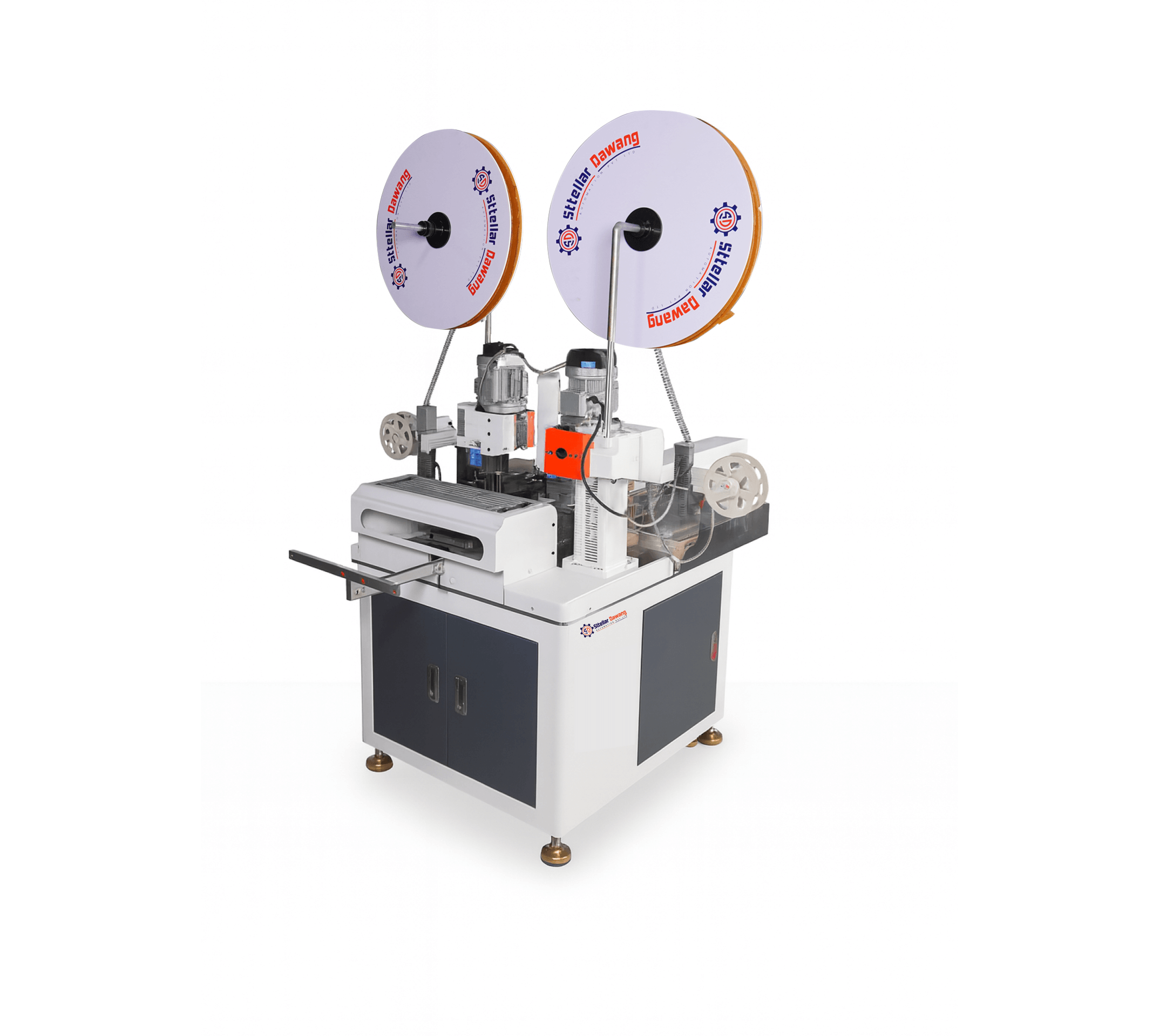

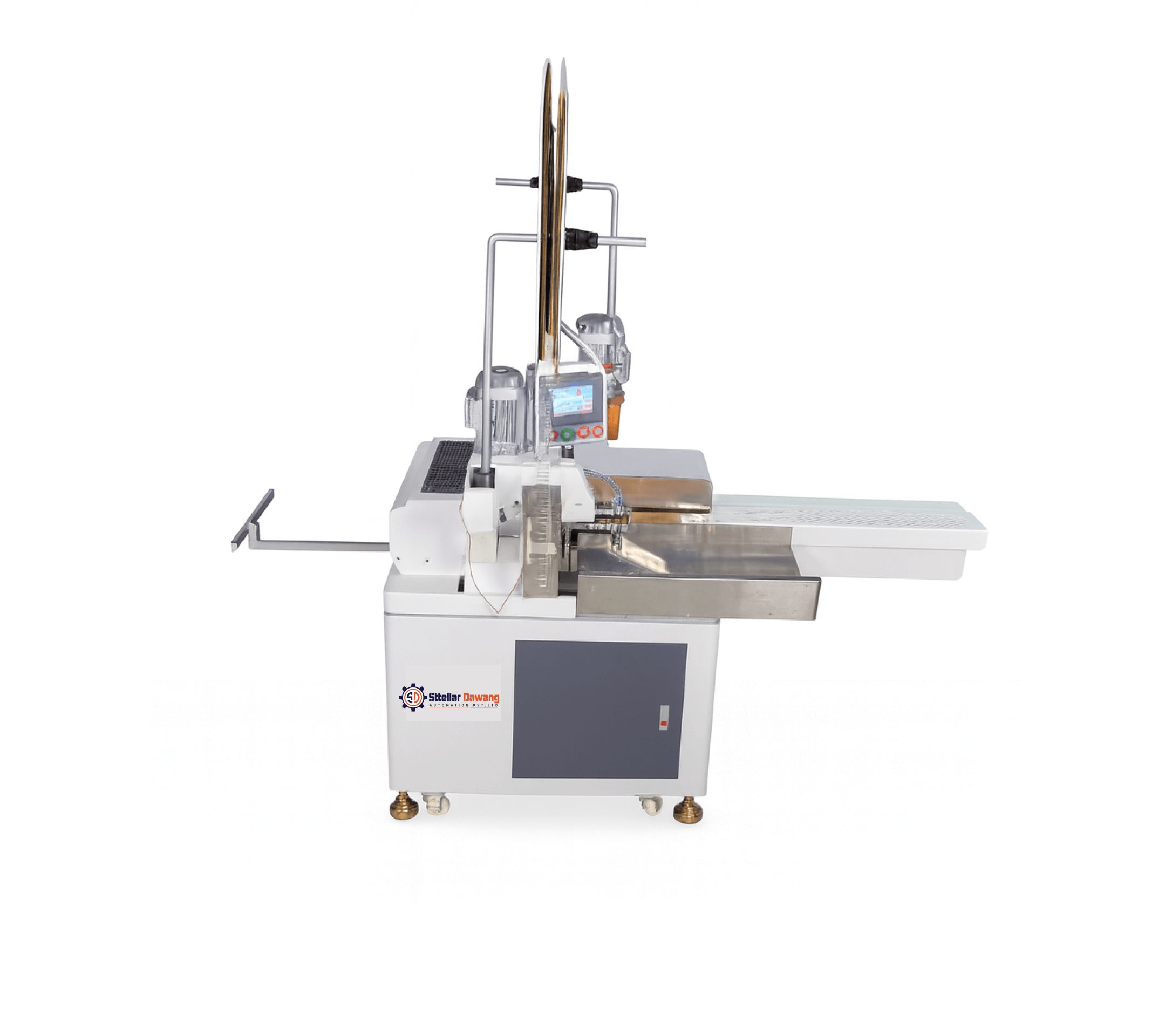

Fully automatic Five Wire cutting and Both Side crimping machine (0.3 to 2.5 sq mm)

Fully automatic Five Wire cutting and Both Side crimping machine (0.3 to 2.5 sq mm)

Advanced servo-driven fully automatic machine for cutting, stripping, and two-end crimping up to 5 wires at once – high-speed, precise, and ideal for wire harness production.

  • Fully automatic multi-wire processor (up to 5 wires) with cutting, stripping, and two-end crimping.

  • Features servo precision, quick changeover, smart detection, and high-speed stable output.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Multi-Wire Processing

Multi-Wire Processing

Handles up to 5 wires simultaneously.

Complete Automation

Complete Automation

Cutting, stripping, and two-end crimping in one machine.

Precision & Efficiency

Precision & Efficiency

Servo control with quick changeover.

Smart & Reliable

Smart & Reliable

Equipped with smart detection and stable high-speed output.

Technical Specifications

  • Model

    SDAFA-5C2

  • Functions

    Cutting, Stripping, Two-End Crimping (5 wires simultaneously)

  • Wire Capacity

    Up to 5 wires per cycle

  • Applicable Wire Size

    0.3 – 2.5 mm²

  • Cutting Length

    45–9999 mm

  • Stripping Length

    0–10 mm

  • Crimping strength

    2T Ultra-silence

  • Crimping Capability

    Both ends (simultaneous operation)

  • Control System

    Servo Motor + PLC + Touchscreen HMI

  • Detection System

    Wire absence, terminal presence, crimp force monitoring

  • Production Rate

    ~4000 pcs/hour (depending on wire length)

  • Control

    Servo

  • Power Supply

    220V, 50/60 Hz

  • Power Consumption

    3.5KW

  • Air Connection

    0.5–0.7 MPa

  • Weight

    450 kg

  • Dimensions

    1500 × 850 × 1700 mm

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
