Cutting Sleeve Cutting Machines

SD-300

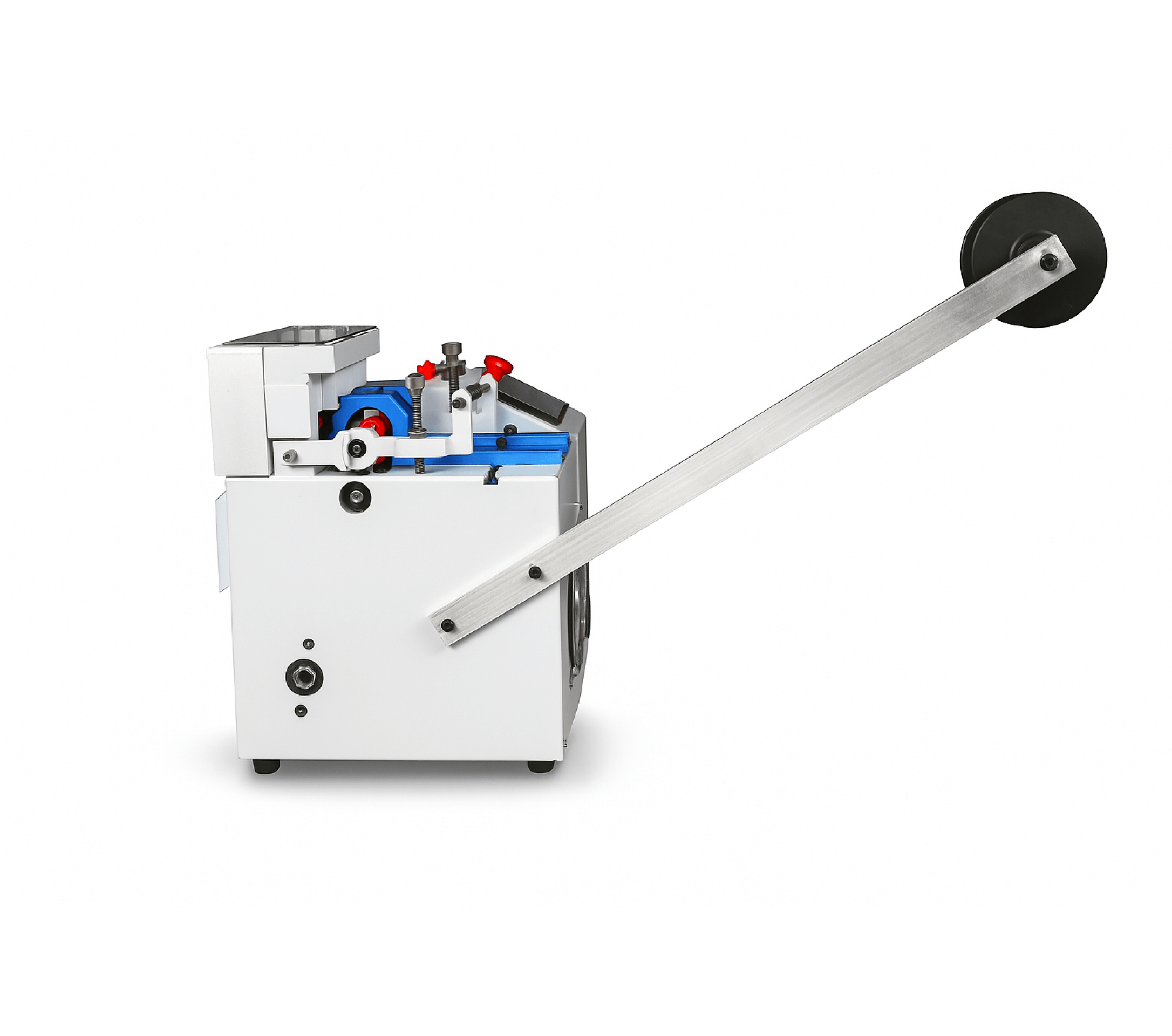

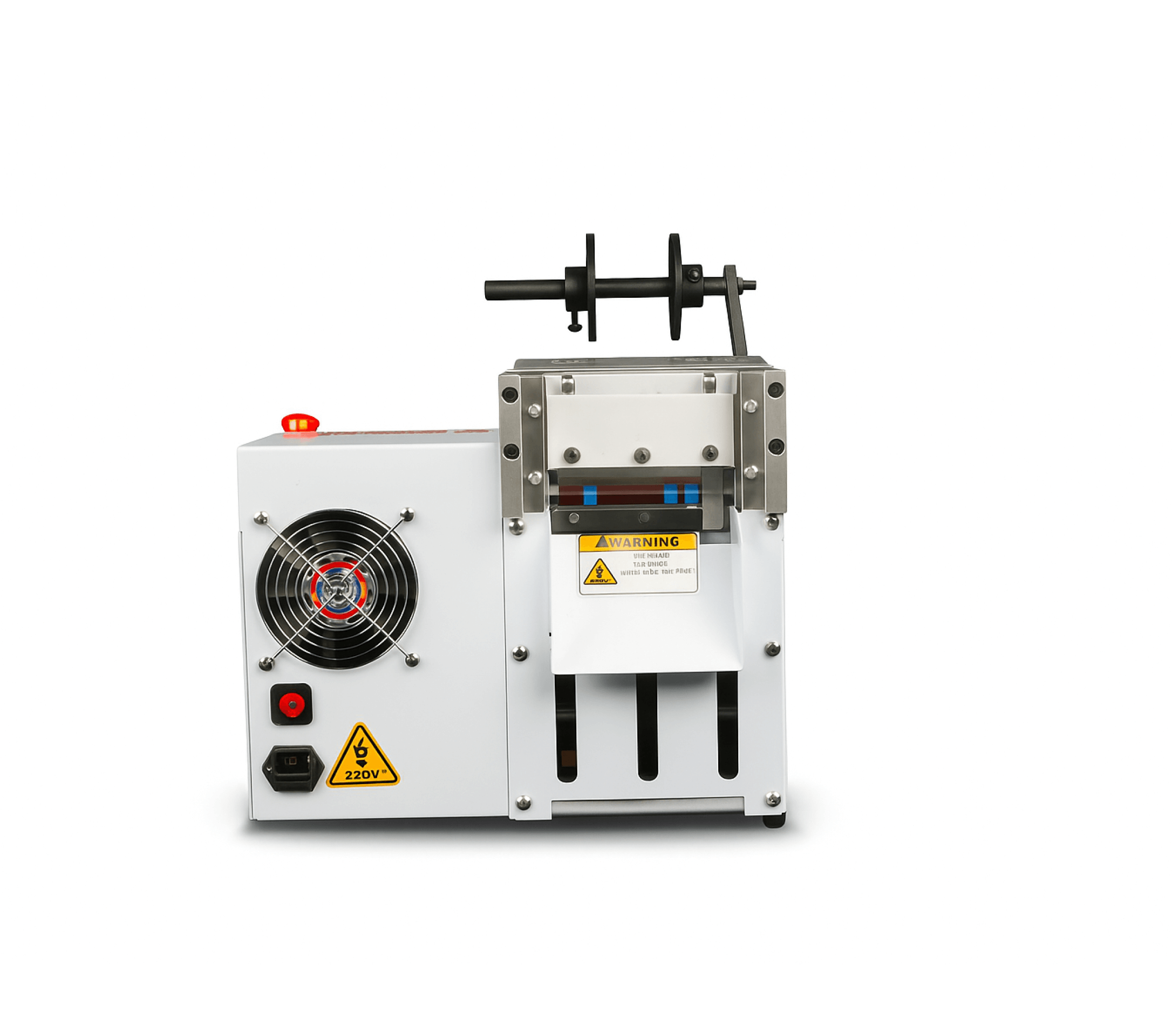

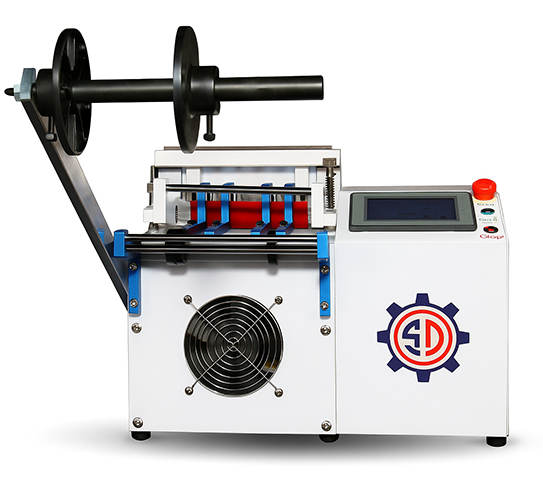

Automatic Measuring and Sleeve Cutting Machine (Maximum Material Width 300.0 mm)

Automatic Measuring and Sleeve Cutting Machine (Maximum Material Width 300.0 mm)

A high-performance servo-driven cutting machine with PLC controls and touchscreen HMI. Delivers precise, high-speed cutting, flexible material handling, and durable performance for continuous operation.

  • A durable, all-electric cutting machine designed for precision and efficiency.

  • With multi-material capability, touchscreen controls, smooth handling, and low power consumption, it delivers accurate, cost-effective, and reliable performance for continuous operation.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Durable all-electric machine design

Durable all-electric machine design

Ensures long-lasting and robust operation.

Multi-material cutting capability

Multi-material cutting capability

Handles various wire and material types.

Touch-screen setup and control

Touch-screen setup and control

Ensures easy precision operation adjustments.

Low power consumption efficiency

Low power consumption efficiency

Reliable performance with cost savings.

Technical Specifications

  • Operating interphase

    HMI (Touch Screen)

  • Maximum material width

    280.0 mm

  • Maximum Tube Outer Dia

    200.0 mm

  • Maximum Cable Outer Dia

    10.0 mm

  • Maximum Tube Thickness

    6.0 mm

  • Maximum Feed Rate

    1.0 meter per second

  • Pulling force

    300N

  • Maximum length

    1 mm to 9999 mm

  • Length Increment

    0.1 mm

  • Length Accuracy

    ±0.5MM (L x 0.02%) Depends on the materials

  • Program memory capacity

    Up to 100 nos with all processing parameters

  • Noise Level

    < 70 db

  • Power

    500 watts

  • Power Supply

    230 to 240V (50/60 Hz) (optional 110V)

  • Dimensions (L x W x H)

    450 x 450 x 600 mm

  • Net Weight

    50 kgs

  • Output Range (approx)

    3000 nos per hour at 100 mm length and single line feed (depending on materials)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
