Cutting Corrugated Tube Cutting Machines

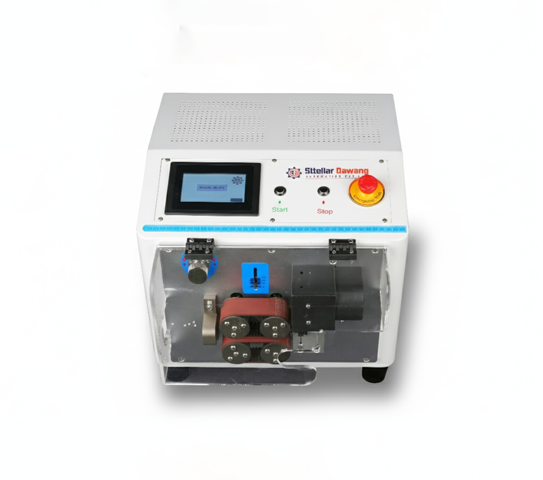

SDCP-40

Corrugated tube cutting machine with precision features

Corrugated tube cutting machine with precision features

Precision corrugated tube cutting machines designed for slit, re-sealable, and muffed tubes. Ideal for protecting cables and harnesses, they serve industries like wire harness, hose, PVC/rubber parts, high-voltage cabinets, and home appliances.

  • For corrugated tubes 5–40 mm OD, the machine ensures precise crest cutting with short cycle times.

  • features a quick-change guide system, standard belt feeding, and a programmable rotary cutting module for efficient slitting.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Precise crest cutting, short cycles

Precise crest cutting, short cycles

Delivers accurate and efficient tube cuts.

Quick-change guide system

Quick-change guide system

Allows fast setup for various tube sizes.

Standard belt feeding mechanism

Standard belt feeding mechanism

Ensures consistent and slip-free tube handling.

Programmable rotary cutting module

Programmable rotary cutting module

Adjustable blade speed and depth settings.

Technical Specifications

  • Operating interface

    HMI (Touch Screen)

  • Minimum Tube Outer Dia

    5.0 mm

  • Maximum Tube Outer Dia

    40.0 mm

  • Slitting Blade Diameter

    100 mm

  • Slitting Blade Speed

    1400 RPM

  • Maximum Feed Rate

    1.0 meter per second

  • Pulling force

    200N

  • Cutting length

    10mm to 99999 mm

  • Length Increment

    0.1 mm

  • Length Accuracy

    ±0.5MM (L x 0.02%) Depends on the materials

  • Program memory capacity

    Upto 100 no’s with all processing parameters

  • Noise Level

    < 70 db

  • Power

    2.0 KW

  • Power Supply

    230 to 240V (50/60 Hz) (optional 110V)

  • Dimensions (L x W x H)

    450 x 500 x 700 mm

  • Net Weight

    70 kgs

  • Output Range (approx)

    4800 nos per hour at 100 mm length and single line feed (depending on materials)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
