High Capacity & Accuracy
Supports up to 100 kgf pull testing with ±0.5% accuracy and 0.1 kgf resolution.
Crimp Load Tester
CLM-100
Crimp Load Manage for up to 100 Kgf force range

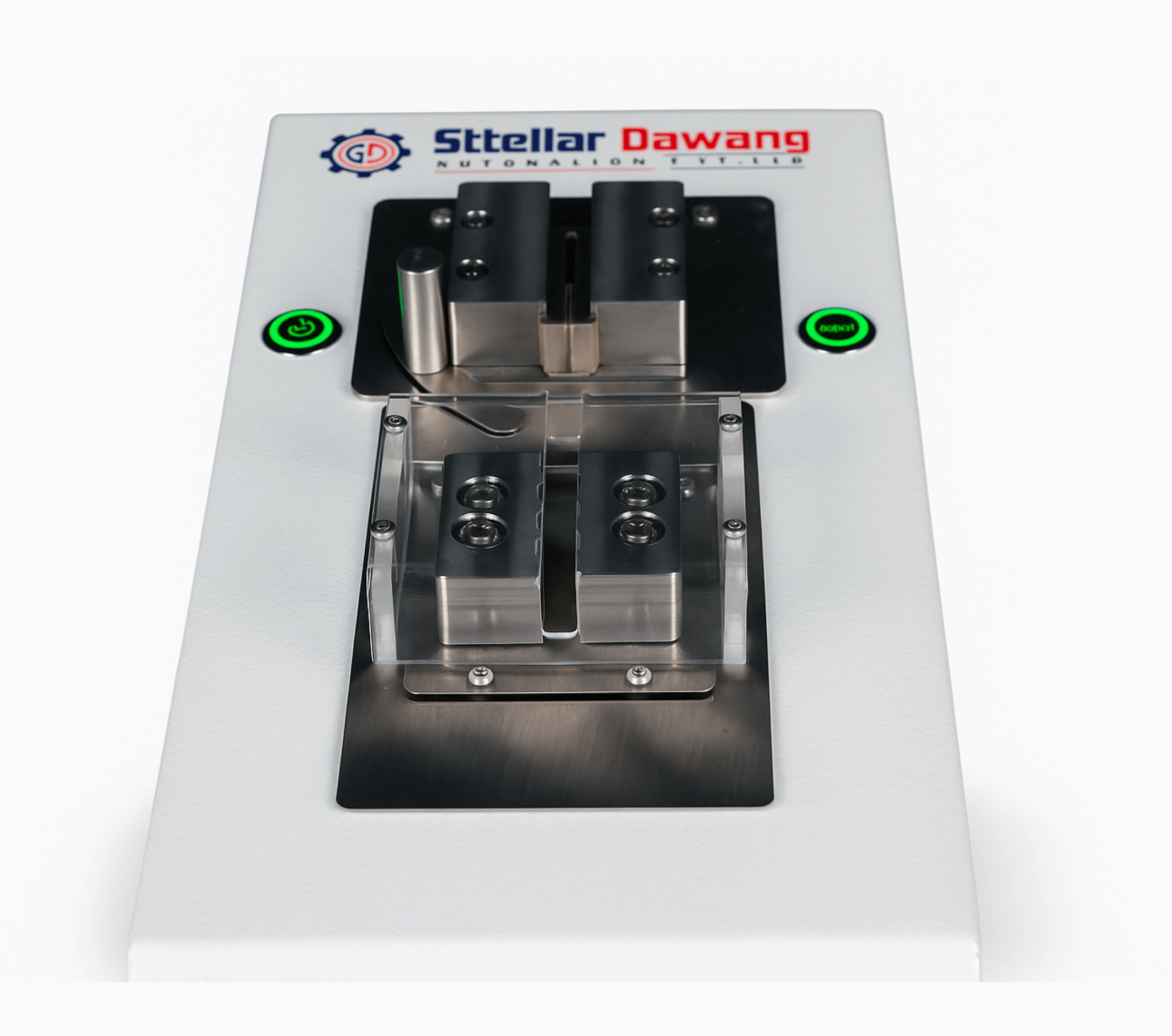

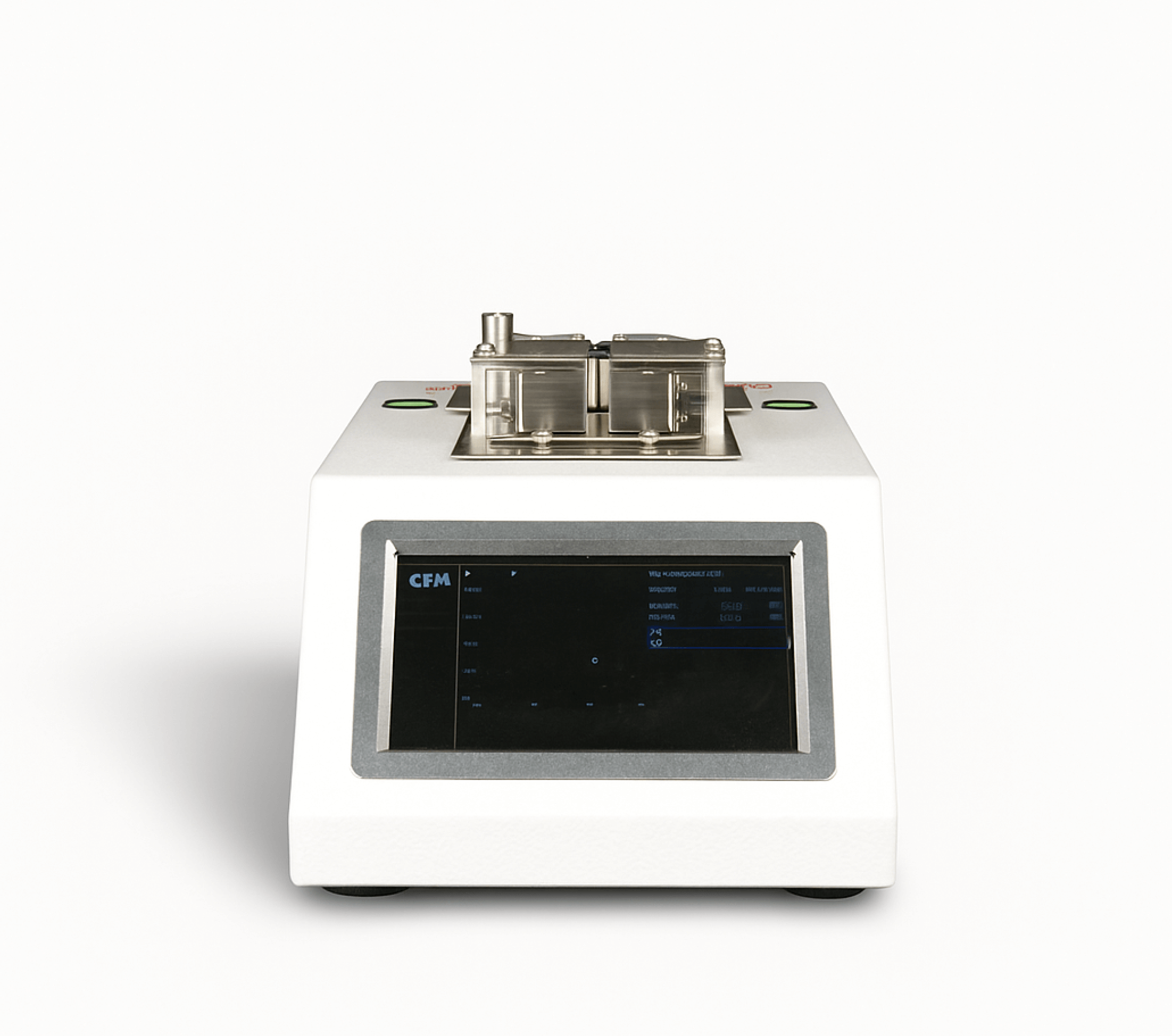

The Motorized Pull Tester CLM-100 is a high-precision, motorized wire pull testing machine designed for accurate and repeatable tensile strength measurement of crimped terminals, connectors, and wire harnesses. With an HMI touchscreen and PC connectivity, it offers user-friendly operation and advanced data logging for quality assurance in compliance with international standards
High Capacity: Maximum pull testing capacity of 100 kgf.
Multiple Pulling Speeds: Adjustable speeds of 50, 100, 150, and 200 mm/min.
User-Friendly Interface: Equipped with an HMI touchscreen for easy operation.
Data Management: PC interface for data transfer and report generation.
Multi-Unit Measurement: Displays results in kgf / N / lbf.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Flexible Testing Options
Adjustable pull speeds: 50–200 mm/min, with measurements in kgf, N, and lbf.
User-Friendly Operation
Equipped with an HMI touchscreen interface for easy control and efficient operation.
Data Management & Durability
PC connectivity for data transfer; durable build for industrial QC.
Technical Specifications
Model
CLM-100
Maximum Capacity
100 kgf
Pulling Speeds
50, 100, 150, 200 mm/min
Measurement Units
kgf / N / lbf
Power Input
Single-phase 220 V AC, 50 Hz
Accuracy
±0.5%
Least Count
0.1 kgf
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
