Winding And Bundling Equipment

SmartCoiler-200/300

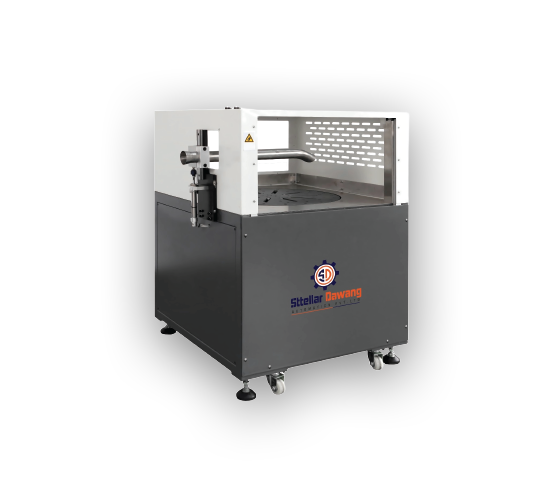

AUTOMATIC WIRE COILING MACHINE INTEGRATED WITH CABLE CUTTING MACHINE

AUTOMATIC WIRE COILING MACHINE INTEGRATED WITH CABLE CUTTING MACHINE

The SmartCoiler-200/SmartCoiler-300 is an advanced wire coiling system designed to work seamlessly with automatic cut & strip machines for efficient handling of long wires. Its servo-driven digital speed adjustment enables smooth synchronization with wire feeding speed, ensuring stable and uniform coil formation. Built with a high load-capacity structure, it supports both lightweight and heavy coils during continuous production.

Uniform Coil Formation – Produces consistently neat and precisely wound coils for improved downstream handling.
Servo Motor Drive – Adaptive digital speed control ensures perfect synchronization with wire feeding speed
High Load Capacity – Designed to support heavier wire coils in long-length processing applications
Flexible & Ergonomic Design – Easily integrates with cut & strip machines and fits into compact production setups.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details 1	Details 2
Model	SmartCoiler-200	SmartCoiler-300
Function	Wire coiler for post-cut & strip operation	Wire coiler for post-cut & strip operation
Loading Weight	Max 20 kg	Max 32 kg
Coil Inner Diameter	200 mm	200 mm
Coil Outer Diameter	Max 380 mm	Max 680 mm
Coiling Speed	1.5 m/s	1.5 m/s
Drive Method	Servo motor, adaptive with speed	Servo motor, adaptive with speed
Speed Adjustment	Digital ratio control	Digital ratio control
Dimensions	53 × 53 × 100 cm	85 × 85 × 100 cm
Weight	60 kg	110 kg

Model

Model 1 SmartCoiler-200

Model 2 SmartCoiler-300

Function

Model 1 Wire coiler for post-cut & strip operation

Model 2 Wire coiler for post-cut & strip operation

Loading Weight

Model 1 Max 20 kg

Model 2 Max 32 kg

Coil Inner Diameter

Model 1 200 mm

Model 2 200 mm

Coil Outer Diameter

Model 1 Max 380 mm

Model 2 Max 680 mm

Coiling Speed

Model 1 1.5 m/s

Model 2 1.5 m/s

Drive Method

Model 1 Servo motor, adaptive with speed

Model 2 Servo motor, adaptive with speed

Speed Adjustment

Model 1 Digital ratio control

Model 2 Digital ratio control

Dimensions

Model 1 53 × 53 × 100 cm

Model 2 85 × 85 × 100 cm

Weight

Model 1 60 kg

Model 2 110 kg

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
