Winding And Bundling Equipment

CoilMaster-500/450/400

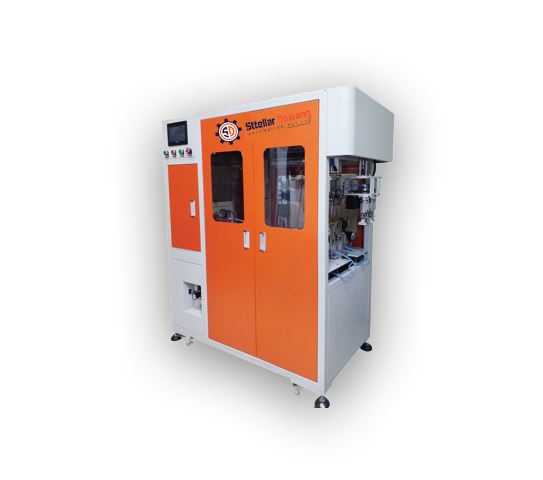

AUTOMATIC POWER CABLE WINDING & DOUBLE TYING MACHINE

AUTOMATIC POWER CABLE WINDING & DOUBLE TYING MACHINE

The CoilMaster-500/450/400 wire coiling machine works with automatic cut & strip machines to handle long wires efficiently. Its ergonomic, flexible design synchronizes with wire feeding speed for higher productivity.

Compatible with single-end and double-end cable processing.
Automatic winding with foot-switch activation for high-speed operation.
Adjustable settings for wire length (head/tail), coil number, speed, and quantity.
Easy operation with 7-inch Touch Screen & PLC Control.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details 1	Details 2	Details 3
Model	CoilMaster-500	CoilMaster-450	CoilMaster-400
Applicable Wire	USB / DC / Power Cable	USB / DC / Power Cable	3D Printing Materials
Winding Appearance	Circle	Figure 8	Circle
Final Coil Diameter	≤50 mm	≤45 mm	≤45 mm
Theoretical Yield	≤700 pcs/h	≤700 pcs/h	≤600 pcs/h
Winding Distance	80–180 mm	200–350 mm	80–200 mm
Head Length	40–130 mm	40–150 mm	40–130 mm
Tail Length	>40 mm	>40–150 mm	>40 mm
Cable Tie Type	Plastic-coated iron core	Plastic-coated iron core	Plastic-coated iron core
Air Pressure	0.4–0.6 MPa	0.4–0.6 MPa	0.4–0.6 MPa

Model

Model 1 CoilMaster-500

Model 2 CoilMaster-450

Model 3 CoilMaster-400

Applicable Wire

Model 1 USB / DC / Power Cable

Model 2 USB / DC / Power Cable

Model 3 3D Printing Materials

Winding Appearance

Model 1 Circle

Model 2 Figure 8

Model 3 Circle

Final Coil Diameter

Model 1 ≤50 mm

Model 2 ≤45 mm

Model 3 ≤45 mm

Theoretical Yield

Model 1 ≤700 pcs/h

Model 2 ≤700 pcs/h

Model 3 ≤600 pcs/h

Winding Distance

Model 1 80–180 mm

Model 2 200–350 mm

Model 3 80–200 mm

Head Length

Model 1 40–130 mm

Model 2 40–150 mm

Model 3 40–130 mm

Tail Length

Model 1 >40 mm

Model 2 >40–150 mm

Model 3 >40 mm

Cable Tie Type

Model 1 Plastic-coated iron core

Model 2 Plastic-coated iron core

Model 3 Plastic-coated iron core

Air Pressure

Model 1 0.4–0.6 MPa

Model 2 0.4–0.6 MPa

Model 3 0.4–0.6 MPa

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.

CoilMaster-500/450/400 Winding And Bundling Equipment
