Ultrasonic Welding Equipment

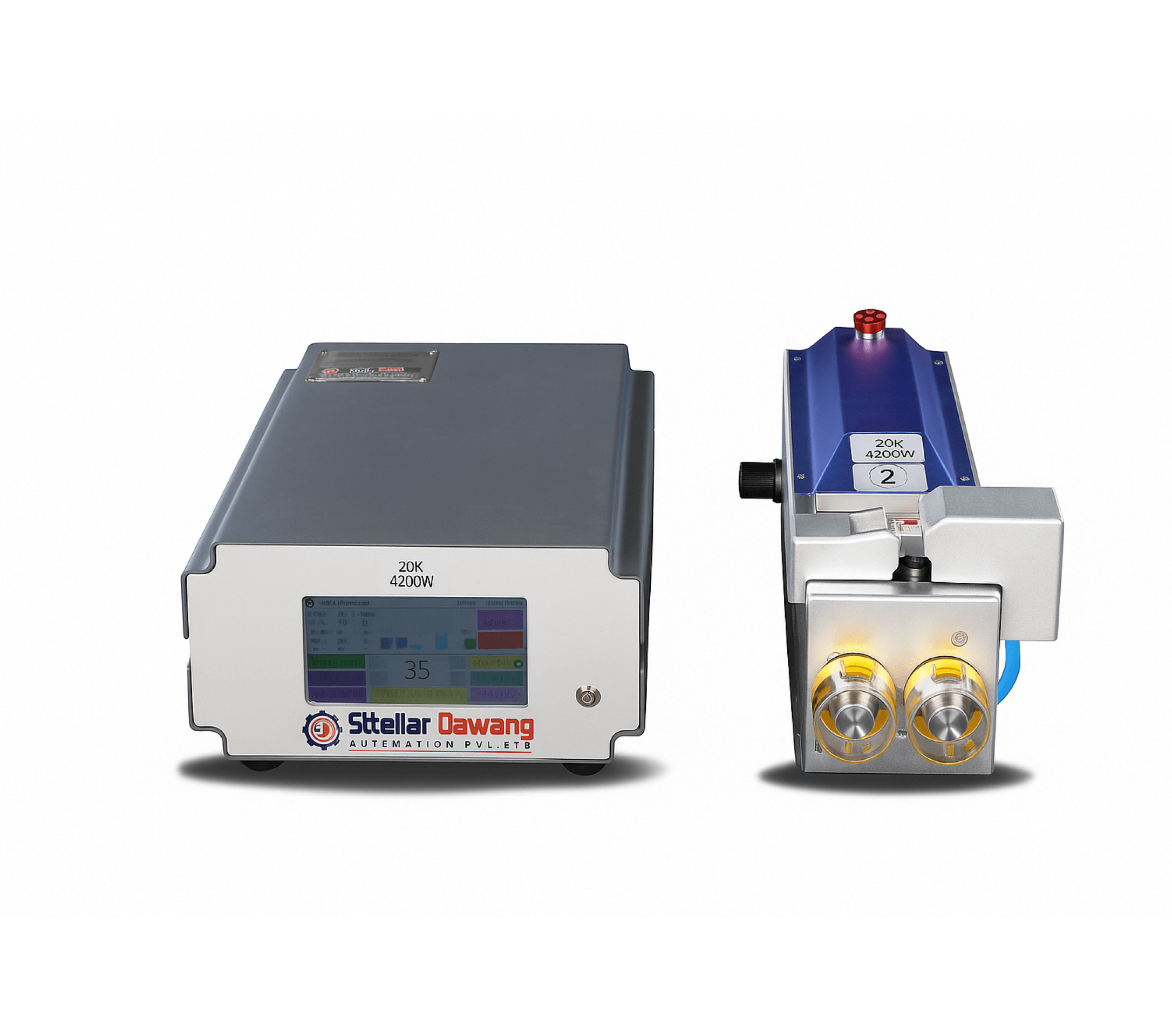

SmartWeld-4200
ULTRASONIC CABLE WELDING MACHINE 4200W WIRE SIZE RANGE: 1-20MM2
The SmartWeld-4200 ensures strong, reliable ultrasonic welding of copper and aluminum harnesses. Compact with PLC control, it’s ideal for automotive, electronics, and power applications.
Wide Welding Range: Supports wire sizes from 0.5 to 20 mm², suitable for various harness applications.
Efficient Ultrasonic Welding: Ensures strong, consistent welds without damaging conductors.
Built-in Air Cylinder: Enhances stability and eliminates the need for an external cylinder.
Precise Weld Timing: Adjustable weld timer from 0.01 to 5.00 seconds for optimal results
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SmartWeld-4200
Welding Area
Model 1 1 – 20 mm² (Pressure square welding)
Application
Model 1 Wire Harness Welding
Power
Model 1 4 kW
Frequency
Model 1 20 kHz
Air Pressure
Model 1 0.4 – 0.6 MPa
Air Cylinder
Model 1 Built-in Cylinder
Weld Timer Setting
Model 1 0.01 – 5.00 s
Power Stability
Model 1 ≤5%
Head Color
Model 1 Blue + Silver
Control System
Model 1 PLC with HMI Touchscreen
Operation Mode
Model 1 Semi-Automatic
Power Supply
Model 1 AC 220 V, 50/60 Hz
Dimensions (L×W×H)
Model 1 650 × 450 × 650 mm
Weight
Model 1 51 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
