Twisting Machine
TwistMax-4S

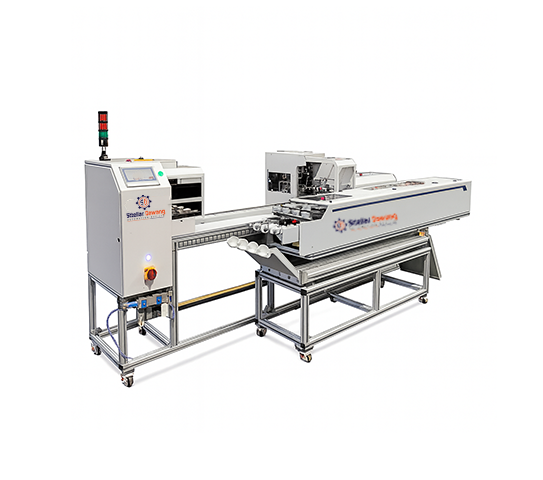

TWISTING MACHINE WITH SPOT TAPPING 4 JAW
The TwistMax-4S is a fully automatic 4-axis twisting and tape-wrapping machine designed for high-precision processing of multi-core wires up to 15 meters. Engineered for high-volume production, it integrates synchronized servo-driven twisting, configurable tape wrapping, and advanced tension control to ensure consistent and reliable output.
4-Axis Synchronized Servo Control Precision servo motors manage twisting and wrapping with superior stability and ±0.1 mm accuracy.
Adjustable Twisting Pitch (10–100 mm) Allows fine-tuning based on application requirements and cable specifications.
High-Speed Operation Twisting speeds up to 1500 RPM and wrapping speeds up to 1200 RPM for maximum productivity.
Configurable Wrapping Styles Supports spiral and overlapping wrapping with adjustable overlap ratios (30%–70%).
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Operation Mode
Model 1 Fully Automatic
Supported Wire Length
Model 1 ≤ 15 meters
Applicable Wire Types
Model 1 Multi-core wires, signal cables, automotive cables
Number of Twisting Axes
Model 1 4
Twisting Method
Model 1 Servo-controlled synchronized twisting
Twisting Pitch Range
Model 1 10 mm – 100 mm (adjustable)
Twisting Speed
Model 1 Up to 1500 RPM (variable speed control)
Max Number of Cores
Model 1 Up to 4 cores (customizable)
Wrapping Type
Model 1 Spiral / Overlapping (configurable)
Tape Material Supported
Model 1 PVC, Cloth, Non-woven, Paper, PET
Tape Width
Model 1 9 – 25 mm
Tape Roll Diameter
Model 1 Up to 100 mm
Wrapping Speed
Model 1 Up to 1200 RPM (synchronized)
Tape Overlap Ratio
Model 1 Adjustable (30% – 70%)
Tension Control
Model 1 Automatic tape tension control system
Interface
Model 1 Touchscreen HMI (7” or 10”)
Programming
Model 1 Multi-program memory for batch jobs
Communication Interface
Model 1 USB / LAN / RS485
Language
Model 1 Multilingual (English standard)
Motor Type
Model 1 Precision Servo Motors (4 axes)
Drive Accuracy
Model 1 ±0.1 mm
Power Supply
Model 1 220V, 50/60Hz, Single Phase
Total Power Consumption
Model 1 ~1.5 kW
Dimensions (Approx.)
Model 1 1200 mm × 800 mm × 1500 mm
Weight
Model 1 ~350 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products
TwistMax-4 Twisting Machine

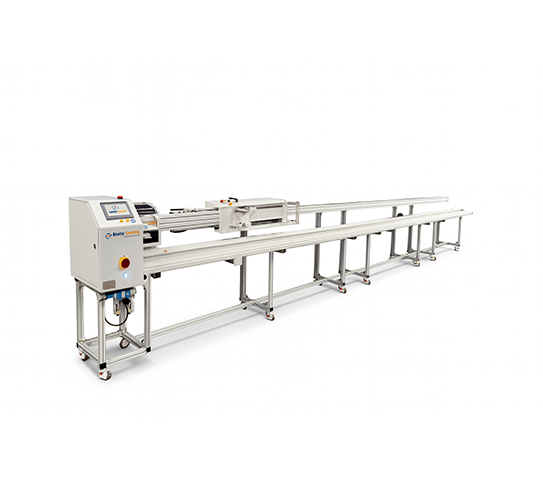

TwistMax-2 Twisting Machine
