Twisting Machine

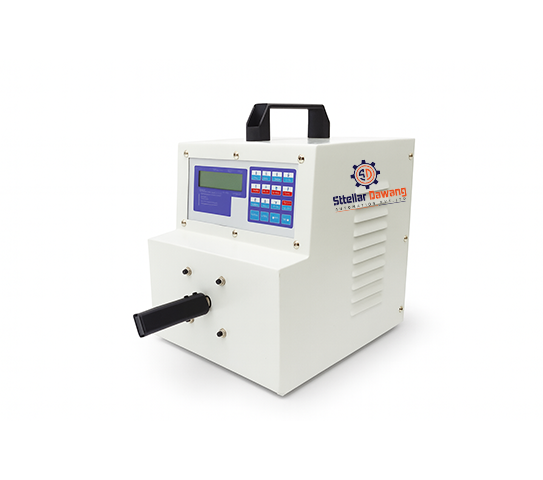

TwistMax-1

TWISTING MACHINE WITHOUT SPOT TAPPING 4 JAW

The TwistMax-1 is a fully automatic 1-axis twisting machine engineered for precision processing of multi-core wires with optional tape-wrapping functionality. Ideal for automotive, industrial, and signal cable manufacturing, the TwistMax-1 delivers stable, uniform twisting for cable lengths up to 15 meters. With servo-driven control, advanced tension management, and a compact, durable design, it offers reliable performance in continuous production environments.

1-Axis Servo-Controlled Twisting Provides synchronized, stable twisting for consistent cable geometry.
Adjustable Twisting Pitch (10–100 mm) Easily configurable for various cable structures and application requirements.
High-Speed Performance Twisting speed up to 1500 RPM and optional tape-wrapping speed up to 1200 RPM.
Optional Tape-Wrapping Function Supports spiral and overlapping wrapping with adjustable overlap ratio (30%–70%).

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details
Operation Mode	Fully Automatic
Supported Wire Length	≤ 15 meters
Applicable Wire Types	Multi-core wires, signal cables, automotive cables
Number of Twisting Axes	1
Twisting Method	Servo-controlled synchronized twisting
Twisting Pitch Range	10 mm – 100 mm (adjustable)
Twisting Speed	Up to 1500 RPM (variable speed control)
Max Number of Cores	Up to 4 cores (customizable)
Wrapping Type	Spiral / Overlapping (configurable)
Tape Material Supported	PVC, Cloth, Non-woven, Paper, PET
Tape Width	9 – 25 mm
Tape Roll Diameter	Up to 100 mm
Wrapping Speed	Up to 1200 RPM
Tape Overlap Ratio	Adjustable (30% – 70%)
Tension Control	Automatic tape tension control system
Interface	Touchscreen HMI (7” or 10”)
Programming	Multi-program memory for batch jobs
Communication Interface	USB / LAN / RS485
Language	Multilingual (English default)
Motor Type	Precision Servo Motors (all axes)
Drive Accuracy	±0.1 mm
Power Supply	220V, 50/60Hz, Single Phase
Total Power Consumption	~1.5 kW
Dimensions (Approx.)	1200 mm × 800 mm × 1500 mm
Weight	~350 kg

Operation Mode

Model 1 Fully Automatic

Supported Wire Length

Model 1 ≤ 15 meters

Applicable Wire Types

Model 1 Multi-core wires, signal cables, automotive cables

Number of Twisting Axes

Model 1 1

Twisting Method

Model 1 Servo-controlled synchronized twisting

Twisting Pitch Range

Model 1 10 mm – 100 mm (adjustable)

Twisting Speed

Model 1 Up to 1500 RPM (variable speed control)

Max Number of Cores

Model 1 Up to 4 cores (customizable)

Wrapping Type

Model 1 Spiral / Overlapping (configurable)

Tape Material Supported

Model 1 PVC, Cloth, Non-woven, Paper, PET

Tape Width

Model 1 9 – 25 mm

Tape Roll Diameter

Model 1 Up to 100 mm

Wrapping Speed

Model 1 Up to 1200 RPM

Tape Overlap Ratio

Model 1 Adjustable (30% – 70%)

Tension Control

Model 1 Automatic tape tension control system

Interface

Model 1 Touchscreen HMI (7” or 10”)

Programming

Model 1 Multi-program memory for batch jobs

Communication Interface

Model 1 USB / LAN / RS485

Language

Model 1 Multilingual (English default)

Motor Type

Model 1 Precision Servo Motors (all axes)

Drive Accuracy

Model 1 ±0.1 mm

Power Supply

Model 1 220V, 50/60Hz, Single Phase

Total Power Consumption

Model 1 ~1.5 kW

Dimensions (Approx.)

Model 1 1200 mm × 800 mm × 1500 mm

Weight

Model 1 ~350 kg

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
