Stripping Machines

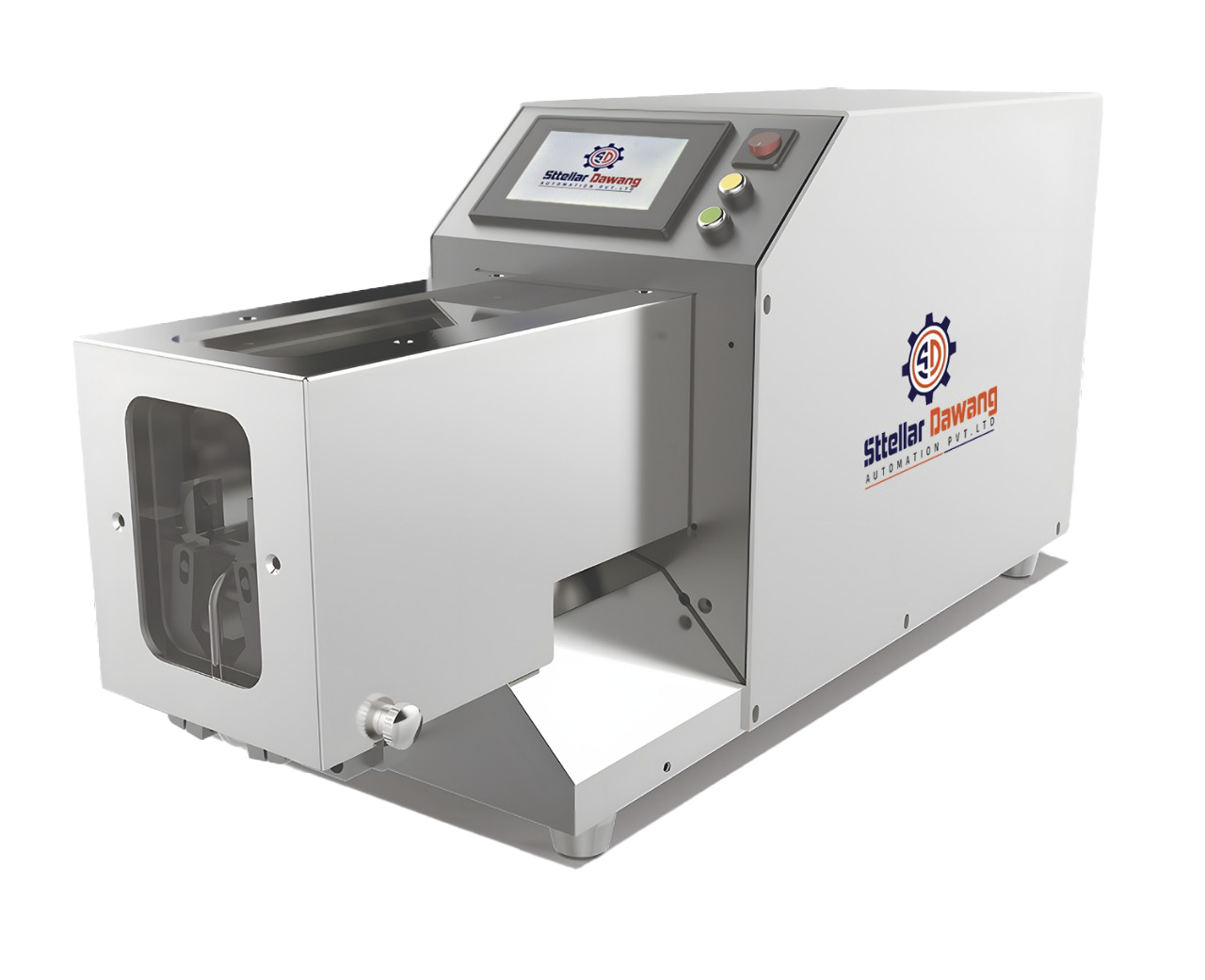

RotoStrip-200

ROTARY STRIPPING MACHINE ( CABLE OUTER DIA 0.5 MM TO 23.0 MM,STRIPPING LENGTH 5 MM TO 200.0 MM )

ROTARY STRIPPING MACHINE ( CABLE OUTER DIA 0.5 MM TO 23.0 MM,STRIPPING LENGTH 5 MM TO 200.0 MM )

The RotoStrip-200 is a semi-automatic rotary stripping machine designed for efficient and precise stripping of a wide range of cables, including PVC wires, solid core, single stranded, rubber wires, multi-core cables, computer core wires, battery cables. It features an HMI touchscreen interface for intuitive operation and supports high-precision stripping up to 120 sq.mm wire size.

Touch Screen Interface: Easy input for stripping depth, speed, distance, and rotation time.
Advanced Rotary Cutting Frame: Improves precision and processing speed.
Wire Clamping: Pneumatic air pressure for secure handling.
Lightweight Design: Easy to transport and install.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Touchscreen Control

Easy input for depth, speed, distance, and rotation settings.

Precision Rotary Cutting

Advanced frame design ensures high-quality stripping.

Secure Clamping

Pneumatic pressure holds cables firmly.

Portable Design

Lightweight and easy to install.

Technical Specifications

Specifications	Details
Model	RotoStrip-200
Operating Interface	HMI (Touch Screen)
Wire Type	PVC, Solid Core, Single Stranded & Rubber Wires, Multicore
Minimum Cable Outer Diameter	4.0 mm
Maximum Cable Outer Diameter	30.0 mm
Cable Size	4 sq.mm to 120 sq.mm
Uninyvin Cable Size	12 to 0000
Maximum Stripping Length	200.0 mm
Length Accuracy	±0.2 mm (L × 0.04%) depending on materials
Noise Level	< 70 dB
Air Supply	> 6.0 bar (dried & filtered air)
Power Supply	230 to 240V (50/60 Hz)
Function Mode	Foot Pedal, Push Button
Power	1.5 kW
Cylinder Stroke	200 mm
Dimensions (L × W × H)	1450 × 330 × 420 mm
Net Weight	110 kg
Output Range (approx)	1200–1500 pcs/hour (depending on operator skill)

Model

Model 1 RotoStrip-200

Operating Interface

Model 1 HMI (Touch Screen)

Wire Type

Model 1 PVC, Solid Core, Single Stranded & Rubber Wires, Multicore

Minimum Cable Outer Diameter

Model 1 4.0 mm

Maximum Cable Outer Diameter

Model 1 30.0 mm

Cable Size

Model 1 4 sq.mm to 120 sq.mm

Uninyvin Cable Size

Model 1 12 to 0000

Maximum Stripping Length

Model 1 200.0 mm

Length Accuracy

Model 1 ±0.2 mm (L × 0.04%) depending on materials

Noise Level

Model 1 < 70 dB

Air Supply

Model 1 > 6.0 bar (dried & filtered air)

Power Supply

Model 1 230 to 240V (50/60 Hz)

Function Mode

Model 1 Foot Pedal, Push Button

Power

Model 1 1.5 kW

Cylinder Stroke

Model 1 200 mm

Dimensions (L × W × H)

Model 1 1450 × 330 × 420 mm

Net Weight

Model 1 110 kg

Output Range (approx)

Model 1 1200–1500 pcs/hour (depending on operator skill)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
