Precise Stripping
Four-blade clean cut.
Stripping Machines

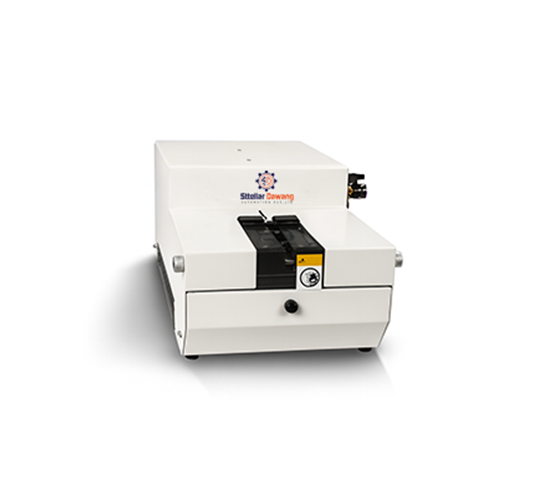

EndStrip-1600
PNEUMATIC WIRE STRIPPING MACHINE. FOR 0.5 TO 16 SQ MM
Semi-automatic stripping machine designed for big cables and multi-core cables. No need to change blades for different diameters, making it ideal for both large wires and small inner cores.
Pneumatic wire stripper with four-blade system for clean, precise stripping
Compact
Easy to use.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Compact
Small and space-saving.
Easy Use
Simple foot-pedal control.
Fast Output
High-speed stripping.
Technical Specifications
Model
Model 1 EndStrip-1600
Conductor Cross-Section
Model 1 0.5–16 sq.mm
Stripping Length
Model 1 2–50 mm
Air Connection
Model 1 0.5 MPa – 0.7 MPa (5–7 bar)
Production Rate
Model 1 1500 – 2000 pcs/h
Weight
Model 1 25 kg
Dimensions (L × W × H)
Model 1 40 × 37 × 20 cm
Min Cable Diameter
Model 1 3 mm
Max Cable Diameter
Model 1 20 mm
Power
Model 1 200 Watts
Trigger Type
Model 1 Foot pedal
Noise Level
Model 1 < 70 dBA
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products

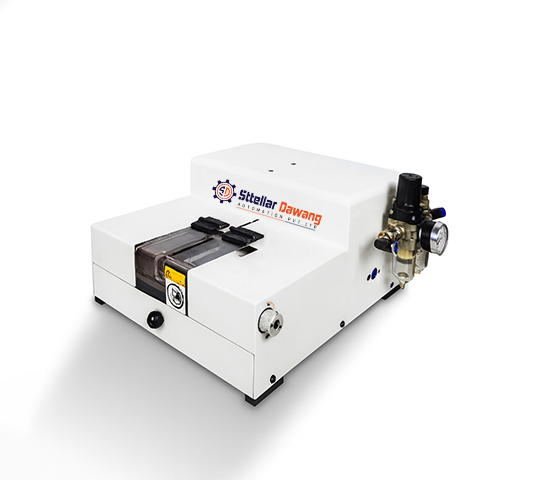

EndStrip-5000 Stripping Machines
