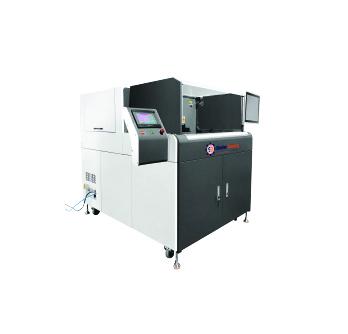

BraidStrip-7009
AUTOMATIC INNER / OUTER JACKET STRIPPING & BRAIDED SHIELD PROCESSING MACHINE
The BraidStrip-7009 is a fully automated, high-precision processing system designed specifically for aluminum-foil shielded and braided-shield cables, such as electric-vehicle high-voltage cables and multi-layer shielded power cables.Equipped with CNC parameter-controlled motion and a five-station synchronized processing platform, the BraidStrip-7009 integrates outer jacket stripping, laser foil removal, braid cutting, shield flipping.
CNC Automatic Adjustment: Fully CNC-controlled positioning for high accuracy and fast changeover.
Laser Foil Removal: Clean, non-contact laser processing with 2 mm minimum retention.
Precision Braid Handling: Stable braid cutting and flipping with 5–30 mm retention range.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Laser Foil Removal
Clean processing with 2 mm minimum retention.
Precision Braid Handling
Stable cutting and flipping with 5–30 mm retention.
Large Program Storage
Up to 500 preset processing configurations.
Technical Specifications
Model
Model 1 BraidStrip-7009
Functions
Model 1 Outer Jacket Stripping, Laser Foil Removal, Braid Cutting, Braid Turning, Inner Jacket Stripping
Cable Cross-Section Range
Model 1 2.5–95 mm²
Outer Jacket Stripping Length
Model 1 ≤ 100 mm
Inner Jacket Stripping Length
Model 1 ≤ 100 mm
Laser Foil Removal
Model 1 Minimum foil retention from root: 2 mm
Braided Shield Retention
Model 1 5–30 mm
Shield Turning Range
Model 1 ≤ 30 mm
Control System
Model 1 CNC position-controlled multi-axis system
Program Storage
Model 1 500 programs
MES Interface
Model 1 Hardware reserved (optional connectivity)
Power Supply
Model 1 Single-phase AC 220V, 50/60Hz
Power Consumption
Model 1 3 kW
Dimensions (L × W × H)
Model 1 2100 × 1350 × 1800 mm
Air Supply
Model 1 0.5–0.7 MPa; dry, clean, oil-free air
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
