Stripping Machines

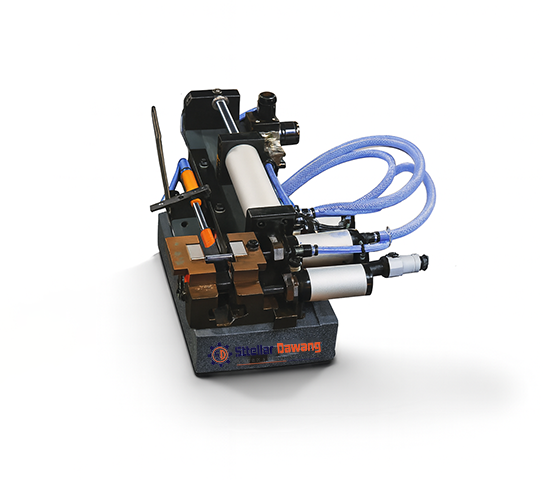

AirStrip-2000

PNEUMATIC MULTI CORE CABLE JACKET STRIPPING MACHINE STROKE-200MM STRIPPING (DIAMETER) 2-20MM

Automatic wire stripping machine for multi-conductor wires, PVC, solid core, single-stranded, computer, telephone, and battery cables. Compact, lightweight, and portable

Foot-pedal control.
Precise and efficient stripping.
Ideal for single- and multi-core cables.
Durable branded components.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Foot-Pedal Control

Enables hands-free operation for convenience and safety.

Precise & Efficient Stripping

Delivers accurate and consistent wire stripping.

Lightweight Design

Easy to handle, transport, and position.

Versatile Cable Compatibility

Suitable for both single- and multi-core wires.

Technical Specifications

Specifications	Details
Model	AirStrip-2000
Wire Type	PVC, Solid Core, Single Stranded & Rubber wires, Multicore
Minimum Cable Outer Diameter	2 mm
Maximum Cable Outer Diameter	20 mm
Cable Size	0.5 sq mm to 25 sq mm
Maximum Stripping Length	200.0 mm
Length Accuracy	±0.2 mm (L x 0.04%), depends on the materials
Noise Level	< 70 dB
Air Supply	6.0 bar dried and filtered air
Power Supply	230–240V, 50/60 Hz
Function Mode	Foot Pedal
Cylinder Stroke	300 mm
Dimensions (L × W × H)	600 × 420 × 360 mm
Net Weight	35 kg
Output Range (approx)	1300–1800 nos per hour (depending on operator skill)

Model

Model 1 AirStrip-2000

Wire Type

Model 1 PVC, Solid Core, Single Stranded & Rubber wires, Multicore

Minimum Cable Outer Diameter

Model 1 2 mm

Maximum Cable Outer Diameter

Model 1 20 mm

Cable Size

Model 1 0.5 sq mm to 25 sq mm

Maximum Stripping Length

Model 1 200.0 mm

Length Accuracy

Model 1 ±0.2 mm (L x 0.04%), depends on the materials

Noise Level

Model 1 < 70 dB

Air Supply

Model 1 6.0 bar dried and filtered air

Power Supply

Model 1 230–240V, 50/60 Hz

Function Mode

Model 1 Foot Pedal

Cylinder Stroke

Model 1 300 mm

Dimensions (L × W × H)

Model 1 600 × 420 × 360 mm

Net Weight

Model 1 35 kg

Output Range (approx)

Model 1 1300–1800 nos per hour (depending on operator skill)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
