Easy Operation
Foot-pedal controlled for convenience.
Stripping Machines

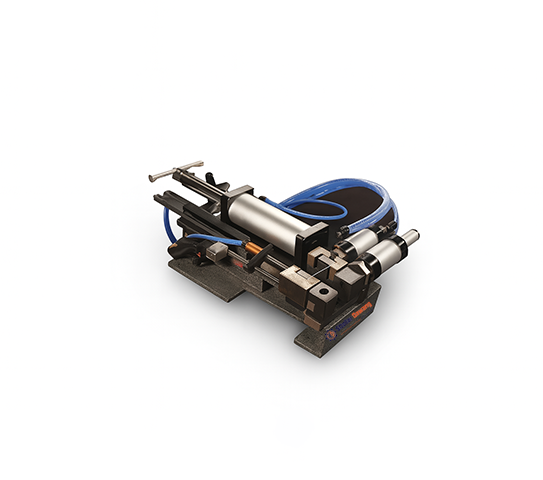

AirStrip-1200
PNEUMATIC MULTI-CORE CABLE JACKET STRIPPING MACHINE STROKE-100MM STRIPPING (DIAMETER) 2-12MM
Automatic wire stripping machine for multi-conductor wires, PVC, solid core, single-stranded, computer, telephone, and battery cables. Compact, lightweight, and portable.
Foot-pedal control.
Precise and efficient stripping.
Ideal for single- and multi-core cables.
Durable branded components.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
High Precision
Clean and accurate stripping.
Versatile Use
Supports single- and multi-core cables.
Durable Build
Equipped with reliable branded components.
Technical Specifications
Model
Model 1 AirStrip-1200
Wire Type
Model 1 PVC, Solid Core, Single Stranded, Rubber Wires, Multicore
Minimum Cable Outer Diameter
Model 1 2 mm
Maximum Cable Outer Diameter
Model 1 12 mm
Cable Size
Model 1 0.5 sq.mm to 10 sq.mm
Maximum Stripping Length
Model 1 80.0 mm
Length Accuracy
Model 1 ±0.2 mm (L × 0.04%) depending on materials
Noise Level
Model 1 < 70 dB
Air Supply
Model 1 > 6.0 bar (dried & filtered air)
Power Supply
Model 1 230 to 240V (50/60 Hz)
Function Mode
Model 1 Foot Pedal
Cylinder Stroke
Model 1 100 mm
Dimensions (L × W × H)
Model 1 600 × 420 × 360 mm
Net Weight
Model 1 30 kgs
Output Range (approx)
Model 1 1500–2000 pcs/hour (depending on operator skill)
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
