Easy Operation
Foot-pedal control for quick workflow.
Stripping Machines

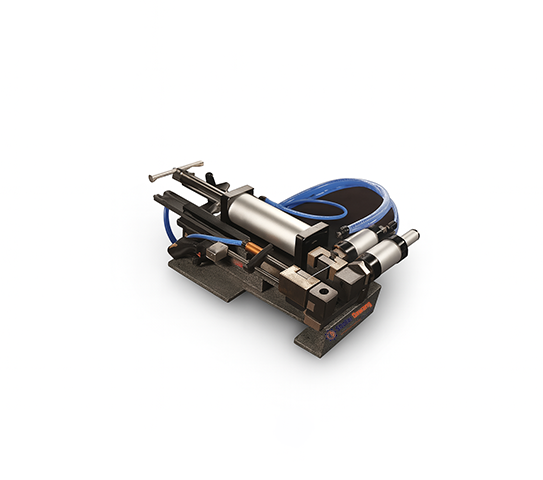

AirStrip-1000
PNEUMATIC MULTI-CORE CABLE JACKET STRIPPING MACHINE STROKE-50MM STRIPPING (DIAMETER) 7MM
Compact, portable, and automatic machine ideal for stripping multi-conductor wires, including PVC, solid core, single-stranded, computer, and telephone wires.
Foot-pedal operated, precise and efficient, with adjustable stripping and cutting.
Durable
Lightweight
Ideal for single- and multi-core cables.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Precise & Efficient
Adjustable stripping and clean cutting.
Durable & Lightweight
Robust build with easy handling.
Versatile Use
Suitable for single-core and multi-core cables.
Technical Specifications
Model
Model 1 AirStrip-1000
Wire Type
Model 1 PVC, Solid Core, Single Stranded & Rubber Wires
Minimum Outer Diameter
Model 1 2 mm
Maximum Cable Outer Diameter
Model 1 7 mm
Maximum Stripping Length
Model 1 50.0 mm
Cable Size
Model 1 0.5 – 6 sq.mm
Length Accuracy
Model 1 ±0.2 mm (L × 0.04%) depending on materials
Noise Level
Model 1 < 70 dB
Air Supply
Model 1 > 6.0 bar (dried & filtered air)
Power Supply
Model 1 230 to 240V (50/60 Hz)
Cylinder Stroke
Model 1 50 mm
Dimensions (L × W × H)
Model 1 530 × 420 × 270 mm
Net Weight
Model 1 25 kgs
Output Range (approx)
Model 1 1500 – 2000 pcs/hour (depending on operator skill)
Function Mode
Model 1 Foot Pedal
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
