Prefeeder And D Coiling Equipment

FeedMate-1000 | 2000

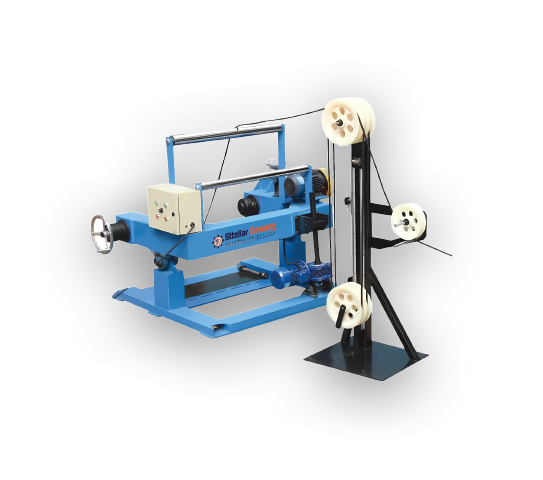

AUTOMATIC WIRE PAYOFF MACHINE FOR CABLE SPOOL AND CABLE ROLL MAX 100KGS | MAX 200KGS

AUTOMATIC WIRE PAYOFF MACHINE FOR CABLE SPOOL AND CABLE ROLL MAX 100KGS | MAX 200KGS

FeedMate-1000 | 2000 Heavy-duty automatic wire spool unwinder. Handles cables up to 18 mm with 4 m/s speed, ensuring smooth, efficient feeding for cutting, stripping, and crimping machines.

Supports both cable spools and cable rolls for flexible usage.
Infinitely variable speed – no manual speed adjustment needed.
Automatic induction with braking system for safe and precise operation.
Guide rail system ensures constant-speed feeding with low resistance and noise.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details 1	Details 2
Model	FeedMate-1000	FeedMate-2000
Available Wire Diameter	≤ Ø30 mm	≤ Ø30 mm
Max Load Weight	100 kg	200 kg
Available Spool Outer Dia	100 – 650 mm	100 – 850 mm
Available Spool Inner Dia	38 – 200 mm	38 – 200 mm
Feeding Speed	0 – 50 m/min	0 – 100 m/min
Placement Mode	Wire spool vertical	Wire spool vertical
Available Wire Types	Wire, cable, cable roll or spool	Wire, cable, cable roll or spool
Power Supply	AC 220V	AC 220V
Drive Type	Inverter + Motor + Reducer	Inverter + Motor + Reducer
Dimensions (L×W×H)	160 × 76 × 80 cm	165 × 95 × 80 cm
Machine Weight	135 kg	150 kg

Model

Model 1 FeedMate-1000

Model 2 FeedMate-2000

Available Wire Diameter

Model 1 ≤ Ø30 mm

Model 2 ≤ Ø30 mm

Max Load Weight

Model 1 100 kg

Model 2 200 kg

Available Spool Outer Dia

Model 1 100 – 650 mm

Model 2 100 – 850 mm

Available Spool Inner Dia

Model 1 38 – 200 mm

Model 2 38 – 200 mm

Feeding Speed

Model 1 0 – 50 m/min

Model 2 0 – 100 m/min

Placement Mode

Model 1 Wire spool vertical

Model 2 Wire spool vertical

Available Wire Types

Model 1 Wire, cable, cable roll or spool

Model 2 Wire, cable, cable roll or spool

Power Supply

Model 1 AC 220V

Model 2 AC 220V

Drive Type

Model 1 Inverter + Motor + Reducer

Model 2 Inverter + Motor + Reducer

Dimensions (L×W×H)

Model 1 160 × 76 × 80 cm

Model 2 165 × 95 × 80 cm

Machine Weight

Model 1 135 kg

Model 2 150 kg

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
