Nichrome Winding Machines
WindingMaster-0.3

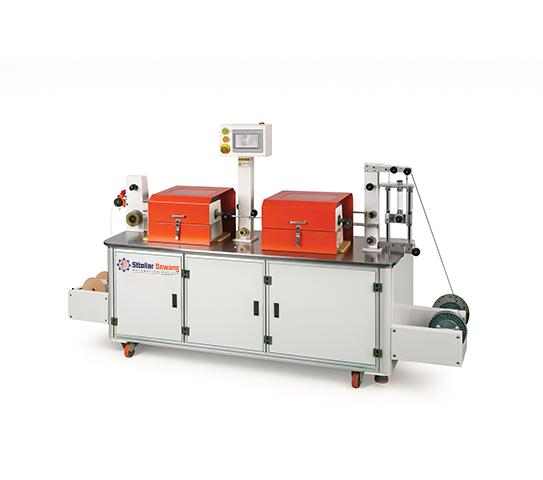

PRECISION COIL HEATING WIRE WINDING MACHINE
The WindingMaster-0.3 is designed for precision winding of heating wires and micro-diameter wires. With dual motor drive control (Servo + Stepper) and a PLC, it delivers high stability, accurate line distribution and consistent pitch control. Suitable for heating cable, PTC cable, micro heating wire coil manufacturing, new energy and industrial heating element
Precision controlled pitch & winding speed
High speed winding up to 1000 rpm
Feedback controlled servo & stepper combination drive
Intelligent HMI touch screen operation
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 XZ-C631P
Functional Modules
Model 1 Suitable for winding electronic heating wire and electric heating components
Rated Voltage
Model 1 220VAC 50Hz
Rated Power
Model 1 1.2 kW
Winding Speed
Model 1 100–3000 rpm
Suitable Heating Wire Diameter
Model 1 0.02 – 0.3 mm
Cable Pitch
Model 1 0.1 – 8 mm
Main Motor
Model 1 Servo Motor
Shaft / Traverse Motor
Model 1 High-performance Stepper Motor
PLC Brand
Model 1 FATEK (Taiwan)
HMI
Model 1 Full Color Touch Screen
Machine Dimensions (L×W×H)
Model 1 1600 × 500 × 1450 mm
Net Weight
Model 1 250 kg
Fiber Cord Diameter
Model 1 0.5 mm – 5 mm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
