New Energy High Voltage Cable Processing Machines
BusbarTrimmer-KX25

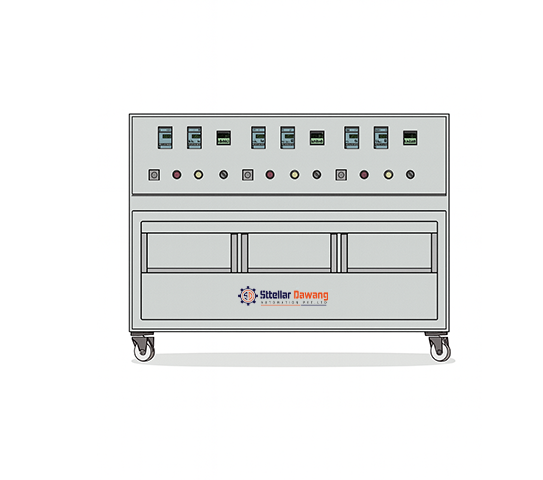

EXTRUSION PREHEATING OVEN – SINGLE-UNIT PREHEATER
This machine uses upper + lower independent heating wire structure for uniform and stable heating.It is mainly used to pre-heat extruded copper bars / extruded aluminium bars / hard or soft busbars before de-gluing.Also suitable for partial Heat-Shrink Tube pre-heating applications.
Heating Type : Upper & Lower Independent Heating
Working Mode : Timed Pre-Heating
Main Application : Extrusion Busbar Pre-Heating + Partial Heat-Shrink
Control System : Safe DC24V
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 BusbarTrimmer-KX25
Heating Method
Model 1 Upper & Lower Independent Heating
Rated Power
Model 1 7.5 kW
Voltage
Model 1 220V
Pre-Heating Time
Model 1 300 – 360 seconds (adjustable)
Net / Gross Weight
Model 1 100 kg / 140 kg
Machine Dimension (L×W×H)
Model 1 1200 × 550 × 700 mm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
