New Energy High Voltage Cable Processing Machines

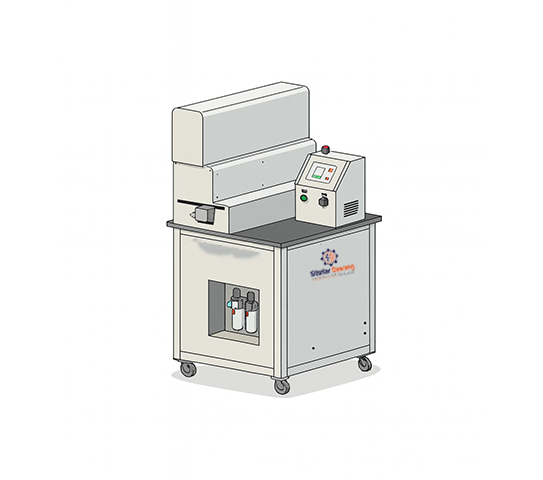

BusbarTrimmer-BJ60
THICK HEAT SHRINK TUBING / EXTRUSION / DIP COATING – SINGLE-UNIT DEGLUING STRIPPING MACHINE
This machine is specially designed for removing thick glue / insulation layer from extruded copper busbars, aluminum busbars, 3D bent bars, hard bars and soft bars after ring cutting, extrusion coating or dip coating.It uses a precision touch-screen + PLC control system with parameter setting for stripping thickness and length.
Advanced HMI System : Touch Screen + PLC + User Friendly Interface
Application Range : Thick heat shrink, extrusion coating & dip coating glue
High Accuracy : ±0.02 mm Up-Down accuracy
One-Person Operation : Manual feed + auto correction
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 BusbarTrimmer-BJ60
Stripping Thickness
Model 1 1 – 20 mm
Stripping Width
Model 1 50 mm (80/100 mm optional customization)
Stripping Length
Model 1 1 – 60 mm
Power System
Model 1 Electric
Voltage
Model 1 AC 220 V
Rated Current
Model 1 6 A
Rated Power
Model 1 1500 W
Single Stripping Time
Model 1 13 seconds
Up-Down Accuracy
Model 1 ±0.02 mm
Pneumatic Pressure
Model 1 0.4 – 0.6 MPa
Machine Dimension (L×W×H)
Model 1 850 × 700 × 1200 mm
Net / Gross Weight
Model 1 130 kg / 160 kg
Motor
Model 1 Servo Motor
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products

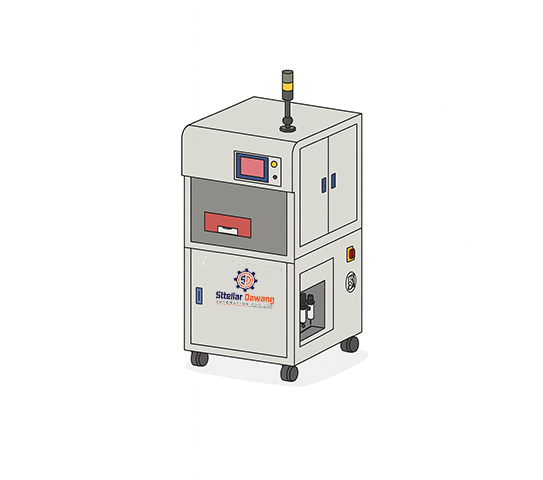

Busbartrimmer-40100 New Energy High Voltage Cable Processing Machines

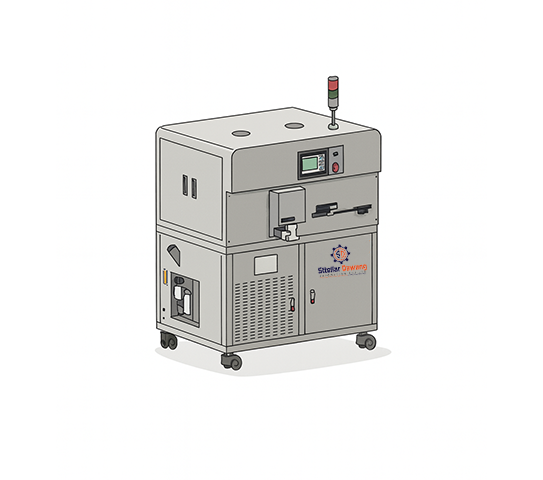

Busbartrimmer-5060 New Energy High Voltage Cable Processing Machines
