Heat Shrink Machines
HeatStream-45
HEAT SHRINK TUBE INTERMEDIA END HEAT SHRINKAGE MACHINE ( TUBE DIAMETER RANGE Ø1.0 MM TO Ø45.0 MM)
The HeatStream-45 is an Intermedia End Heat Shrinkage Machine engineered for medium to heavy processing lines. It supports large conductor cables up to 240mm² and delivers stable, uniform shrink performance. The machine provides fast cycle time supported with PID temperature precision, supporting long tube length up to 150mm
Designed for Intermedia End shrinkage applications
Supports large cable cross section up to 240mm.
High precision PID controlled temperature stability
Optional Heating mode – Induction / Hot Air
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 HeatStream-45
Input Voltage
Model 1 220V AC
Thermal Temperature
Model 1 Max 650°C
Section Area of Wire
Model 1 Max 240 mm²
Heating Panel Size
Model 1 120 × 300 mm
Outer Diameter of Tube
Model 1 Max 45 mm
Length of Tube
Model 1 Max 150 mm
Temperature Control
Model 1 PID Controller with Digital Display
Shrinkage Method
Model 1 Induction / Hot Air (Configurable)
Cycle Time
Model 1 5 – 15 Seconds (Adjustable)
Cooling System
Model 1 Integrated Air Cooling
Safety Features
Model 1 Overheat Protection, Emergency Stop
Machine Dimensions (L×W×H)
Model 1 800 × 450 × 600 mm
Weight
Model 1 Approx. 65 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products
HeatStream-10 Pro Heat Shrink Machines

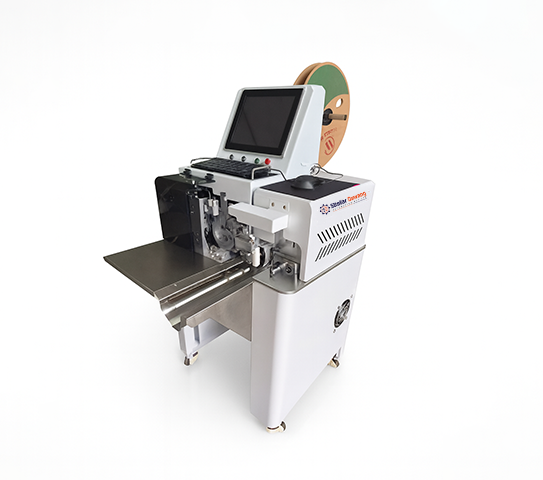

HeatStream-20 Pro Heat Shrink Machines
