Heat Shrink Machines

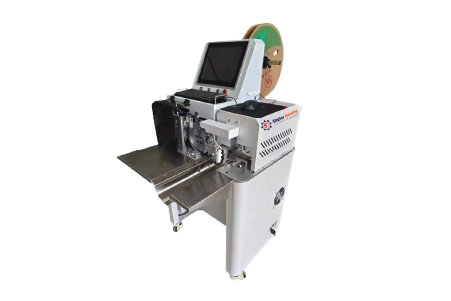

HeatStream-20 Pro
WIRE HARNESS HEAT SHRINK TUBE CUTTING, LOADING, AND HEATING MACHINE ( TUBE DIAMETER RANGE Ø1.0 MM TO Ø8 MM / LENGTH- 5 MM – 50 MM )
The HeatStream-20 Pro is an integrated machine that cuts, loads, and heat-shrinks tubes, improving efficiency and reducing manual work in wire harness and cable processing.
Fully Automated Process.
Automatically feeds, cuts, positions, and heat-shrinks the tube—eliminating manual operations and improving efficiency.
High Efficiency
Processes 700–1200 pcs/hour (up to 1500 pcs/hour depending on product), saving time and labor costs.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 HeatStream-20 Pro
Available Tube Diameter
Model 1 1–8 mm (others on request)
Available Tube Length
Model 1 5–50 mm (recommended difference ≤ 5 mm)
Tube Length Tolerance
Model 1 ± 0.3 mm
Tube Positioning Tolerance
Model 1 ± 0.2 mm
Production Rate
Model 1 700–1200 pcs/hour
Yield
Model 1 99%
Compressed Air Supply
Model 1 0.5 – 0.6 MPa
Power Supply
Model 1 220/110 V
Power Consumption
Model 1 1000 W
Dimensions (L × W × H)
Model 1 70 × 80 × 125 cm
Weight
Model 1 ~200 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
