Heat Shrink Machines
HeatStream-15 Plus

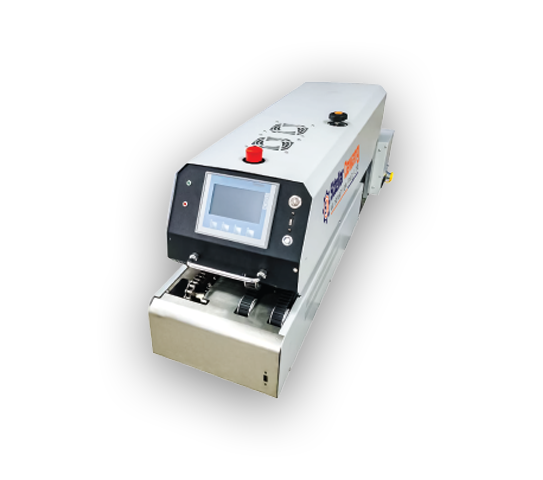

HEAT SHRINK TUBE CONVEYOR OVEN SLEEVES BELT HEATER PROCESSING MACHINE ( TUBE DIAMETER RANGE Ø1.0 MM TO Ø15.0 MM)
B-Heater-II-A belt type heat shrink machine is designed for fast and uniform heat shrinking for a wide range of cable end sleeves. The continuous belt movement ensures consistent heating quality.
Belt conveyor feeding for continuous production
High temperature heating up to 600 °C for fast shrink response
Supports 70/90mm tube lengths and up to Ø15mm tubes
Uniform thermal distribution across 100×300mm panel
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 HeatStream-15 Plus
Application Field
Model 1 Heat shrinking of wire ends, cable ground wires, and pre-cut heat-shrink tubes
Thermal Temperature
Model 1 Max. 600 °C
Input Voltage
Model 1 AC 220V
Tube Length Capacity
Model 1 Max. 70 / 90 mm
Heating Panel Size
Model 1 100 × 300 mm
Maximum Tube Outer Diameter
Model 1 Up to 15 mm
Belt Moving Speed
Model 1 0 – 3 m/min
Belt Drive Type
Model 1 Continuous belt conveyor transmission
Suitable Products
Model 1 Wire harness ends, body ground cables, insulation shrink sleeves
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
