Heat Shrink Machines

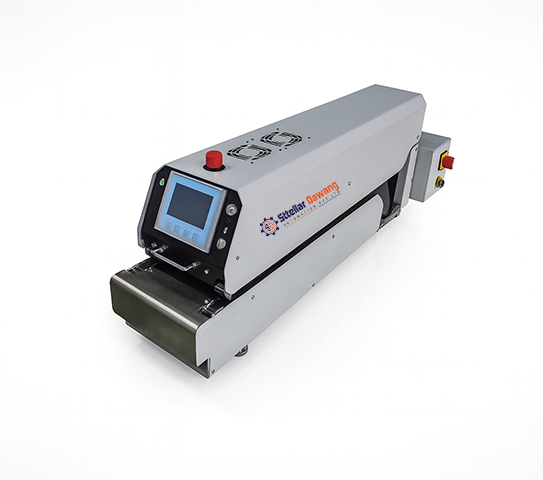

HeatStream-15
HEAT SHRINK TUBE CONVEYOR OVEN SLEEVES BELT HEATER PROCESSING MACHINE ( TUBE DIAMETER RANGE Ø1.0 MM TO Ø15.0 MM)
The HeatStream-15 Heat Shrink Tubing Conveyor Oven is a compact, efficient system for continuous heat-shrinking of tubes on wire harnesses using a smooth belt conveyor.
Suitable for Small Tubes – Handles heat-shrinkable tubes with a diameter of ≤10 mm.
Safety Mechanism – When powered on, the belt reverses before reaching the set temperature to prevent accidental misoperation.
Compact and Portable – Desk-type design with small footprint, easy to move and install.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 HeatStream-15
Available Tube Diameter
Model 1 ≤ 15 mm (others on request)
Available Tube Length
Model 1 ≤ 60 mm
Minimum Wire Harness Length
Model 1 ≥ 195 mm (lightweight)
Power Supply
Model 1 220 V, 50 Hz
Heating Power
Model 1 1000 W × 2
Thermal Temperature
Model 1 Max 600°C
Dimensions (L × W × H)
Model 1 110 × 23 × 35 cm
Weight
Model 1 40 kg
Belt Moving Speed
Model 1 0–3 mm/sec
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products
HeatStream-15 Plus Heat Shrink Machines

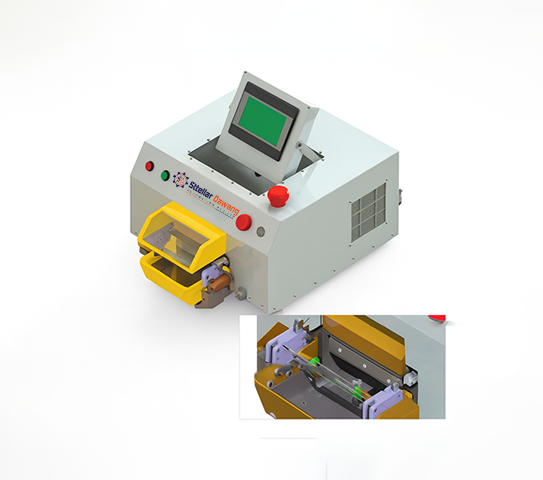

HeatStream-15H Heat Shrink Machines
