Fully Automatic Wire Processing Machines
PrimeCrimp-3252

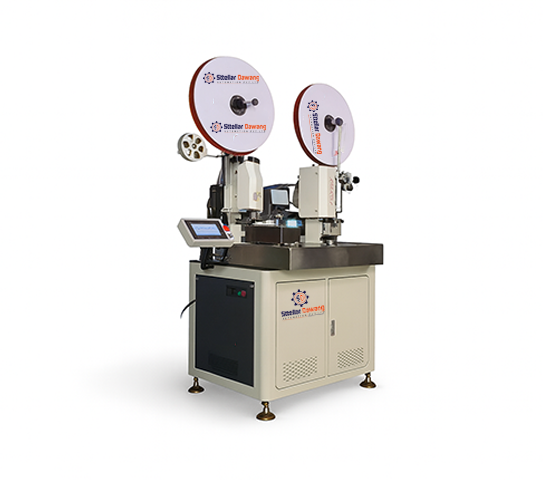

FULLY AUTOMATIC WIRE CUTTING AND BOTH SIDE CRIMPING MACHINE ( 0.3 TO 2.5 SQ MM )
Fully automatic two-end wire cutting, stripping & terminal crimping machine.Category: Cut & Strip & Crimp | Tags: Ferrule, Small single-core wire, Terminal crimping machine
Dual motor feeding to avoid the wire length issue
Can be equipped with a side/End Feed applicator
Advanced software and touch screen technology, easy to operate
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 PrimeCrimp-3252
Functions
Model 1 Cutting, Stripping, Both-End Crimping
Available Wire Size
Model 1 0.3 – 2.5 mm²
Cutting Length
Model 1 45 – 9999 mm
Length Tolerance
Model 1 ±0.2% × L
Stripping Length
Model 1 0 – 20 mm
Detection Device
Model 1 Lack wire, lack terminal, crimp detection, pressure detection
Detection System
Model 1 Wire absence, terminal presence, crimp force monitoring
Reference Efficiency
Model 1 3000 – 4000 wires/hour (100 mm length, both-end stripping & crimping)
Drive System
Model 1 Servo motors (Mitsubishi)
Air Connection
Model 1 0.4 – 0.6 MPa
Power Supply
Model 1 110/220 VAC, 50/60 Hz
Air Pressure
Model 1 0.5 – 0.6 MPa
Power
Model 1 4.5 kW
Weight
Model 1 About 320 kg
Dimensions
Model 1 120 × 60 × 200 cm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
