Fully Automatic Wire Processing Machines

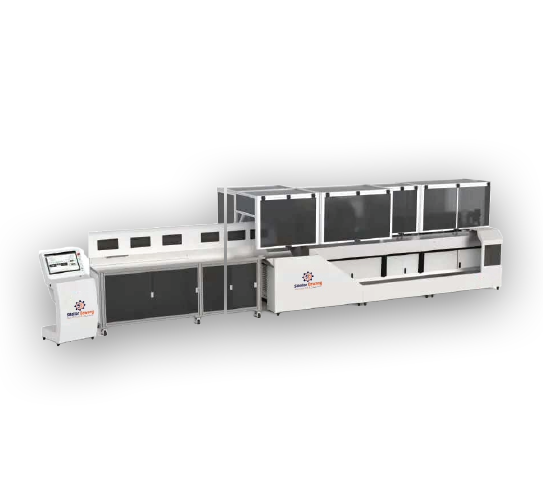

PanelMaster-6080

FULLY AUTOMATIC SERVO CONTROLLED CABLE

The PanelMaster-6080 Fully Automatic Servo-Controlled Cable Processing Machine is an advanced, high-precision system designed for complete cable harness automation. It performs cable cutting, ferrule printing, ferrule insertion, wire stripping, and crimping on both ends all in one continuous process.

Model: PanelMaster-6080
Control System: Fully Automatic Servo Controlled
Functions: Cable Cutting, Ferrule Printing, Ferrule Insertion (both ends), Wire Stripping (both ends), Crimping (both ends)
Crimping Options: Tubular Pins, Copper Lugs, Insulated Lugs.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details
Model	PanelMaster-6080
Control System	Fully Automatic Servo Controlled
Functions	Wire cutting, ferrule printing, ferrule insertion, stripping, crimping
Wire Size Range	0.50 sqmm to 4.0 sqmm
Wire Length Range	100 mm to 10,000 mm
Wire Loading Capacity	12 different wire types
Terminal Loading Capacity	12 different terminal types (Loose & Chain)
Supported Terminal Types	Tubular pins, Copper lugs, Insulated lugs, 4-indent terminals
Automation Integration	NES & SCADA systems
Material Empty Alarm	Yes
Special Feature	Press station for ferrule holding during single-end crimping
Power	12 kW
Input	AC 220V / 50Hz
No of Sleeves	Up to 6 ferrule number sleeves
Air Supply	0.6 – 0.7 MPa
Protection Cover	Yes (optional)
Data Transfer	Master data can transfer from production computer in XL
Max Length No Print	Up to 40 characters (Alphabets, Numerics & Symbols)
Max Ferrule Sleeve Length	40 mm / 80 mm optional

Model

Model 1 PanelMaster-6080

Control System

Model 1 Fully Automatic Servo Controlled

Functions

Model 1 Wire cutting, ferrule printing, ferrule insertion, stripping, crimping

Wire Size Range

Model 1 0.50 sqmm to 4.0 sqmm

Wire Length Range

Model 1 100 mm to 10,000 mm

Wire Loading Capacity

Model 1 12 different wire types

Terminal Loading Capacity

Model 1 12 different terminal types (Loose & Chain)

Supported Terminal Types

Model 1 Tubular pins, Copper lugs, Insulated lugs, 4-indent terminals

Automation Integration

Model 1 NES & SCADA systems

Material Empty Alarm

Model 1 Yes

Special Feature

Model 1 Press station for ferrule holding during single-end crimping

Power

Model 1 12 kW

Input

Model 1 AC 220V / 50Hz

No of Sleeves

Model 1 Up to 6 ferrule number sleeves

Air Supply

Model 1 0.6 – 0.7 MPa

Protection Cover

Model 1 Yes (optional)

Data Transfer

Model 1 Master data can transfer from production computer in XL

Max Length No Print

Model 1 Up to 40 characters (Alphabets, Numerics & Symbols)

Max Ferrule Sleeve Length

Model 1 40 mm / 80 mm optional

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
