Fully Automatic Wire Processing Machines

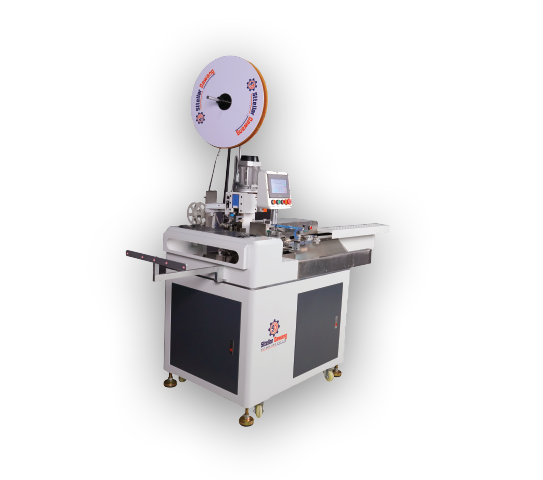

MultiCrimp-3251 Plus
FULLY AUTOMATIC FIVE WIRE CUTTING AND ONE SIDE CRIMPING SECOND SIDE TWISTING & TINNING MACHINE ( 0.3 TO 2.5 SQ MM )
Fully automatic machine for cutting, stripping, crimping, twisting & tinning up to 5 wires, with servo precision and quick-change applicator. Achieves 8,000 pcs/hour, improving accuracy and reducing labor.
Five-wire simultaneous processing – high-speed operation, up to 8,000 pcs/h
Quick change system – no need to replace rear stripping clamp for different lengths.
Dual twisting options – positive and negative twisting, speed adjustable on screen.
High precision components – Mitsubishi servo, precision screw rod double guide.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 MultiCrimp-3251 Plus
Functions
Model 1 Cutting, Stripping, Single-End Crimping, Other-End Twisting & Tinning
Available Wire Size
Model 1 0.3 – 2.5 mm²
Crimping Strength
Model 1 2T
Control System
Model 1 Servo Motor + PLC + Touchscreen HMI
Cutting Length
Model 1 12 – 9999 mm
Stripping Length
Model 1 0.1 – 15 mm (customizable)
Tinning Length
Model 1 0.1 – 10 mm (customizable)
Capacity
Model 1 6,500 – 8,000 pcs/h (five wires processed at once)
Wire Capacity
Model 1 Up to 5 wires per cycle
Power Supply
Model 1 220V, 50/60 Hz
Power Consumption
Model 1 3.5 kW
Air Connection
Model 1 0.5 – 0.7 MPa
Control
Model 1 Servo
Dimensions
Model 1 1210 × 770 × 1370 mm
Weight
Model 1 450 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products

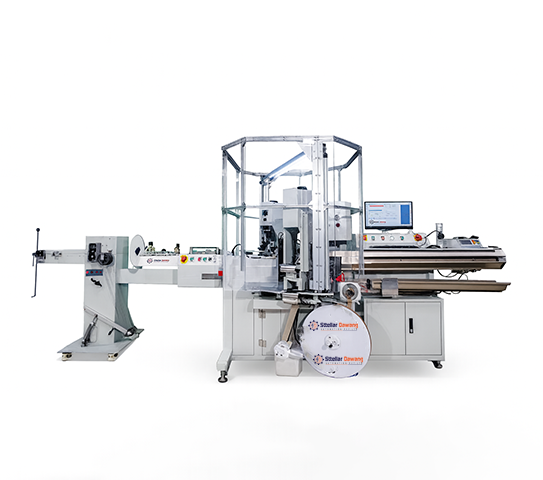

StarCrimp-354 G Fully Automatic Wire Processing Machines
