Fully Automatic Wire Processing Machines

MASTER-1+6

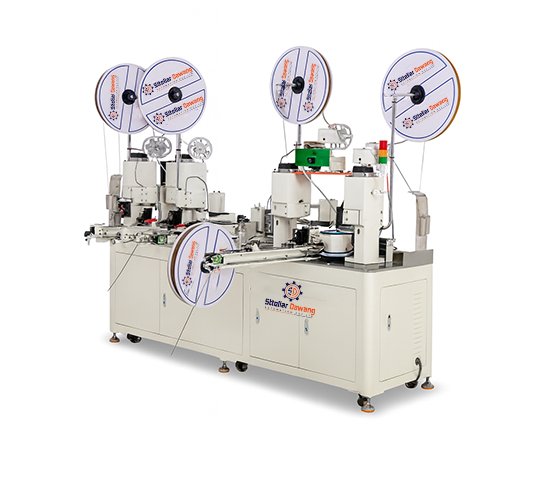

FULLY AUTOMATIC MULTI-LINE ONE PLUS SIX WIRE CUTTING, STRIPPING, AND MID JOINT CRIMPING HST INSERTION & SHRINKING BOTH ENDS MACHINE

FULLY AUTOMATIC MULTI-LINE ONE PLUS SIX WIRE CUTTING, STRIPPING, AND MID JOINT CRIMPING HST INSERTION & SHRINKING BOTH ENDS MACHINE

The Fully Automatic Multi-Line Pipe Threading and Butt Jointing Machine is designed for high-efficiency wire harness processing. It supports multi-core wire operations with advanced features like threading, butt jointing, and crimping. The machine is compatible with copper strips and standard OTP mold applications, ensuring flexibility for various production requirements.

Processes 1 to 6 wires simultaneously for higher productivity
High-precision cutting and stripping with ±0.2 mm accuracy
User-friendly interface with advanced control for easy operation

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details
Power Supply	AC 220V, 50/60Hz
Operation Modes	HMI (Touch Screen), Manual / Single Cycle / Fully Automatic
Processing Speed	Up to 600 pcs/hour (with all functions enabled)
Applicable Wire Length	Less than 100 cm
Cutting Length	80 mm – 9999 mm (Standard)
Cutting Accuracy	≤100 mm: ±[0.2 + (L × 0.002)] mm; >100 mm: ±[0.5 + (L × 0.002)] mm
Stripping Length	Front End: 0.1–8.0 mm; Rear End: 0.1–11.0 mm
Stripping Depth	Max: 5.50 mm, Resolution: 0.01 mm
Wire Specification	AWG #12 – AWG #24 (0.2 mm² – 2.50 mm²)
Air Pressure	0.5 MPa (clean, dry air)
Terminal Machine	2 Ton / 3 Ton
Detection Systems	Wire presence, knot detection, tube presence, defective die, terminal presence
Machine Dimensions	2600 mm (L) × 800 mm (W) × 1900 mm (H)
Machine Weight	Approx. 1000 kg
Power	7.5 kW

Power Supply

Model 1 AC 220V, 50/60Hz

Operation Modes

Model 1 HMI (Touch Screen), Manual / Single Cycle / Fully Automatic

Processing Speed

Model 1 Up to 600 pcs/hour (with all functions enabled)

Applicable Wire Length

Model 1 Less than 100 cm

Cutting Length

Model 1 80 mm – 9999 mm (Standard)

Cutting Accuracy

Model 1 ≤100 mm: ±[0.2 + (L × 0.002)] mm; >100 mm: ±[0.5 + (L × 0.002)] mm

Stripping Length

Model 1 Front End: 0.1–8.0 mm; Rear End: 0.1–11.0 mm

Stripping Depth

Model 1 Max: 5.50 mm, Resolution: 0.01 mm

Wire Specification

Model 1 AWG #12 – AWG #24 (0.2 mm² – 2.50 mm²)

Air Pressure

Model 1 0.5 MPa (clean, dry air)

Terminal Machine

Model 1 2 Ton / 3 Ton

Detection Systems

Model 1 Wire presence, knot detection, tube presence, defective die, terminal presence

Machine Dimensions

Model 1 2600 mm (L) × 800 mm (W) × 1900 mm (H)

Machine Weight

Model 1 Approx. 1000 kg

Power

Model 1 7.5 kW

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.

MASTER-1+6 Fully Automatic Wire Processing Machines
