Cutting Corrugated Tube Cutting Machines

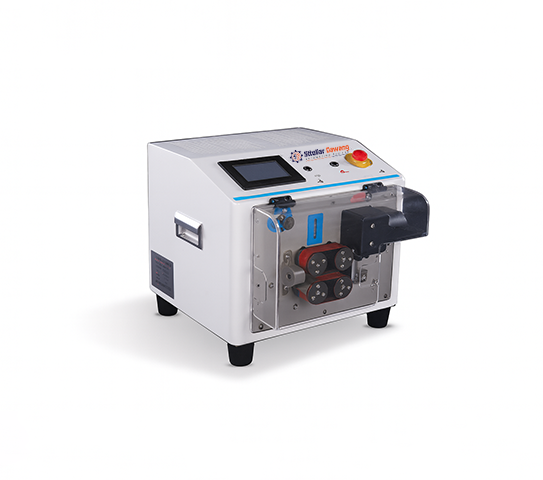

CrestCut-40

ADVANCED CORRUGATED TUBE ROTARY BLADE CUTTING MACHINE WITH PRE-FEEDER ENHANCED SPEED AND ACCURACY (DIA 6 MM TO 40 MM )

ADVANCED CORRUGATED TUBE ROTARY BLADE CUTTING MACHINE WITH PRE-FEEDER ENHANCED SPEED AND ACCURACY (DIA 6 MM TO 40 MM )

The CrestCut-40 is a high-precision cutting system engineered for plastic hoses and corrugated pipes, designed to deliver exceptional accuracy, clean finishes, and seamless integration with modern production environments.

Precision Cutting Performance: Optimized for plastic hoses and corrugated pipes, ensuring dimensional stability and clean edges.
Hybrid Servo-Stepper Drive: Guarantees ±0.5 mm feeding accuracy and high repeatability for consistent part lengths.
Industry 4.0 Integration: MES-ready hardware interface enables real-time production monitoring and data connectivity.
Programmable Control System: Embedded software allows easy storage of multiple cuttinglengths and batch parameters up to 500.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Precision Cutting

Clean and accurate cuts.

Hybrid Drive

±0.5 mm feeding accuracy.

Smart Integration

MES-ready interface.

Programmable

Stores up to 500 lengths.

Technical Specifications

Specifications	Details
Model	CrestCut-40
Cutting Diameter Range	OD 6 mm – 40 mm
Cutting Length Range	Min 5.0 mm – Max 9,999.9 mm
Cutting Precision	±2 waveform peaks per 2 m (waveform peak–valley accurate cutting)
Feeding Accuracy	Hybrid servo-stepper system ensures ±0.5 mm feeding accuracy
Cutting Speed	20 – 60 cuts/min (depends on tube length and diameter)
Cutting Method	Rotary blade — mirror finished cross-sections
Control System	Computer / embedded control with programmable length library & memory
Interfaces	MES hardware interface (optional for smart factory integration)
Power Supply	Single-phase AC 220V, 50/60 Hz
Power	4 kW
Feeder Pulling Force	300 N
Operation Interface	HMI Touch Screen

Model

Model 1 CrestCut-40

Cutting Diameter Range

Model 1 OD 6 mm – 40 mm

Cutting Length Range

Model 1 Min 5.0 mm – Max 9,999.9 mm

Cutting Precision

Model 1 ±2 waveform peaks per 2 m (waveform peak–valley accurate cutting)

Feeding Accuracy

Model 1 Hybrid servo-stepper system ensures ±0.5 mm feeding accuracy

Cutting Speed

Model 1 20 – 60 cuts/min (depends on tube length and diameter)

Cutting Method

Model 1 Rotary blade — mirror finished cross-sections

Control System

Model 1 Computer / embedded control with programmable length library & memory

Interfaces

Model 1 MES hardware interface (optional for smart factory integration)

Power Supply

Model 1 Single-phase AC 220V, 50/60 Hz

Power

Model 1 4 kW

Feeder Pulling Force

Model 1 300 N

Operation Interface

Model 1 HMI Touch Screen

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
