Cutting Corrugated Tube Cutting Machines

CorruCut-30

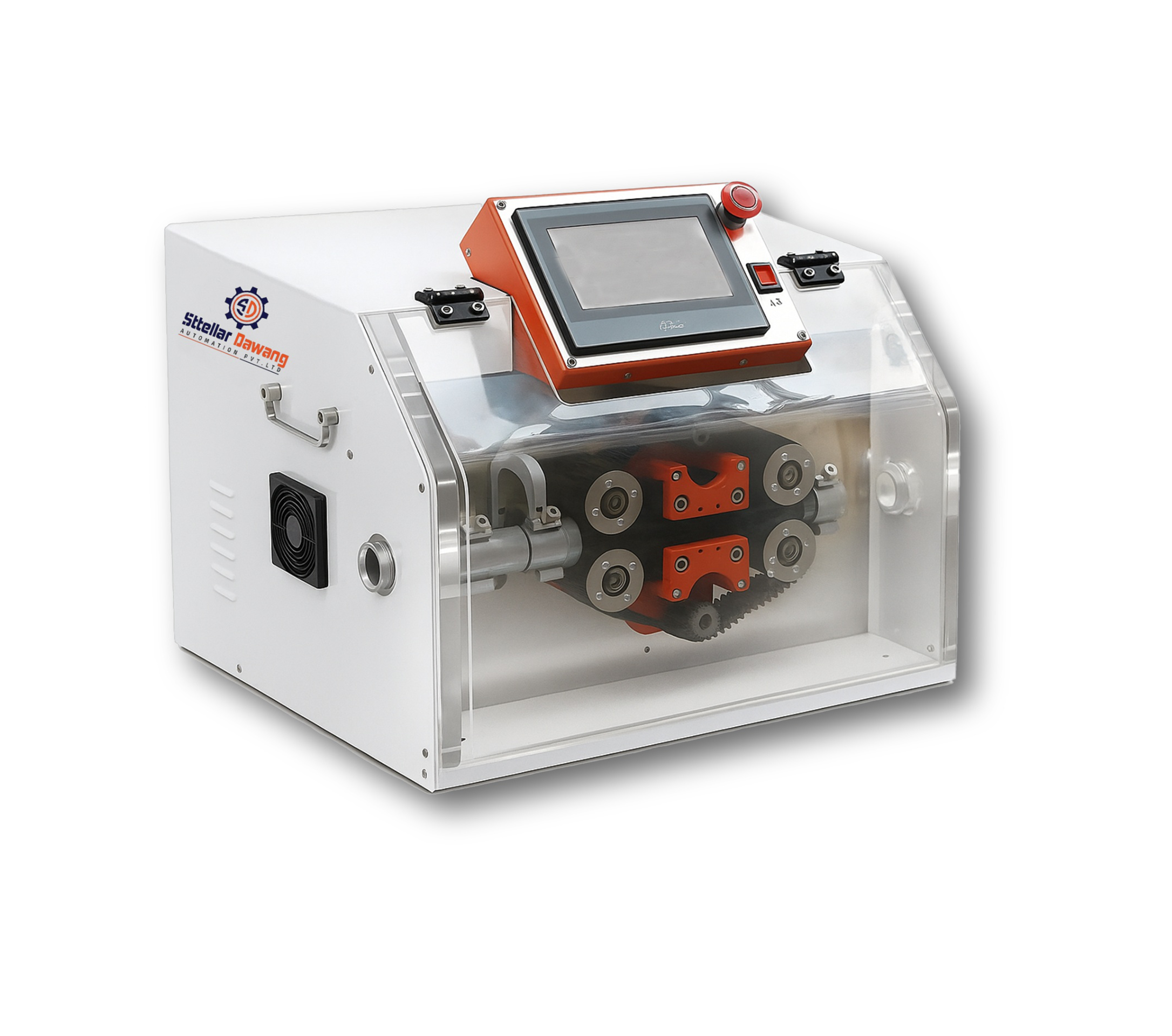

CORRUGATED TUBE CUTTING MACHINE (DIA 5MM TO 30 MM )

CORRUGATED TUBE CUTTING MACHINE (DIA 5MM TO 30 MM )

Cuts corrugated tubes 5–30 mm OD with precision, preventing cable damage. A versatile, future-proof solution for wire harness, hose, washer, tube cutting, and electrical appliance industries.Engineered for speed, safety, and consistent performance in high-demand production environments.

For corrugated tubes 5–30 mm OD.
The machine ensures precise cutting with short cycle times.
Features include a quick-change guide system.
Standard belt feeding.
A programmable cutting module for adjustable blade speed.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Tube Range

For corrugated tubes 5–30 mm OD.

Fast & Precise

Short cycle cutting.

Quick Setup

Quick-change guide system.

Programmable Cut

Adjustable blade speed with belt feeding.

Technical Specifications

Specifications	Details
Model	CorruCut-30
Operating Interface	HMI (Touch Screen)
Tube Outer Diameter Range	5 mm to 30 mm
Maximum Feed Rate	1.0 meter per second
Roller Pulling Force	200 N
Maximum Cut Length	10 mm to 9999 mm
Length Increment	0.1 mm
Length Accuracy	±0.5 mm (L × 0.02%) depending on materials
Program Memory Capacity	Up to 100 nos with all processing parameters
Noise Level	< 70 dB
Power	2 kilowatts
Power Supply	230 to 240V (50/60 Hz), optional 110V
Dimensions (L × W × H)	600 × 500 × 600 mm
Net Weight	55 kgs
Output Range (approx)	5000 nos per hour at 100 mm length

Model

Model 1 CorruCut-30

Operating Interface

Model 1 HMI (Touch Screen)

Tube Outer Diameter Range

Model 1 5 mm to 30 mm

Maximum Feed Rate

Model 1 1.0 meter per second

Roller Pulling Force

Model 1 200 N

Maximum Cut Length

Model 1 10 mm to 9999 mm

Length Increment

Model 1 0.1 mm

Length Accuracy

Model 1 ±0.5 mm (L × 0.02%) depending on materials

Program Memory Capacity

Model 1 Up to 100 nos with all processing parameters

Noise Level

Model 1 < 70 dB

Power

Model 1 2 kilowatts

Power Supply

Model 1 230 to 240V (50/60 Hz), optional 110V

Dimensions (L × W × H)

Model 1 600 × 500 × 600 mm

Net Weight

Model 1 55 kgs

Output Range (approx)

Model 1 5000 nos per hour at 100 mm length

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
