Cutting And Stripping Machines

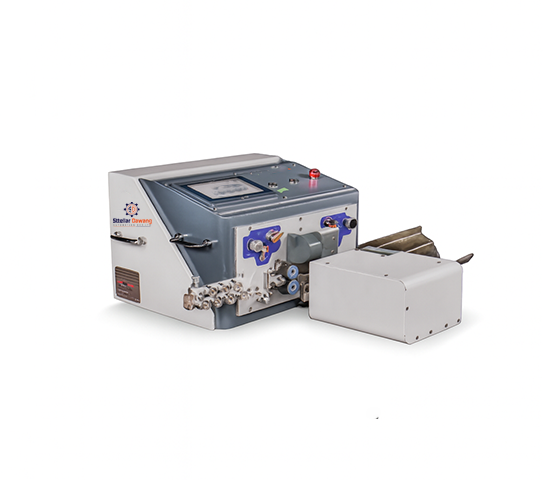

PrimeTwist-600B
AUTOMATIC CABLE CUTTING & STRIPPING & TWISTING MACHINES FOR CABLE SIZES UP TO 6 SQ.MM
Fully automatic cutting, stripping, and twisting of 0.1–6mm² wires. Ideal for automotive and appliance wire harnesses,improves speed, and saves labor.
Fully automated.
Easy to use.
Handles various cables.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Easy to Use
User-friendly interface for simple operation and setup.
Versatile Cable Handling
Supports a wide range of cable types and sizes.
Reliable Performance
Durable design ensures consistent and accurate operation.
Technical Specifications
Model
Model 1 PrimeTwist-600B
Wire Cross Section
Model 1 0.2 – 6.0 mm²
Features
Model 1 One wire stripping & twisting
Electrical Connection
Model 1 110V / 220V, 50Hz / 60Hz
Power
Model 1 300 W
Operation Interface
Model 1 4.3/6 inch C Touch screen display
Machine Dimension
Model 1 460 × 470 × 325 mm
Wire Length Range
Model 1 1 – 9999 mm
Strip Length
Model 1 Front end: 0 – 30 mm; Rear end: 0 – 8 mm
Length Accuracy
Model 1 ± (0.002 × L) mm
Intermediate Peeling Times
Model 1 16 times
Max Conduit Inside Diameter
Model 1 6 mm
Wire Material
Model 1 PVC, Teflon, Braided, Fiberglass wire
Blade Material
Model 1 Hard tungsten steel
Transport Speed
Model 1 (L = 100 mm) 4000 – 5000 pieces/hour
Driving Mode
Model 1 Four-wheel drive (silent hybrid stepper motor, 0.1 mm forward per step)
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products

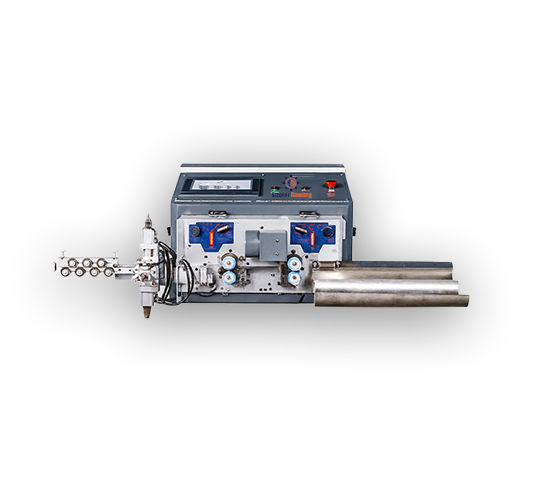

MidStrip-600 Cutting And Stripping Machines
