Fully Automated
Cuts, strips & twists efficiently.
Cutting And Stripping Machines

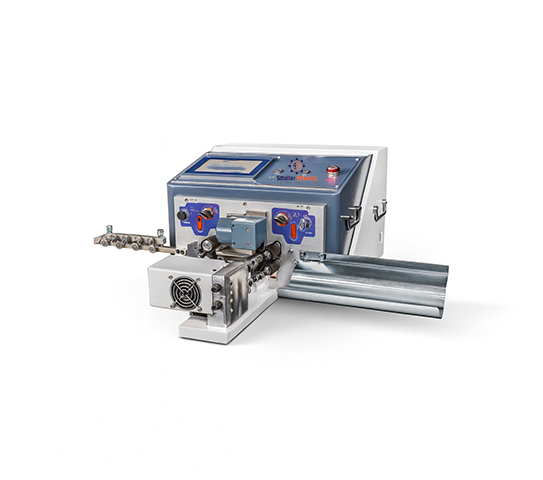

PrimeTwist-600
AUTOMATIC CABLE CUTTING & STRIPPING & TWISTING MACHINES FOR CABLE SIZES UP TO 0.25 - 6.0 SQ.MM
Fully automatic cutting, stripping, and twisting of 0.25–6mm² wires. Ideal for automotive and appliance wire harnesses, improves speed, and saves labor.
Fully automated.
Easy to use.
Handles various cables.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Easy to Use
Simple touchscreen control.
Wide Cable Support
Works with PVC & Teflon wires.
High Output
Fast production capability.
Technical Specifications
Model
Model 1 PrimeTwist-600
Wire Cross Section
Model 1 0.25 – 6.0 mm²
Features
Model 1 Cutting, stripping, and twisting in one machine
Electrical Connection
Model 1 110V / 220V, 50Hz / 60Hz
Power
Model 1 900 W
Operation Interface
Model 1 7 inch Touch Screen Display
Machine Dimension
Model 1 460 × 470 × 325 mm
Wire Length Range
Model 1 1 – 9999 mm
Strip Length
Model 1 Front: 0 – 30 mm; Rear: 0 – 15 mm
Length Accuracy
Model 1 ± (0.01 × L) mm
Intermediate Peeling Times
Model 1 16 times
Max Conduit Inside Diameter
Model 1 6 mm
Wire Material
Model 1 PVC, Teflon, Braided, Fiberglass wire
Blade Material
Model 1 Hard tungsten steel
Transport Speed
Model 1 4000 – 5000 pcs/hour (at 100 mm length)
Driving Mode
Model 1 Four-wheel drive (silent hybrid stepper motor, 0.1 mm per step)
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products

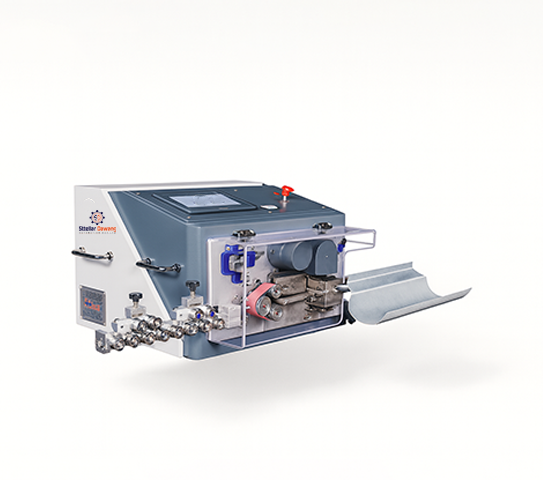

PrimeTwist-600B Cutting And Stripping Machines
