Fully Automatic
Fast and efficient processing.
Cutting And Stripping Machines

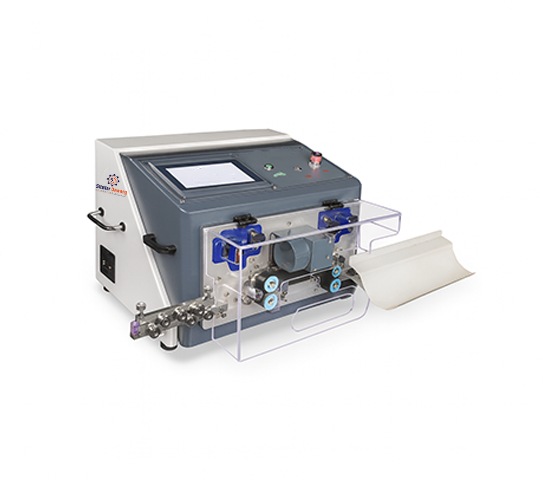

PrimeStrip-800
AUTOMATIC CABLE Cutting And Stripping Machines FOR CABLE SIZES UP TO 0.5 - 10 SQ.MM
Fully automatic, handles 0.5–10mm² wires, supports double-end and intermediate stripping, touchscreen control, durable tungsten blades, precise and efficient.
Fully automatic.
Handles 0.5–10mm² wires.
Precise cutting.
Double-end and intermediate stripping.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Wide Wire Range
Handles 0.5–10 mm² cables.
Precise Cutting
High accuracy results.
End & Middle Stripping
Flexible stripping options.
Technical Specifications
Model
Model 1 PrimeStrip-1000
Wire Cross Section
Model 1 0.5 – 10 mm²
Electrical Connection
Model 1 110V / 220V, 50Hz / 60Hz
Power
Model 1 200 W
Operation Interface
Model 1 7-inch Touch Screen Display
Machine Dimensions (L × W × H)
Model 1 460 × 470 × 325 mm
Wire Length Range
Model 1 1 – 9999 mm
Stripping Length
Model 1 Front: 0 – 30 mm; Rear: 0 – 20 mm
Length Accuracy
Model 1 ± (0.01 × L) mm
Intermediate Peeling Capability
Model 1 Up to 16 times
Maximum Diameter
Model 1 10 mm
Compatible Wire Materials
Model 1 PVC, Teflon, Braided, Fiberglass
Blade Material
Model 1 Hard Tungsten Steel
Transport Speed (100 mm wire)
Model 1 4000 – 5000 pcs/hour
Drive Mode
Model 1 Four-wheel drive with silent hybrid stepper motor
Weight
Model 1 52 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
