High Precision
Accurate cutting and stripping for thin wires.
Cutting And Stripping Machines

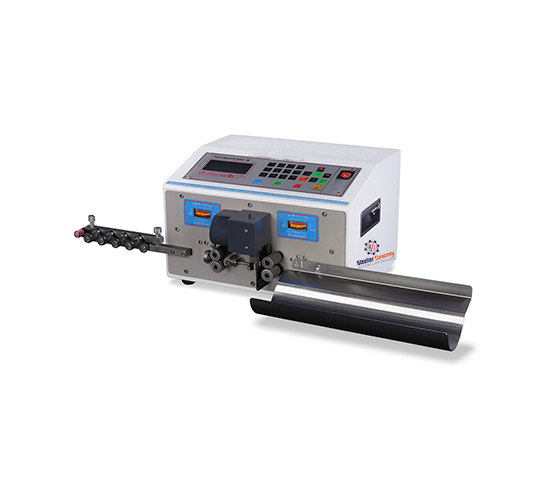

PrimeStrip-250
AUTOMATIC CABLE Cutting And Stripping Machines (0.25 TO 2.5 SQ.MM)
Efficient, precise, and consistent cutting and stripping of thin wires with advanced technology.
Precise thin wire cutting/stripping.
Adjustable lengths.
User-friendly interface.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Adjustable Lengths
Flexible stripping and cutting ranges.
User-Friendly Interface
Easy keypad operation and quick setup.
High Productivity
Fast throughput for mass production.
Technical Specifications
Model
Model 1 PrimeStrip-250
Wire Cross Section
Model 1 0.25 – 2.5 mm²
Electrical Connection
Model 1 110V / 220V, 50Hz / 60Hz
Power
Model 1 600 W
Operation Interface
Model 1 Key Pad Interface
Machine Dimension
Model 1 460 × 470 × 325 mm
Wire Length Range
Model 1 1 – 9999 mm
Strip Length
Model 1 Front: 0 – 30 mm; Rear: 0 – 15 mm
Length Accuracy
Model 1 ± (0.01 × L) mm
Intermediate Peeling Times
Model 1 16 times
Wire Material
Model 1 PVC, Teflon, Braided, Fiberglass wire
Blade Material
Model 1 Hard tungsten steel
Capacity
Model 1 4000 – 5000 pcs/hour (at 100 mm length)
Driving Mode
Model 1 Four-wheel drive (silent hybrid stepper motor, 0.1 mm per step)
Rolling Pull Force
Model 1 20 Nm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
