Cutting And Stripping Machines
PrimeStrip-1600

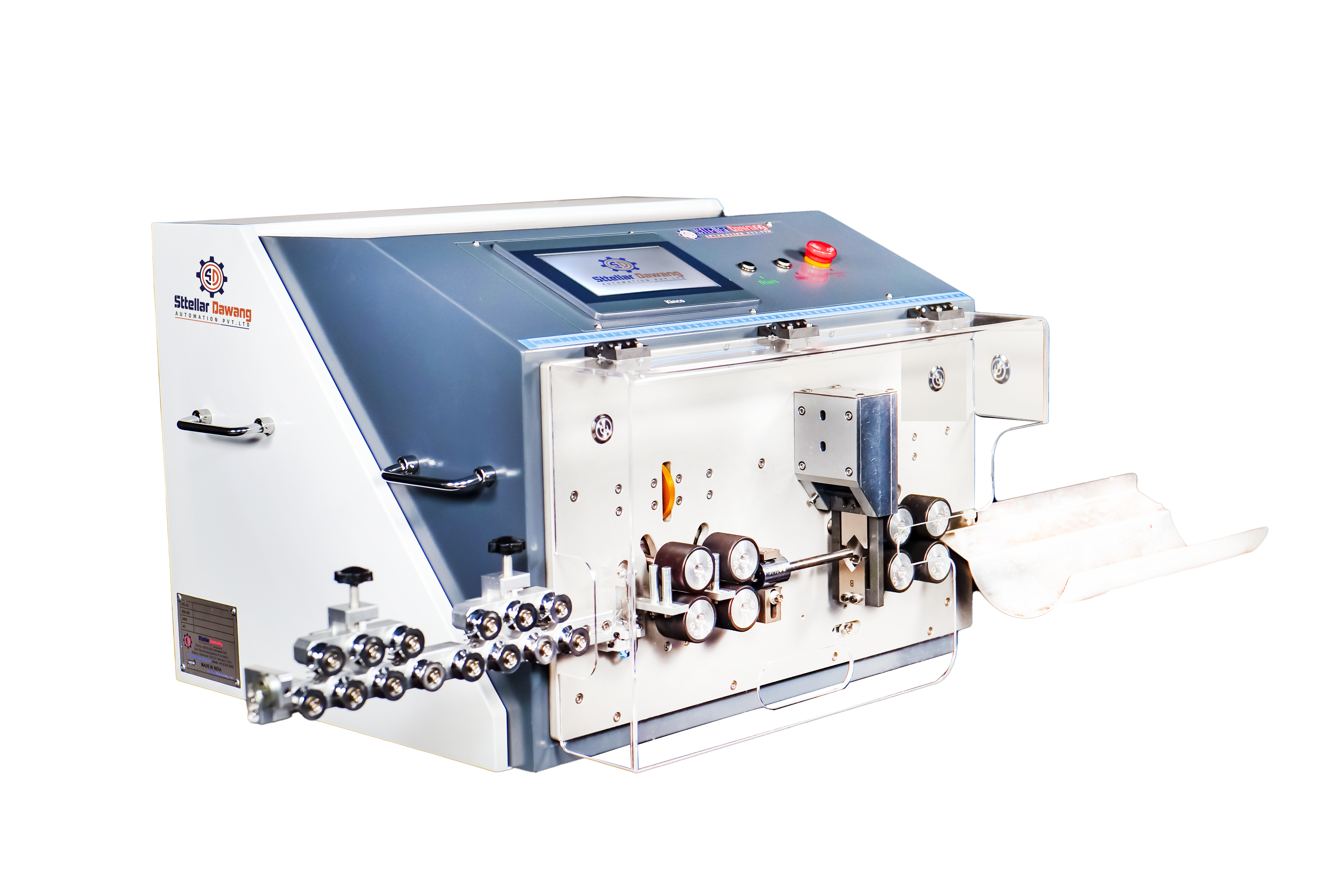

AUTOMATIC MULTICORE CABLE Cutting And Stripping Machines
The PrimeStrip-1600 Plus is a fully automatic machine designed for cutting and stripping both the jacket and inner cores of multi-core sheathed cables.It supports processing cables with up to 7 cores, making it ideal for applications requiring high precision and efficiency
High-capacity machine For 0.5–16 mm² wires.
Intermediate stripping (15 sections).
With cutting lengths up to 9999.9 mm.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Scratch-Free Feeding
Smooth belt feeding prevents damage.
Advanced Positioning
High accuracy for both inner and outer stripping.
Upgradeable Options
Multiple optional accessories available.
Technical Specifications
Model
Model 1 PrimeStrip-1600 Plus
Available Wire Size
Model 1 Outer and Inner Stripping
Max Supported Inner Cores
Model 1 7 cores
Conductor Cross-Section
Model 1 1 – 16 mm²
Cutting Length
Model 1 1 – 99999 mm
Cutting Length Tolerances
Model 1 ≤ (0.1 × L) mm
Jacket Stripping Length
Model 1 Head: 10 – 120 mm; Tail: 10 – 80 mm
Inner Core Stripping Length
Model 1 Head: 1 – 50 mm; Tail: 1 – 50 mm
Conduit Diameter
Model 1 Φ10 mm
Production Rate
Model 1 Single-core: 2300 pcs/h; Multi-core: 800 pcs/h
Display Screen
Model 1 7-inch Touch Screen
Wire Feed Method
Model 1 Belt Feeding
Drive Method
Model 1 16-wheel drive
Power Supply
Model 1 220V / 110V
Power
Model 1 1500 W
Weight
Model 1 95 kg
Dimensions
Model 1 60 × 50 × 62 cm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
