High Capacity
Designed for 0.5–16 mm² wires.
Cutting And Stripping Machines
PrimeStrip-1000

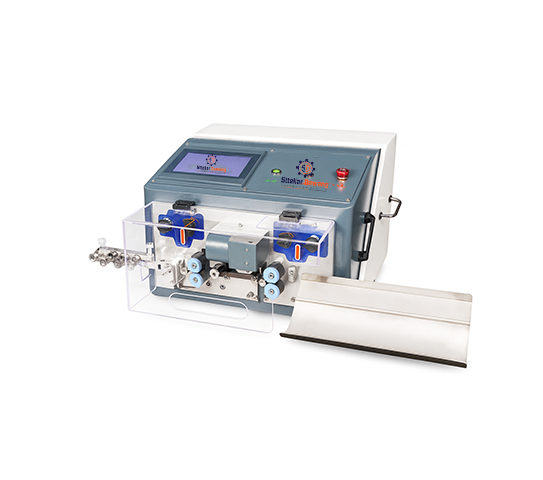

AUTOMATIC CABLE Cutting And Stripping Machines FOR CABLE SIZES UP TO 0.5 - 16 SQ.MM
Processes 0.5–16mm² wires with precise cutting, up to 15 intermediate strips, 4-wheel drive, roller feed, LCD control, and high-speed output.
High-capacity machine For 0.5–16 mm² wires.
Intermediate stripping (15 sections).
With cutting lengths up to 9999.9 mm.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Intermediate Stripping
Supports up to 15 stripping sections.
Long Cutting Length
Handles wire lengths up to 9999.9 mm.
High Productivity
Reliable for continuous industrial use.
Technical Specifications
Model
Model 1 PrimeStrip-1600
Wire Cross Section
Model 1 0.5 – 16 mm²
Wire Feed Method
Model 1 Roller Feeding
Electrical Connection
Model 1 110V / 220V, 50Hz / 60Hz (110V Optional)
Power
Model 1 1200 W
Operation Interface
Model 1 7 inch English Touch Screen Display
Machine Dimensions (L × W × H)
Model 1 460 × 470 × 325 mm
Wire Length Range
Model 1 1 – 9999 mm
Stripping Length
Model 1 Front: 0 – 100 mm; Rear: 0 – 180 mm
Length Accuracy
Model 1 ± (0.01 × L) mm
Intermediate Peeling Capability
Model 1 Up to 16 times
Maximum Conduit Inner Diameter
Model 1 Φ6 – 14 mm
Compatible Wire Materials
Model 1 PVC, Teflon, Braided, Fiberglass
Blade Material
Model 1 Hard Tungsten Steel
Transport Speed (100 mm wire)
Model 1 2000 – 2500 pcs/hour
Drive Mode
Model 1 Four-wheel drive with silent hybrid stepper motor
Weight
Model 1 52 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
