Wide Capacity
For 6–70 mm² cables.
Cutting And Stripping Machines
DuraStrip-700 Plus

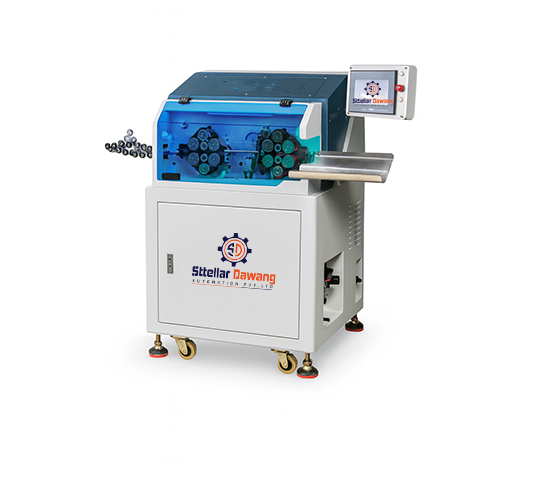

AUTOMATIC CABLE Cutting And Stripping Machines FOR CABLE SIZES UP TO 6.0 - 70 SQ.MM
Handles 6–70mm² wires with high precision, multi-layer stripping, adjustable pressure, belt feed, touchscreen control, and efficient operation for various industries.
Processes 4-70mm² wires with 3-layer stripping.
Adjustable wheel pressure
Belt feed
8 belt drive
Touchscreen control
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Adjustable Pressure
Stable feeding control.
8-Belt Drive
Smooth traction.
Touchscreen
Easy operation.
Technical Specifications
Model
Model 1 DuraStrip-700 Plus
Available Wire
Model 1 Outer and Inner Stripping
Max Supported Cores
Model 1 7 cores
Conductor Cross-Section
Model 1 6 – 70 mm²
Cutting Length
Model 1 1 – 99999 mm
Cutting Length Tolerances
Model 1 ≤ (0.01 × L) mm
Jacket Stripping Length
Model 1 Head: 10 – 260 mm; Tail: 10 – 120 mm
Inner Core Stripping Length
Model 1 Head: 1 – 50 mm; Tail: 1 – 50 mm
Wire Diameter
Model 1 Φ20 mm
Production Rate
Model 1 Single-core: 2300 pcs/h; Multi-core: 800 pcs/h
Display Screen
Model 1 7-inch Touch Screen
Wire Feed Method
Model 1 Belt Feeding
Drive Method
Model 1 16-wheel drive
Power Supply
Model 1 220V / 110V (Optional)
Power
Model 1 2 kW
Weight
Model 1 95 kg
Dimensions (L × W × H)
Model 1 70 × 64 × 48 cm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
