Wide Cable Support
Handles 4–35 mm² cables.
Cutting And Stripping Machines

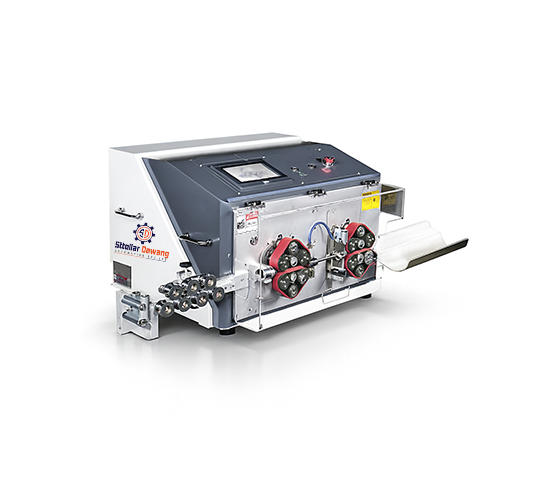

DuraStrip-350
AUTOMATIC CABLE CUTTING & STRIPPING & TWISTING MACHINES FOR CABLE SIZES UP TO 4.0 - 35 SQ.MM
Handles 4–35mm² wires with high precision, multi-layer stripping, adjustable pressure, belt feed, touchscreen control, and efficient operation for various industries.
Processes 2.5–35mm² wires with 3-layer stripping.
Adjustable wheel pressure
Belt feed
Versatile industrial applications.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Multi-Layer Stripping
Up to 3 layers.
Smooth Feeding
Belt-based scratch-free feeding.
Industrial Use
For heavy-duty applications.
Technical Specifications
Model
Model 1 DuraStrip-350
Available Wire
Model 1 4 – 35 mm²
Cutting Length
Model 1 0 – 99,999.9 mm
Stripping Length
Model 1 Head: 0 – 120 mm (customizable); Tail: 0 – 180 mm (customizable)
Wire Diameter
Model 1 Φ16 mm
Production Rate
Model 1 1000 – 2000 pcs/h
Display Screen
Model 1 7-inch Touch Screen
Feed Method
Model 1 Belt Feeding
Memory Function
Model 1 Stores up to 100 programs
Power Supply
Model 1 220V (110V Optional)
Power
Model 1 2 kW
Weight
Model 1 70 kg
Dimensions (L × W × H)
Model 1 56 × 52 × 45 cm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products

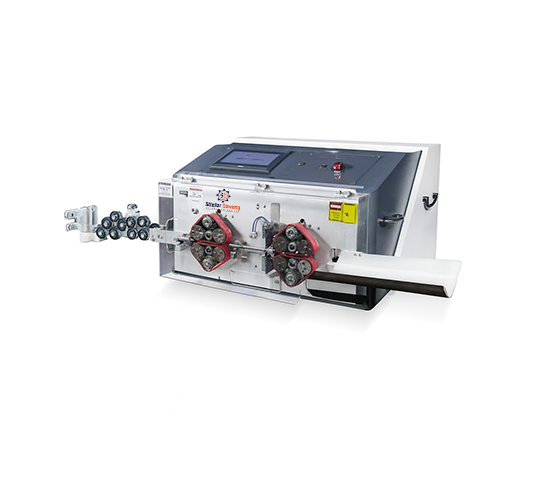

DuraStrip-350 Plus Cutting And Stripping Machines
