High Capacity
Up to 240 mm² cables.
Cutting And Stripping Machines
DuraStrip-2400
AUTOMATIC CABLE CUTTING & STRIPPING & TWISTING MACHINES FOR CABLE SIZES UP TO 35 - 240 SQ.MM
The SU Series machines provide full-automatic cutting and stripping for large-size cables, ideal for automotive power cables, battery box cables, new energy vehicle harnesses, and high-power applications.
Handles cables up to 240 mm² with long stripping lengths and high precision
Equipped with 32-wheel drive and belt feeding for smooth, scratch-free processing
7-inch touch screen control with optional feeders, stackers, or coilers for automation
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Long Stripping
High accuracy results.
Belt Feeding
Smooth cable handling.
Touchscreen
Supports automation add-ons.
Technical Specifications
Model
Model 1 DuraStrip-2400
Available Wire Diameter
Model 1 Up to 40 mm
Wire Cross-Section
Model 1 35 – 240 mm²
Cutting Length
Model 1 10 – 99,999.99 mm
Cutting Length Tolerances
Model 1 ≤ (0.1 × L) mm
Stripping Length
Model 1 Head: 1 – 1000 mm; Tail: 1 – 300 mm
Production Rate
Model 1 200 – 800 pcs/h
Display Screen
Model 1 7-inch Touch Screen
Wire Feed Method
Model 1 Belt Feeding
Power Supply
Model 1 220V / 110V (Optional)
Power
Model 1 12 kW
Weight
Model 1 450 kg
Dimensions (L × W × H)
Model 1 210 × 90 × 145 cm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products
PrimeStrip-1000 Cutting And Stripping Machines

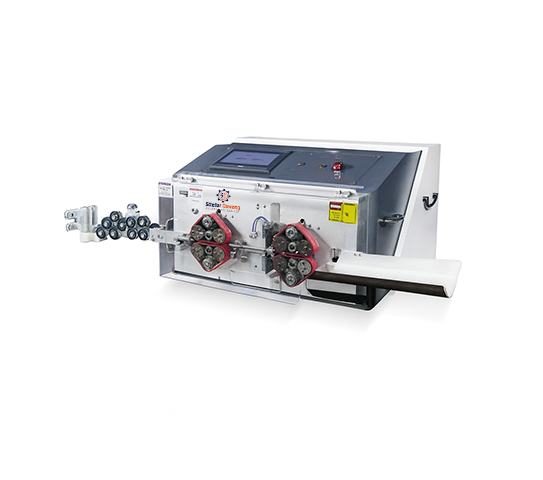

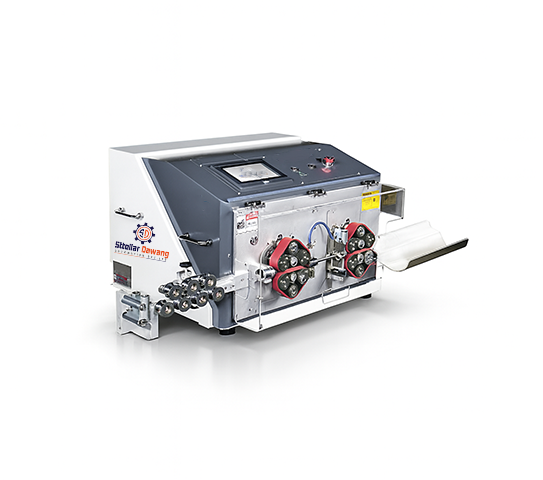

PrimeStrip-1600 Cutting And Stripping Machines
