Large Cable Capacity
Handles up to 180 mm² cables.
Cutting And Stripping Machines
DuraStrip-1800
AUTOMATIC CABLE CUTTING & STRIPPING & TWISTING MACHINES FOR CABLE SIZES UP TO 180 SQ.MM
Heavy-duty, fully automatic wire cutting and stripping machines designed for large-diameter wires and cables. They deliver high precision, speed, and flexibility for industrial-scale processing.
Supports large wire sizes up to 180 mm² with high-precision cutting and stripping.
Equipped with 32-wheel drive and belt feeding for stable, fast processing.
User-friendly 7-inch touch screen with customizable stripping options.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
High Precision
Accurate cutting and stripping.
Belt Feeding
Stable and fast processing.
Touchscreen Control
Customizable stripping options.
Technical Specifications
Model
Model 1 DuraStrip-1800
Available Wire Diameter
Model 1 6 – 30 mm
Wire Cross-Section
Model 1 16 – 180 mm²
Cutting Length
Model 1 1 – 99,999.99 mm
Cutting Length Tolerances
Model 1 ≤ (0.1 × L) mm
Stripping Length
Model 1 Head: 1 – 800 mm; Tail: 1 – 400 mm
Production Rate
Model 1 400 – 800 pcs/h
Display Screen
Model 1 7-inch Touch Screen
Wire Feed Method
Model 1 Belt Feeding
Power Supply
Model 1 220V / 110V (Optional)
Power
Model 1 6 kW
Weight
Model 1 240 kg
Dimensions (L × W × H)
Model 1 150 × 76 × 134 cm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products

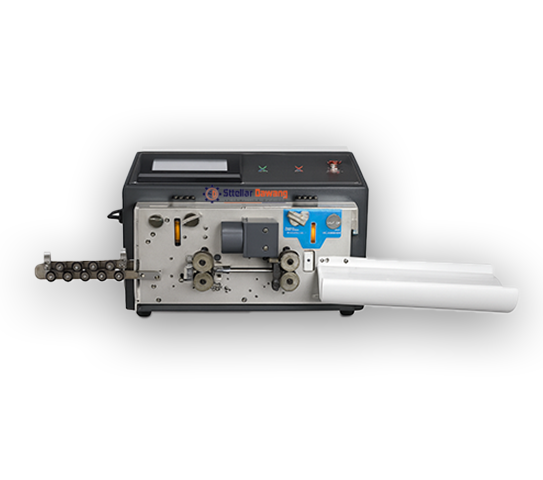

PrimeStrip-250 Cutting And Stripping Machines

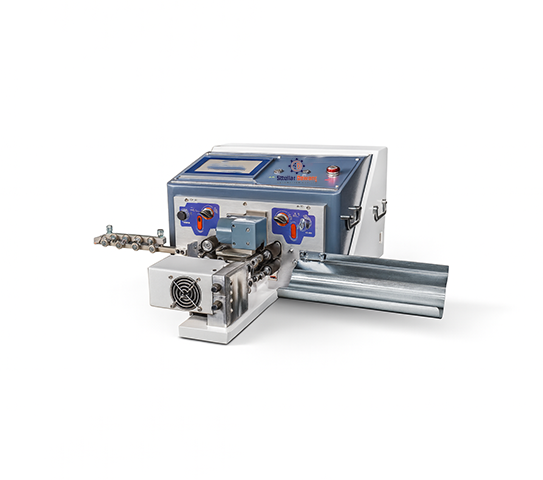

PrimeTwist-250 Cutting And Stripping Machines
