Large Cable Capacity
Handles cables up to 120 mm².
Cutting And Stripping Machines
DuraStrip-1200
AUTOMATIC CABLE CUTTING & STRIPPING MACHINES FOR CABLE SIZES UP TO 10 - 120 SQ.MM
Full-automatic cut and strip big size cable, like the automotive industry power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness.
Processes up to 120 mm² cables.
Long stripping length.
Belt feeding
High precision
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Extended Stripping Range
Supports long stripping lengths.
Belt Feeding
Smooth and stable traction.
High Precision
Accurate cutting and stripping.
Technical Specifications
Model
Model 1 DuraStrip-1200
Available Wire Diameter
Model 1 6 – 25 mm
Wire Cross-Section
Model 1 10 – 120 mm²
Cutting Length
Model 1 1 – 99,999.99 mm
Cutting Length Tolerances
Model 1 ≤ (0.1 × L) mm
Stripping Length
Model 1 Head: 1 – 400 mm; Tail: 1 – 120 mm
Production Rate
Model 1 1000 – 1800 pcs/h
Display Screen
Model 1 7-inch Touch Screen
Wire Feed Method
Model 1 Belt Feeding
Power Supply
Model 1 220V / 110V (Optional, 50Hz)
Power
Model 1 4 kW
Weight
Model 1 220 kg
Dimensions (L × W × H)
Model 1 102 × 61 × 115 cm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products

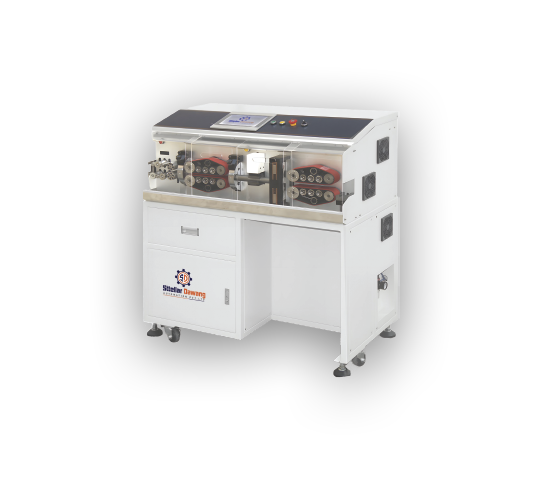

DuraStrip-1800 Cutting And Stripping Machines
