Cutting And Stripping Machines

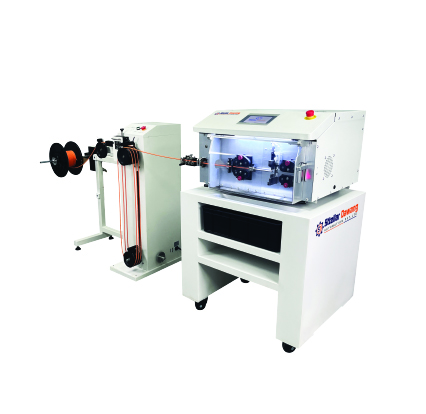

AutoStrip 8600

AUTOMATIC CABLE CUTTING & ROTARY STRIPPING MACHINE

AUTOMATIC CABLE CUTTING & ROTARY STRIPPING MACHINE

The AutoStrip 8600 is a high-performance, efficient, and modular cable cutting & stripping system designed for maximum versatility. It provides precise and repeatable stripping quality, high processing speed, strong cutting/stripping force, and support for an extensive range of wire/cable types

Regular cutting
Full & partial stripping
Jacket stripping of multicore cables
Jacket stripping of multicore cables

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details 1	Details 2	Details 3	Details 4
Model	AutoStrip 8600 P	AutoStrip 8600 A	AutoStrip 8600 P	AutoStrip 8600 P
Max. Outer Wire Diameter	14 mm	14 mm	14 mm	14 mm
Min. Diameter Adjustment	0.01 mm	0.01 mm	0.01 mm	0.01 mm
Cable Length (Standard)	60 – 1,000,000 mm	60 – 1,000,000 mm	60 – 1,000,000 mm	60 – 1,000,000 mm
Cable Length (Short Mode)	< 60 mm	< 60 mm	< 60 mm	< 60 mm
Max. Stripping Steps	500	500	500	500
Transport Speed	3.5 m/s	2.5 m/s	2.5 m/s	2.5 m/s
Machine Weight	105 kg	110 kg	105 kg	955 kg
Max. Pull-Off Length (Left/Right)	95 mm / 95 mm	95 mm / 95 mm	95 mm / 95 mm	95 mm / 95 mm
Max. Strip Length (Left/Right)	195 mm / 195 mm	195 mm / 195 mm	195 mm / 195 mm	195 mm / 195 mm
Transport System	Belt Feed	Belt Feed	Belt Feed	Belt Feed
Left Cable Guide	Pivotal / Magnetic	Pivotal / Magnetic	Pivotal / Magnetic	Pivotal / Magnetic
Right Cable Guide	Fixed / Pneumatic	Fixed / Pneumatic	Fixed / Pneumatic	Fixed / Pneumatic
Display Screen	7-inch	7-inch	7-inch	7-inch
Operation Interface	English	English	English	English
Memory Capacity	999,999 programs	999,999 programs	999,999 programs	999,999 programs
Blade Types (Standard)	V-blades	V-blades	V-blades	V-blades
Blade Types (Optional)	Radius, Die	Radius, Die	Radius, Die	Radius, Die
Rotary Stripping Unit	Yes	Yes	Yes	Yes
Air Pressure	5–7 bar	5–7 bar	5–7 bar	5–7 bar
Power Supply	100–220 VAC ±10%	100–220 VAC ±10%	100–220 VAC ±10%	100–220 VAC ±10%
Dimensions (L × W × H)	760 × 730 × 430 mm	760 × 730 × 430 mm	760 × 730 × 430 mm	760 × 730 × 430 mm
Compatibility & Expandability	Pre-feeders, Inkjet printer	Pre-feeders, Inkjet printer	Pre-feeders, Inkjet printer	Pre-feeders, Inkjet printer

Model

Model 1 AutoStrip 8600 P

Model 2 AutoStrip 8600 A

Model 3 AutoStrip 8600 P

Model 4 AutoStrip 8600 P

Max. Outer Wire Diameter

Model 1 14 mm

Model 2 14 mm

Model 3 14 mm

Model 4 14 mm

Min. Diameter Adjustment

Model 1 0.01 mm

Model 2 0.01 mm

Model 3 0.01 mm

Model 4 0.01 mm

Cable Length (Standard)

Model 1 60 – 1,000,000 mm

Model 2 60 – 1,000,000 mm

Model 3 60 – 1,000,000 mm

Model 4 60 – 1,000,000 mm

Cable Length (Short Mode)

Model 1 < 60 mm

Model 2 < 60 mm

Model 3 < 60 mm

Model 4 < 60 mm

Max. Stripping Steps

Model 1 500

Model 2 500

Model 3 500

Model 4 500

Transport Speed

Model 1 3.5 m/s

Model 2 2.5 m/s

Model 3 2.5 m/s

Model 4 2.5 m/s

Machine Weight

Model 1 105 kg

Model 2 110 kg

Model 3 105 kg

Model 4 955 kg

Max. Pull-Off Length (Left/Right)

Model 1 95 mm / 95 mm

Model 2 95 mm / 95 mm

Model 3 95 mm / 95 mm

Model 4 95 mm / 95 mm

Max. Strip Length (Left/Right)

Model 1 195 mm / 195 mm

Model 2 195 mm / 195 mm

Model 3 195 mm / 195 mm

Model 4 195 mm / 195 mm

Transport System

Model 1 Belt Feed

Model 2 Belt Feed

Model 3 Belt Feed

Model 4 Belt Feed

Left Cable Guide

Model 1 Pivotal / Magnetic

Model 2 Pivotal / Magnetic

Model 3 Pivotal / Magnetic

Model 4 Pivotal / Magnetic

Right Cable Guide

Model 1 Fixed / Pneumatic

Model 2 Fixed / Pneumatic

Model 3 Fixed / Pneumatic

Model 4 Fixed / Pneumatic

Display Screen

Model 1 7-inch

Model 2 7-inch

Model 3 7-inch

Model 4 7-inch

Operation Interface

Model 1 English

Model 2 English

Model 3 English

Model 4 English

Memory Capacity

Model 1 999,999 programs

Model 2 999,999 programs

Model 3 999,999 programs

Model 4 999,999 programs

Blade Types (Standard)

Model 1 V-blades

Model 2 V-blades

Model 3 V-blades

Model 4 V-blades

Blade Types (Optional)

Model 1 Radius, Die

Model 2 Radius, Die

Model 3 Radius, Die

Model 4 Radius, Die

Rotary Stripping Unit

Model 1 Yes

Model 2 Yes

Model 3 Yes

Model 4 Yes

Air Pressure

Model 1 5–7 bar

Model 2 5–7 bar

Model 3 5–7 bar

Model 4 5–7 bar

Power Supply

Model 1 100–220 VAC ±10%

Model 2 100–220 VAC ±10%

Model 3 100–220 VAC ±10%

Model 4 100–220 VAC ±10%

Dimensions (L × W × H)

Model 1 760 × 730 × 430 mm

Model 2 760 × 730 × 430 mm

Model 3 760 × 730 × 430 mm

Model 4 760 × 730 × 430 mm

Compatibility & Expandability

Model 1 Pre-feeders, Inkjet printer

Model 2 Pre-feeders, Inkjet printer

Model 3 Pre-feeders, Inkjet printer

Model 4 Pre-feeders, Inkjet printer

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
