Cutting And Stripping Machines

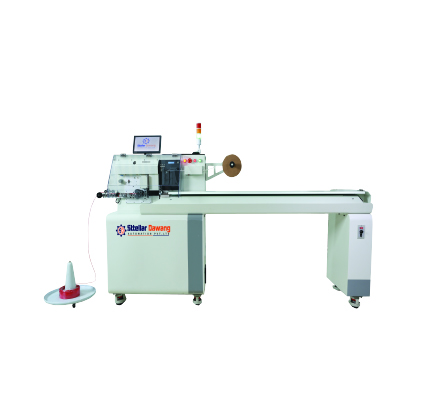

AutoPrint 4200

AUTOMATIC CABLE CUTTING & STRIPPING, DOUBLE-HEAD SIMULTANEOUS PRINTING, TUBE INSERTING & HEATING MACHINES FOR CABLE SIZES 0.5 MM² TO 6.0 MM²

AUTOMATIC CABLE CUTTING & STRIPPING, DOUBLE-HEAD SIMULTANEOUS PRINTING, TUBE INSERTING & HEATING MACHINES FOR CABLE SIZES 0.5 MM² TO 6.0 MM²

The AutoPrint 4200 is an all-in-one machine for printing, tube inserting, and wire stripping.It delivers fast, precise, and stable performance with double-head printing.Tube heating and automatic wire-size adaptation ensure high-quality, efficient processing.

All-in-One: Coding, inserting, and stripping in one automated cycle.
Self-Adaptive Wire Size: Auto adjustment for 0.5–6.0 mm² wires.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details
Model	AutoPrint 4200
Functions	Cutting, Stripping, Coding, Inserting, simultaneous double-side printing
Wire Size	0.5 mm² to 6.0 mm²
Speed	600 ± pcs/hour
Cutting Length	70 mm – 9999 mm
Stripping Length	5 mm – 20 mm
Control System	PC control, USB port
Inspection	Tube & wire run-out detection
Power Supply	AC 220V, 50/60 Hz
Air Requirements	0.4–0.6 MPa (130–180 Nl/min)
Tube Length Range	15 mm – 35 mm (settable)
Tube Heating	Yes
Printing	Double-head printing simultaneously
Tube Direction	Vertical / Opposite
Coding Position	Adjustable
Adaptive System	Auto wire-size adaptation
Consumables	Ribbon, Tube, Cutter
Dimensions (L×W×H)	860 × 390 × 400 mm
Working Temperature	5°C – 35°C
Warranty / Software	1 Year (excluding wear parts & artificial damage) / Included, lifetime upgrade

Model

Model 1 AutoPrint 4200

Functions

Model 1 Cutting, Stripping, Coding, Inserting, simultaneous double-side printing

Wire Size

Model 1 0.5 mm² to 6.0 mm²

Speed

Model 1 600 ± pcs/hour

Cutting Length

Model 1 70 mm – 9999 mm

Stripping Length

Model 1 5 mm – 20 mm

Control System

Model 1 PC control, USB port

Inspection

Model 1 Tube & wire run-out detection

Power Supply

Model 1 AC 220V, 50/60 Hz

Air Requirements

Model 1 0.4–0.6 MPa (130–180 Nl/min)

Tube Length Range

Model 1 15 mm – 35 mm (settable)

Tube Heating

Model 1 Yes

Printing

Model 1 Double-head printing simultaneously

Tube Direction

Model 1 Vertical / Opposite

Coding Position

Model 1 Adjustable

Adaptive System

Model 1 Auto wire-size adaptation

Consumables

Model 1 Ribbon, Tube, Cutter

Dimensions (L×W×H)

Model 1 860 × 390 × 400 mm

Working Temperature

Model 1 5°C – 35°C

Warranty / Software

Model 1 1 Year (excluding wear parts & artificial damage) / Included, lifetime upgrade

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
