Cutting Aluminum Foil Cutting Machines

FoilCut-500

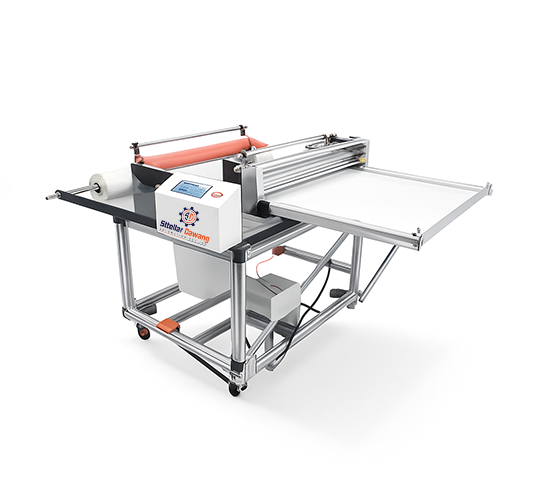

ALUMINUM FOIL MEASURING AND CUTTING MACHINE (500MM)

ALUMINUM FOIL MEASURING AND CUTTING MACHINE (500MM)

High-speed automatic cutter for foils, films, and fabrics. Delivers up to 100 sheets/min with precise length control. Handles aluminum, copper, PVC, PE, non-woven, wallpaper, and more. Comes with a free 15–20 kg alloy decoiler for smooth operation.

A high-precision cutter with 100 cuts/min speed.
0.5 mm accuracy.
support for complete or kiss-cut.
Equipped with PLC + servo control automatic unwinding.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Fast Cutting

Up to 100 cuts per minute.

High Accuracy

0.5 mm precision.

Flexible Cutting

Supports complete and kiss-cut.

Smart Automation

PLC + servo control with automatic unwinding.

Technical Specifications

Specifications	Details
Model	FoilCut-500
Operating Interface	HMI (Touch Screen)
Maximum Material Width	500 mm
Cutting Precision	0.5 mm
Motor	2 servo motors
Maximum Thickness	0.5 mm
Maximum Feed Rate	1.0 meter per second
Roller Pulling Force	300 N
Maximum Cut Length	10 mm to 9999 mm
Length Increment	0.1 mm
Length Accuracy	±0.5 mm (L × 0.02%) depending on materials
Program Memory Capacity	Up to 100 nos with all processing parameters
Noise Level	< 70 dB
Power	2 kilowatts
Power Supply	230 to 240V (50/60 Hz) (optional 110V)
Dimensions (L × W × H)	450 × 405 × 600 mm
Net Weight	75 kgs
Output Range (approx)	1000 nos per hour at 100 mm length and single line

Model

Model 1 FoilCut-500

Operating Interface

Model 1 HMI (Touch Screen)

Maximum Material Width

Model 1 500 mm

Cutting Precision

Model 1 0.5 mm

Motor

Model 1 2 servo motors

Maximum Thickness

Model 1 0.5 mm

Maximum Feed Rate

Model 1 1.0 meter per second

Roller Pulling Force

Model 1 300 N

Maximum Cut Length

Model 1 10 mm to 9999 mm

Length Increment

Model 1 0.1 mm

Length Accuracy

Model 1 ±0.5 mm (L × 0.02%) depending on materials

Program Memory Capacity

Model 1 Up to 100 nos with all processing parameters

Noise Level

Model 1 < 70 dB

Power

Model 1 2 kilowatts

Power Supply

Model 1 230 to 240V (50/60 Hz) (optional 110V)

Dimensions (L × W × H)

Model 1 450 × 405 × 600 mm

Net Weight

Model 1 75 kgs

Output Range (approx)

Model 1 1000 nos per hour at 100 mm length and single line

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
