ShieldBTW-60

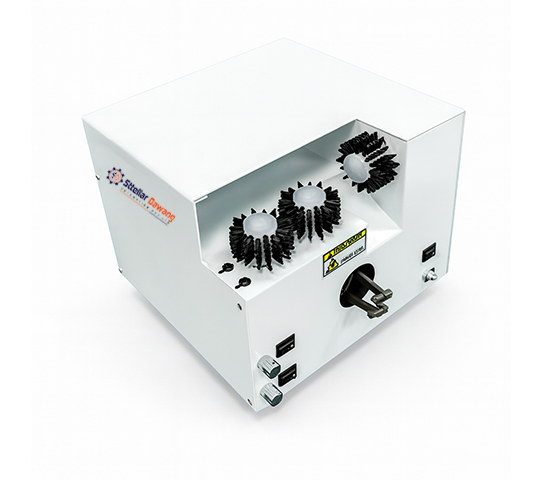

WHX CABLE SHIELD BRAID BRUSHING AND TWISTING MACHINE
This machine is specially designed for brushing and twisting the braided shielding layer of shielded cables. It accurately aligns, straightens and twists the braid ends to achieve uniform shape, ensuring smooth and reliable subsequent processes such as terminal crimping and tinning.
Professional equipment for shield cable braid brushing & twisting
Ensures uniform, neat braid finish for stable downstream processing
Adjustable twisting length from 5 to 60 mm
Touchscreen HMI for simple parameter setting and changeovers
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 ShieldBTW-60
Equipment Model
Model 1 WHX Cable Shield Braid Brushing & Twisting Machine
Equipment Air Pressure
Model 1 1.5–2.5 kg/cm²
Power Supply
Model 1 AC220V / 50Hz
Power Consumption
Model 1 10W
Working Length Range
Model 1 5–60mm
Applicable Cable Size Range
Model 1 0.1–2mm²
Machine Dimensions (L×W×H)
Model 1 340 × 190 × 170 mm
Net Weight
Model 1 12 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products
SDC-I-PEX Customize Fully Automatic Wire Processing And Housing Insertion Machines

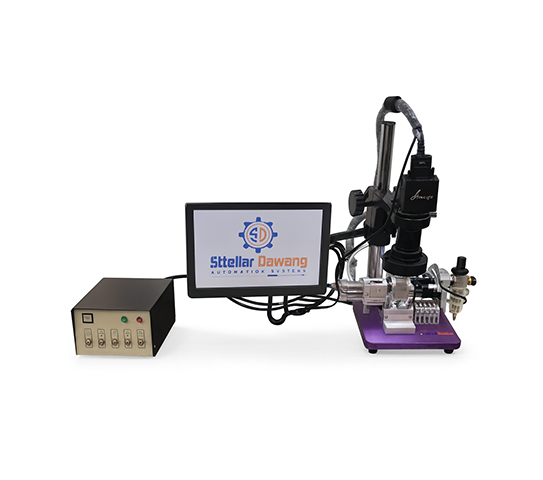

SDC-I-PEX-CCD Customize Fully Automatic Wire Processing And Housing Insertion Machines
